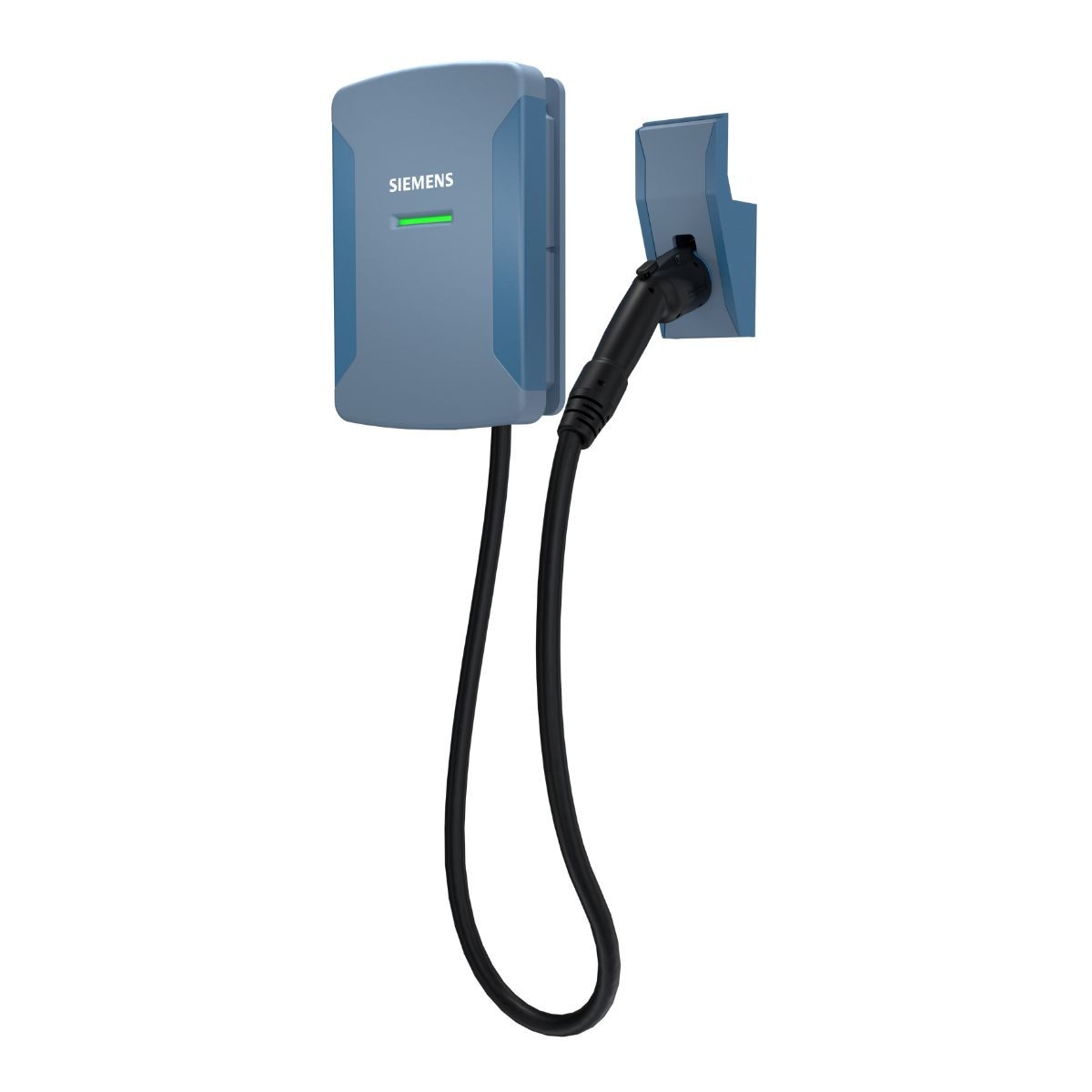

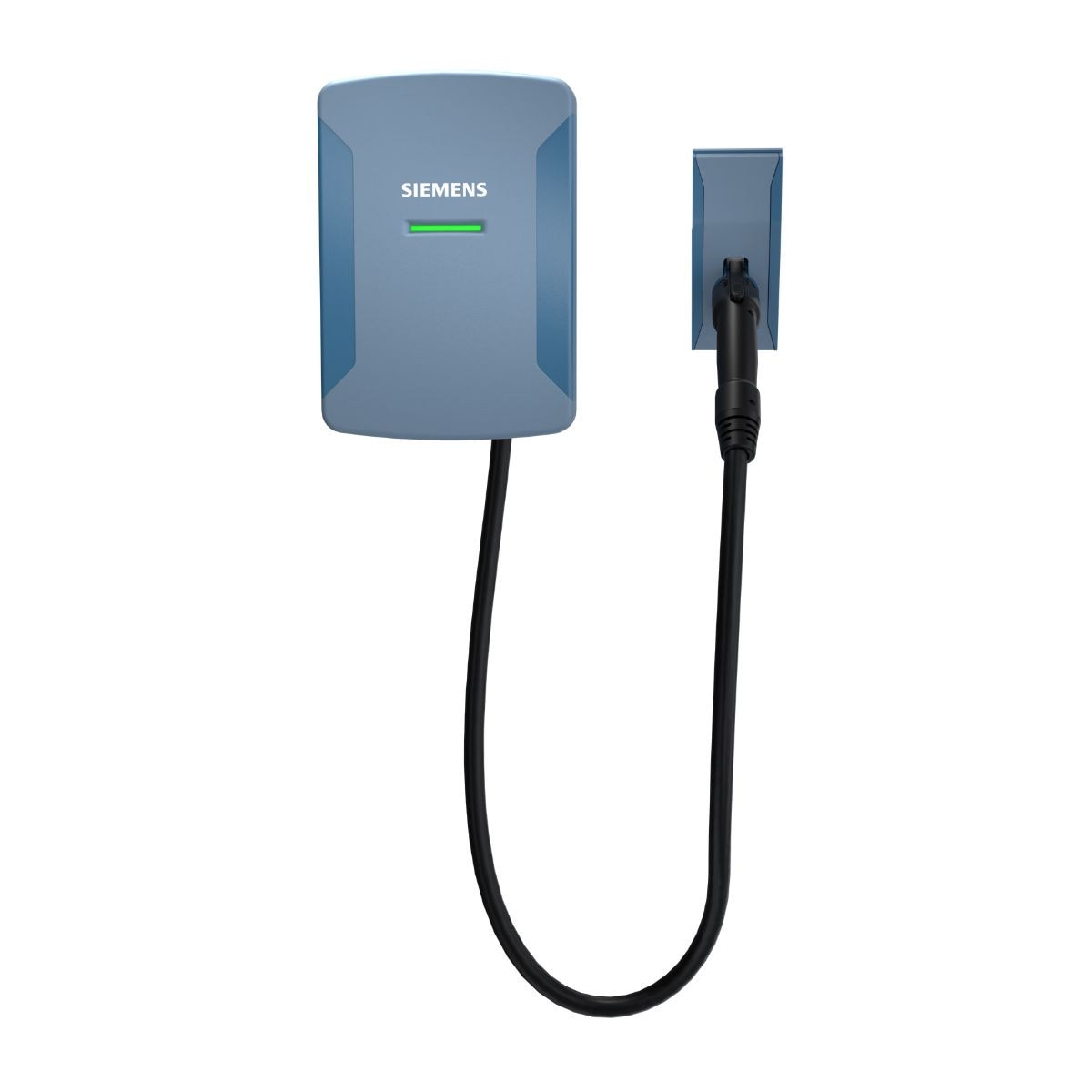

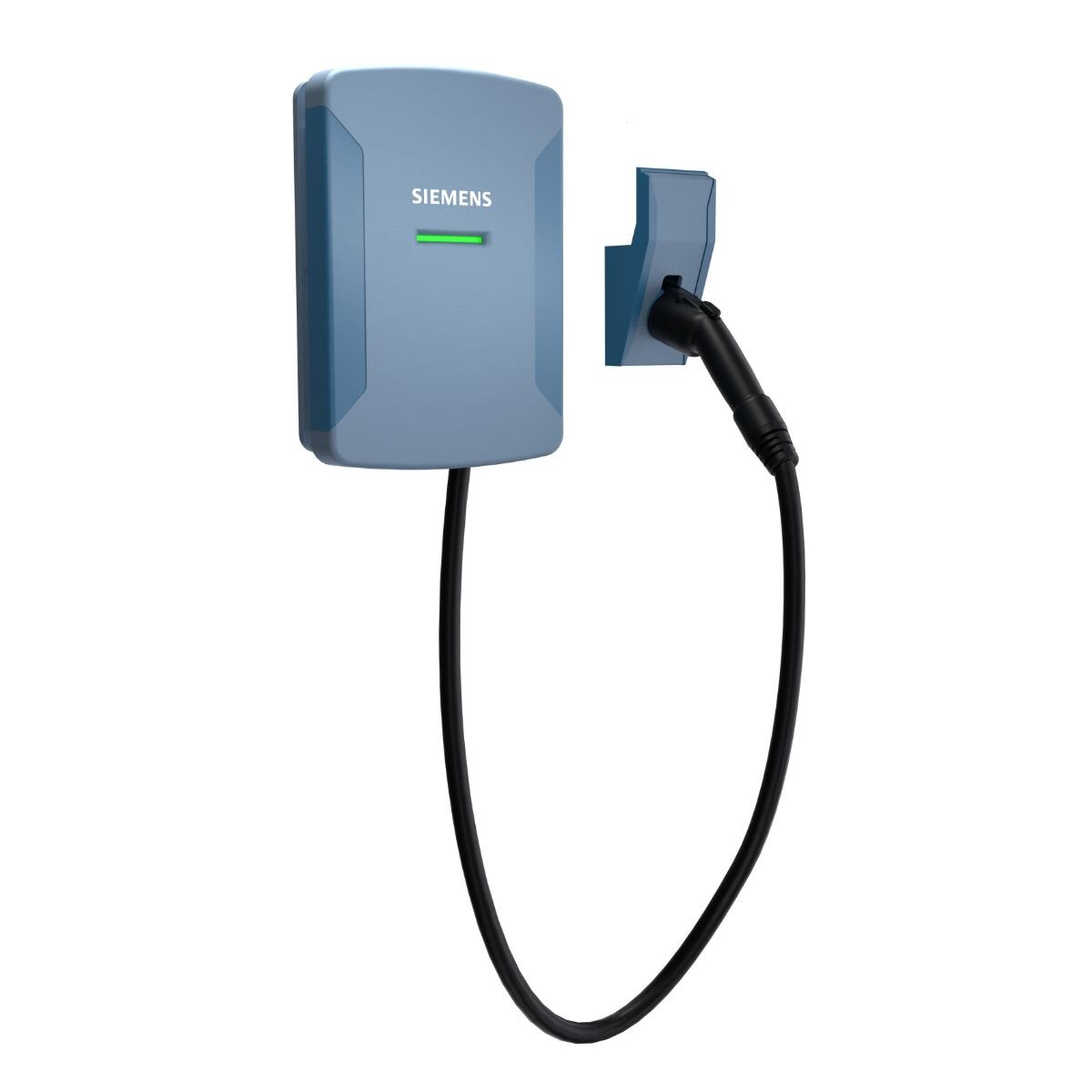

Siemens VersiCharge Blue 80A AC UL Commercial Gen 3 EV Charger – Buy America
Details
The Siemens VersiCharge Blue 80A AC UL Commercial Gen 3 EV Charger is a high-performance Level 2 AC charger built for demanding commercial environments. With up to 19.2 kW of output, it supports fast and efficient charging for electric school buses, medium-duty trucks, and fleet vehicles. This Buy America compliant unit is manufactured in the United States and features robust connectivity, embedded energy metering, and remote management via Siemens software.
Key Specifications
- Manufacturer: Siemens
- Series: VersiCharge Blue
- Model: 8EM1315-7BG16-1FH2
- Product Type: Level 2 AC EV Charger
- Charging Mode: AC Level 2
- Output: 80A / up to 19.2 kW
- Power Supply: 120/208V or 120/240V AC, 60 Hz
- Breaker Required: 100A
- Rated Current Settings: 12A, 16A, 32A, 40A, 48A, 64A, 80A
- Wire Size: 3 AWG, 194°F rated
- Connectivity: Wi-Fi, Cellular
- Protocol: OCPP 1.6J, ISO15118-2 HW-ready
- Access Control: RFID
- Mounting: Wall or Pedestal
- Cable Length: 24 ft
- Enclosure Rating: NEMA 4 / IK10
- Certifications: UL Listed, Energy Star, Energy Star Connected
- Compliance: Buy America
- Energy Metering: Embedded, ±2% accuracy
- Software: Sifinity Go / Sifinity Setup
- Software Upgrade: Over-the-air (OTA)
- Dimensions: 16.8" H × 11.6" W × 4.2" D
- Weight: 27 lb
- Operating Temperature: -40°F to 122°F (derating above 122°F)
- Operating Altitude: Up to 6,562 ft
