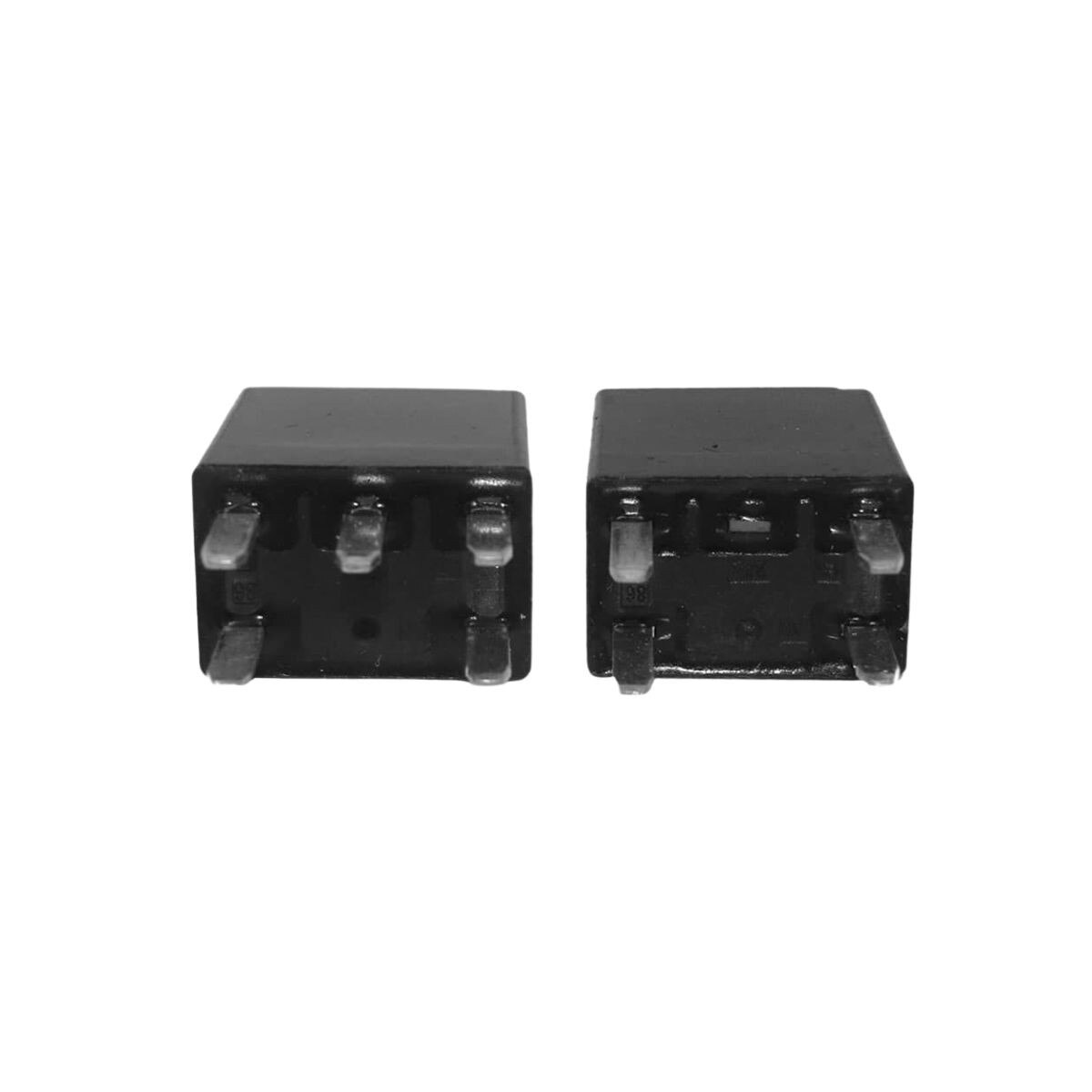

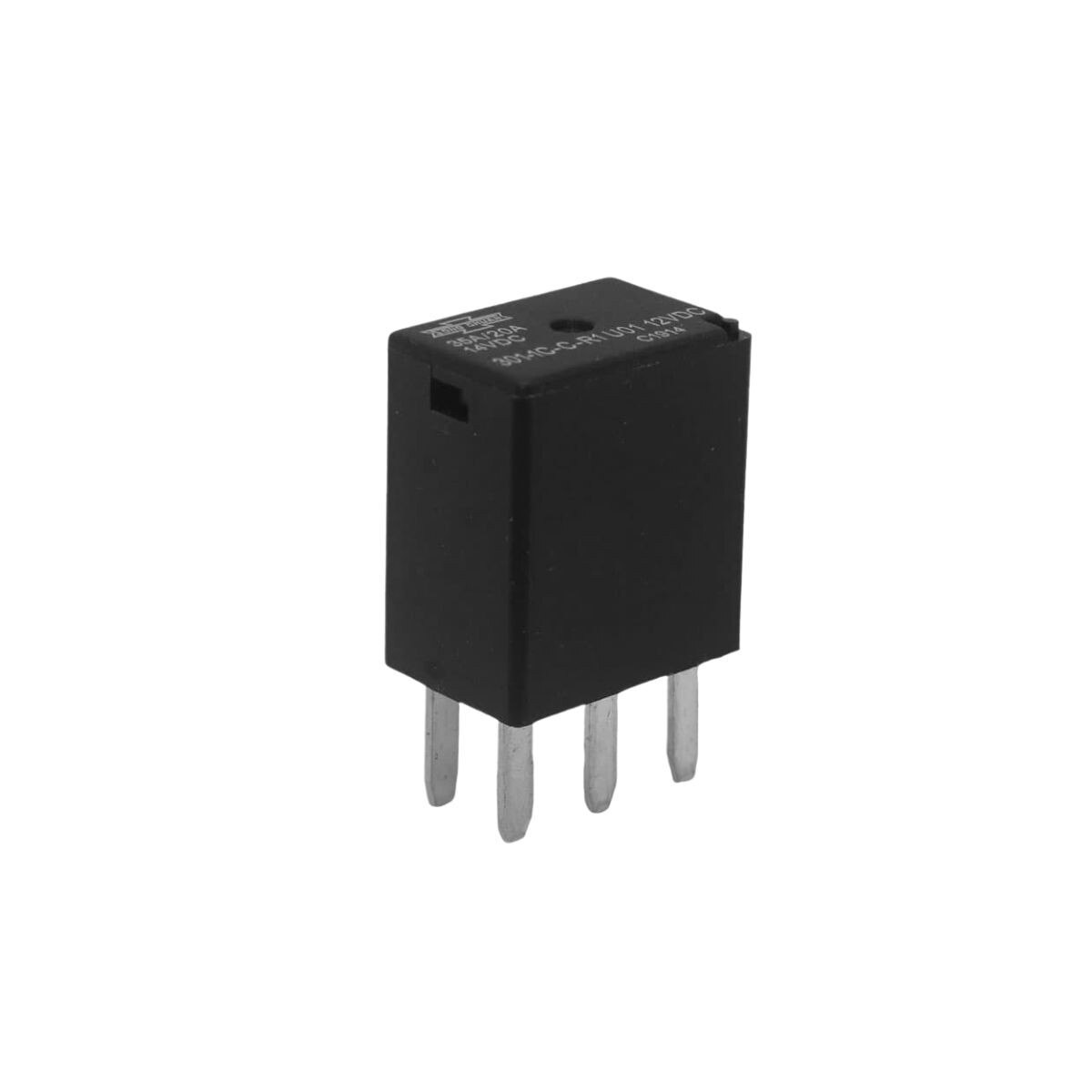

Song Chuan 301 Micro Relay – SPST, 12VDC, 35A
Details
The Song Chuan 301-1A-C-R1-U03-12VDC Automotive Micro Relay is a compact, high-current relay designed for automotive and industrial applications. Featuring a SPST (1 Form A) contact configuration, it supports up to 35A resistive load at 14VDC. The 12VDC coil operates at 1.2W with built-in resistor suppression. Its ISO 280 footprint and 4-pin layout make it compatible with popular relay series including VJ28, G8V, and HFV9. RoHS and ELV compliant, this relay is ideal for use in harsh environments with an operating temperature range of -40°C to 125°C.
Key Specifications
- Manufacturer: Song Chuan
- Series: 301
- Model: Automotive Micro Relay
- Part Number: 301-1A-C-R1-U03-12VDC
- Contact Configuration: SPST (1 Form A)
- Contact Rating: 35A @ 14VDC (NO)
- Coil Voltage: 12VDC
- Coil Resistance: 123 Ohms
- Coil Current: 97.5 mA
- Power Consumption: 1.2W
- Mounting Style: Plug-in (ISO 280 footprint)
- Operating Temperature: -40°C to 125°C
- Suppression: Built-in resistor
- Certifications: RoHS Directive 2011/65/EU, ELV Directive 2000/53/EC
- Competitor Series: VJ28, G8V, HFV9
