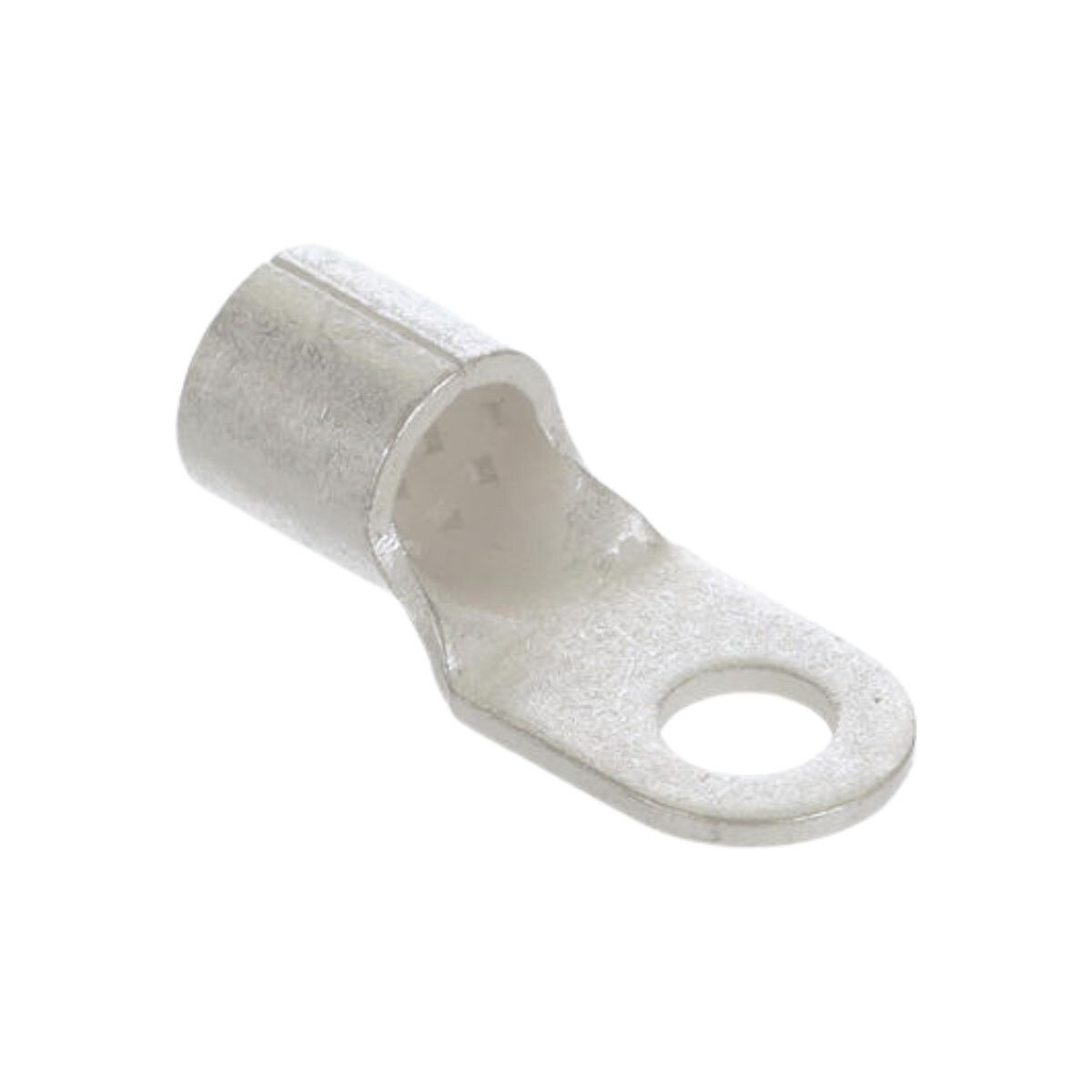

Molex VersaKrimp 191930309 – Ring Terminal, 2 AWG, 5/16" Stud
Details
The Molex 191930309 VersaKrimp Ring Tongue Terminal is designed for secure termination of 2 AWG wire in high-current applications. Part of the 19193 series, this uninsulated terminal features a closed brazed barrel for reliable crimp or compression connections. Made from tin-plated copper, it supports stud size 5/16" (M8) and offers excellent conductivity and mechanical strength. UL and CSA certified for industrial-grade performance.
Key Specifications
- Manufacturer: Molex
- Product Line: VersaKrimp
- Series: 19193
- Part Number: 191930309
- Product Type: Ring Terminal
- Wire Size: 2 AWG (35.00 mm²)
- Stud Size: 5/16" (M8)
- Barrel Type: Closed – Brazed
- Termination Method: Crimp or Compression
- Insulation: None
- Contact Material: Copper
- Plating: Tin
- Operating Temperature: Up to 149°C
- Certifications: UL E32244, CSA LR18689
