Molex Perma-Seal 191640045 – Butt Splice, 16–14 AWG, Blue NiAc, Reel of 500
Details

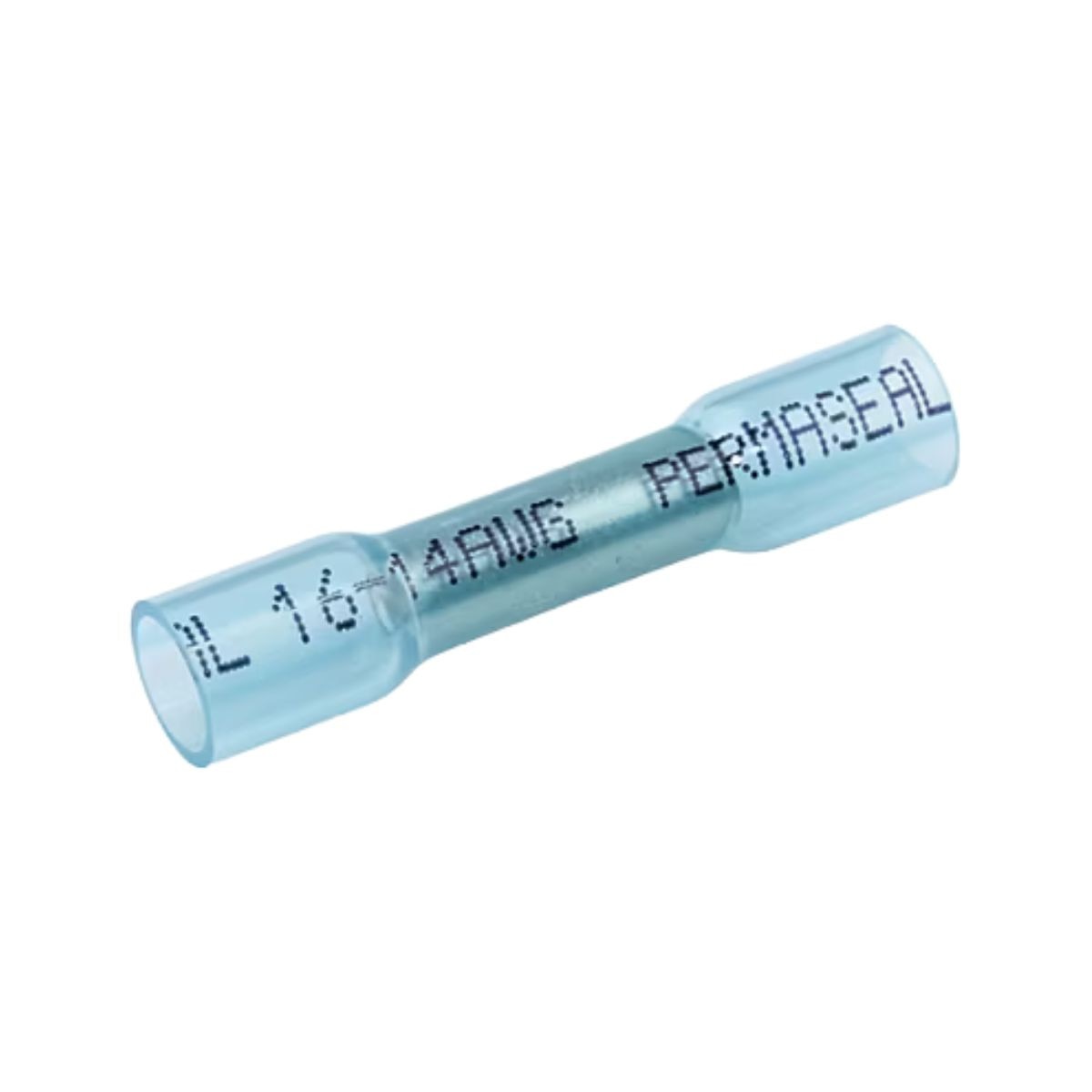

The Molex 191640045 Perma-Seal Butt Splice is a rugged solderless terminal designed for 16–14 AWG wire. Part of the 19164 series, this splice features a closed barrel for secure crimping and NiAc insulation for enhanced environmental protection. The tin-plated copper contact ensures reliable conductivity and corrosion resistance. UL and CSA certified, this terminal is ideal for harsh environments and high-performance applications. Supplied on a reel of 500 for efficient installation and inventory management.
Key Specifications
- Manufacturer: Molex
- Product Line: Perma-Seal
- Series: 19164
- Part Number: 191640045
- Product Type: Butt Splice
- Wire Size: 16–14 AWG
- Wire Insulation Diameter: 5.84 mm max
- Insulation: NiAc (Blue)
- Barrel Type: Closed
- Termination Method: Crimp or Compression
- Contact Material: Copper
- Plating: Tin
- Voltage Rating: 600V
- Operating Temperature: -55°C to +125°C
- Packaging: Reel of 500 (Mylar Tape Carrier)
- Certifications: UL E32244, CSA LR18689
