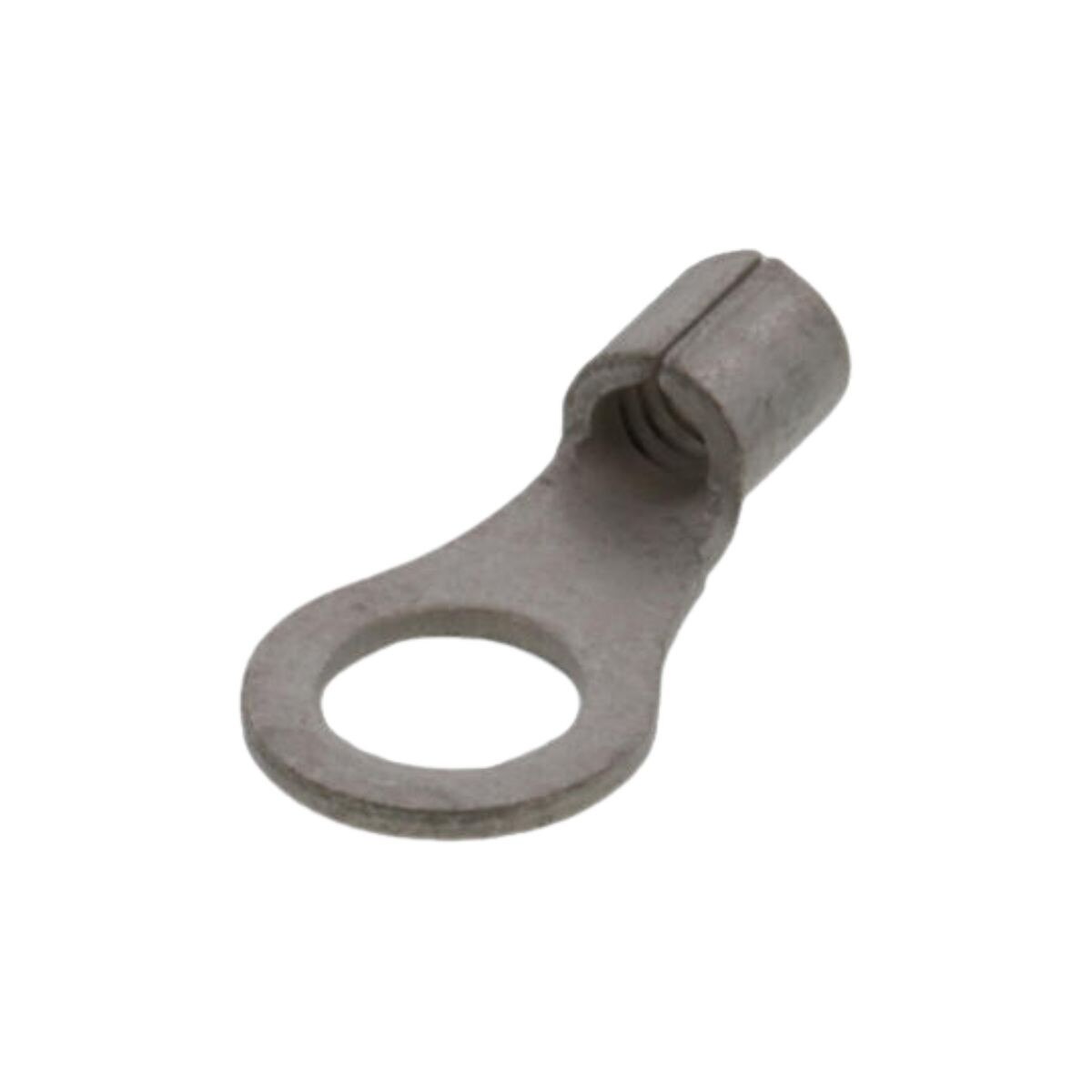

Molex Krimptite 190690116 – Ring Terminal, 16–14 AWG, Non-Insulated, Crimp

The Molex 190690116 Krimptite Ring Tongue Terminal is a robust solderless terminal designed for 16–14 AWG wire. Part of the 19069 series, this ring terminal features a closed barrel for secure crimping and a tin-plated copper contact for reliable conductivity and corrosion resistance. It is UL and CSA certified and suitable for high-volume use.

Key Specifications

• Manufacturer: Molex
• Product Line: Krimptite
• Series: 19069
• Part Number: 190690116
• Product Type: Ring Terminal
• Wire Size: 16–14 AWG (1.30–2.00 mm²)
• Stud Size: 10 (M5)
• Barrel Type: Closed
• Termination Method: Crimp or Compression
• Insulation: None
• Contact Material: Copper
• Plating: Tin (2.540µm min)
• Flammability Rating: UL 94V-0
• Operating Temperature: Up to 105°C
• Certifications: UL E32244, CSA LR18689
