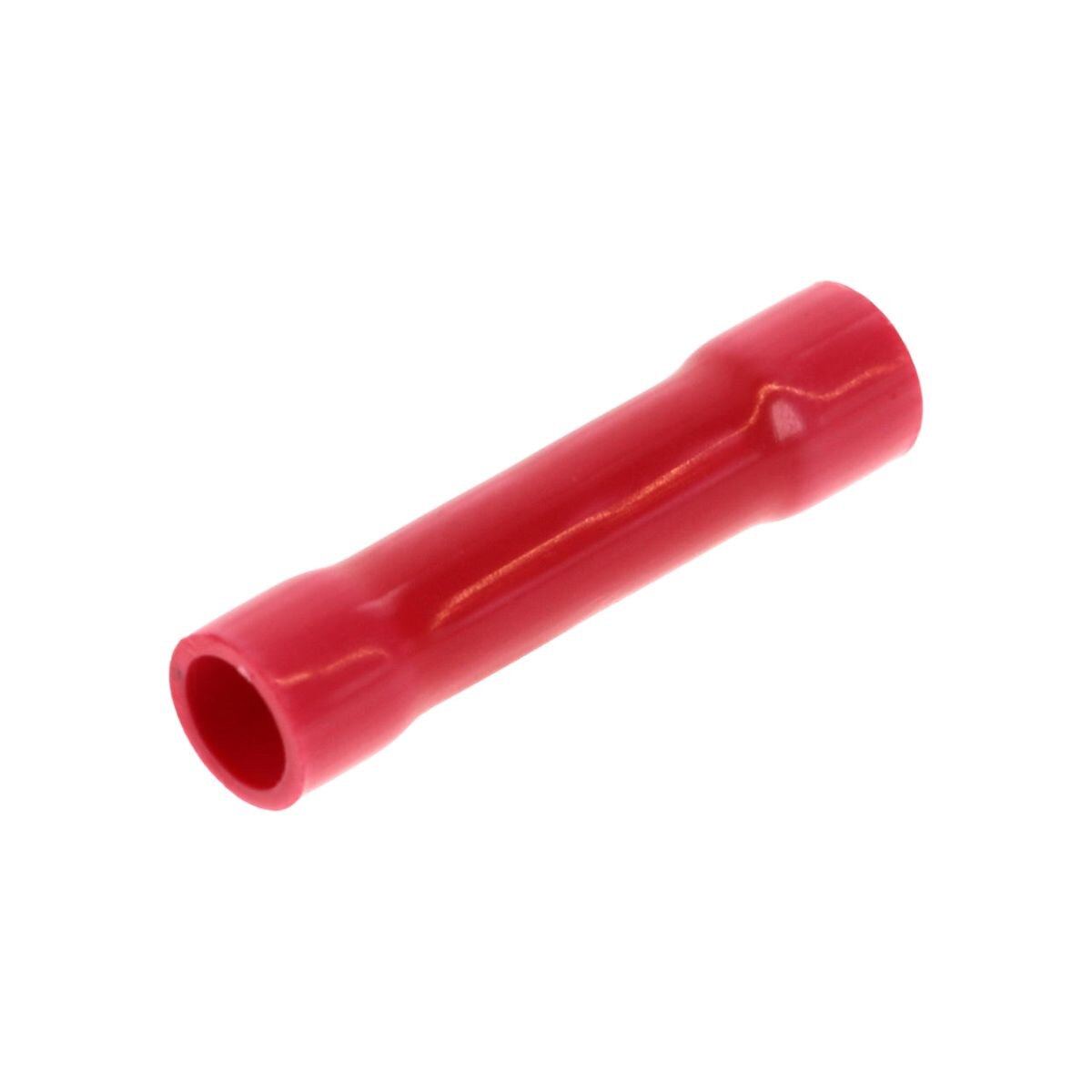

Molex InsulKrimp 191540006 – Butt Splice, 22–18 AWG, Red PVC, Reel of 500
Details
The Molex 191540006 InsulKrimp Butt Splice is a heavy-duty solderless terminal designed for 22–18 AWG wire. Part of the 19154 series, this butt splice features a closed barrel for secure crimping and red PVC insulation for added protection and strain relief. The tin-plated copper contact ensures reliable conductivity and corrosion resistance. UL certified, this terminal is ideal for low-voltage applications and is supplied on adhesive tape in reel format—500 pieces per reel—for automated assembly and efficient inventory handling.
Key Specifications
- Manufacturer: Molex
- Product Line: InsulKrimp
- Series: 19154
- Part Number: 191540006
- Product Type: Butt Splice
- Wire Size: 22–18 AWG
- Barrel Type: Closed
- Termination Method: Crimp or Compression
- Insulation: PVC (Red)
- Contact Material: Copper
- Plating: Tin
- Operating Temperature: -40°C to +105°C
- Flammability Rating: UL 94V-0
- Packaging Type: Reel of 500 (Adhesive Tape Carrier)
- Certifications: UL E32244
