Molex InsulKrimp 190540113 – Ring Terminal, 16–14 AWG, Blue PVC, Crimp
Details
The Molex 190540113 InsulKrimp Ring Tongue Terminal is a heavy-duty solderless terminal designed for 16–14 AWG wire. Part of the 19054 series, this terminal features a closed barrel for secure crimping and a blue PVC insulation for added protection and strain relief. The tin-plated copper contact ensures reliable conductivity and corrosion resistance. Rated for up to 105°C, this terminal is UL and CSA certified.

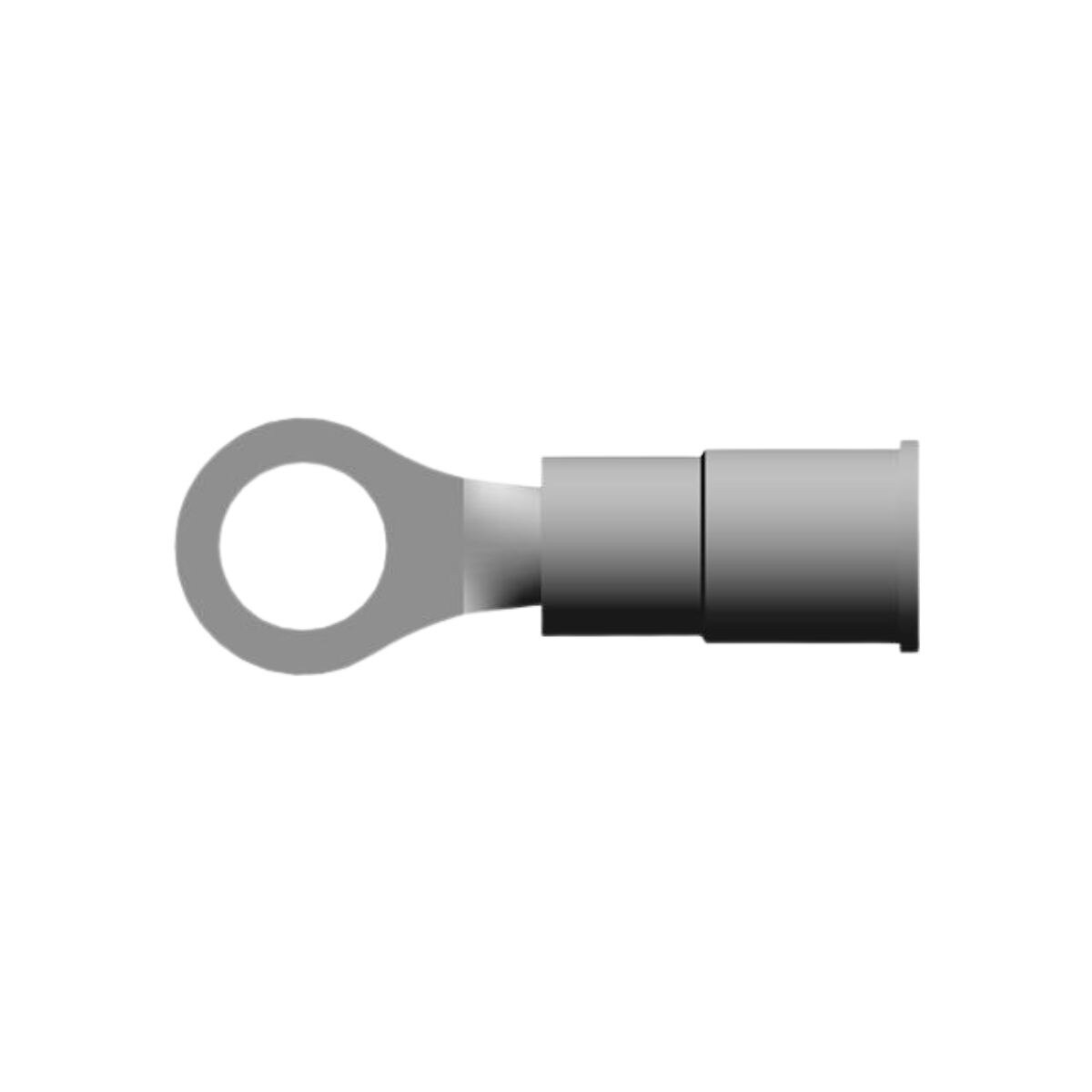

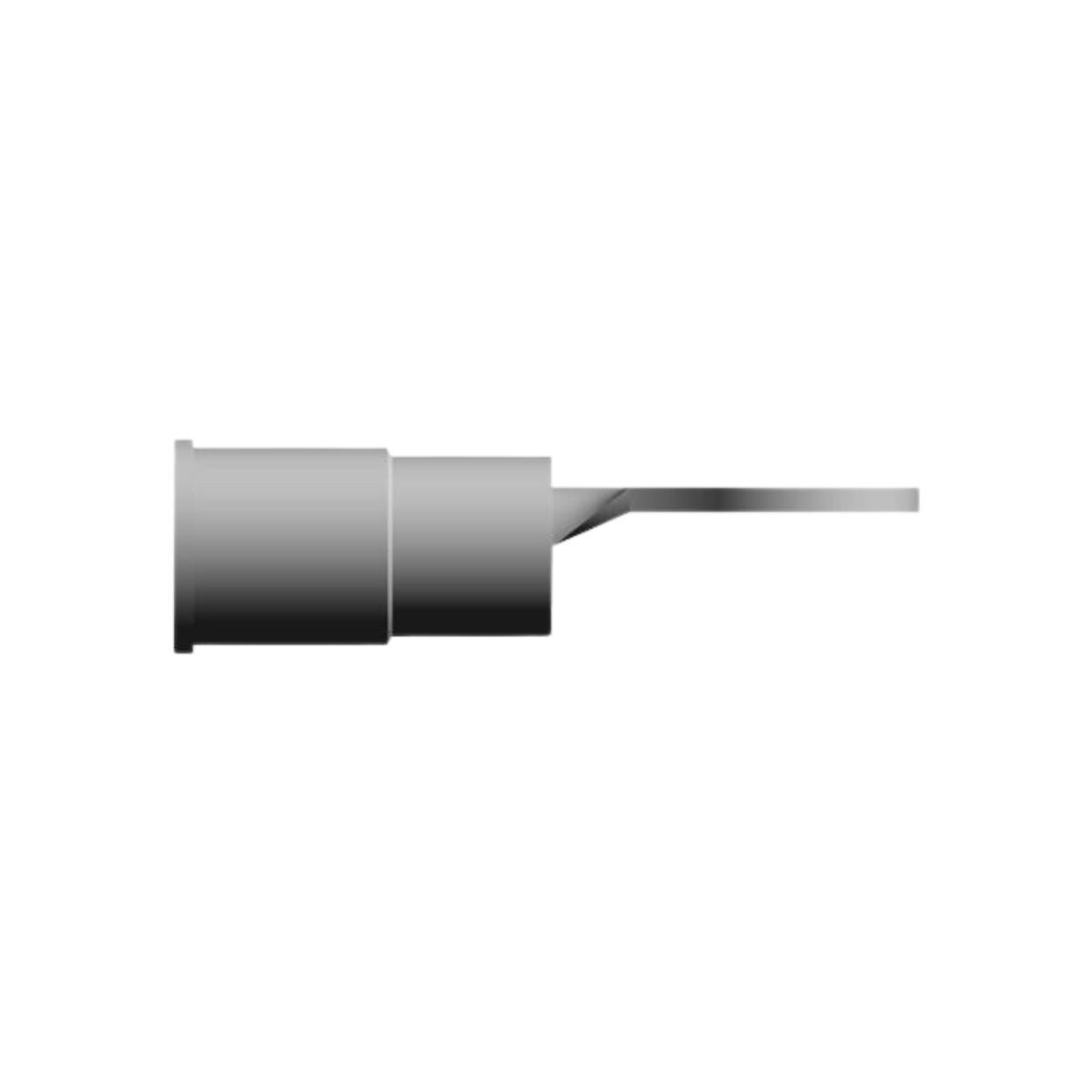

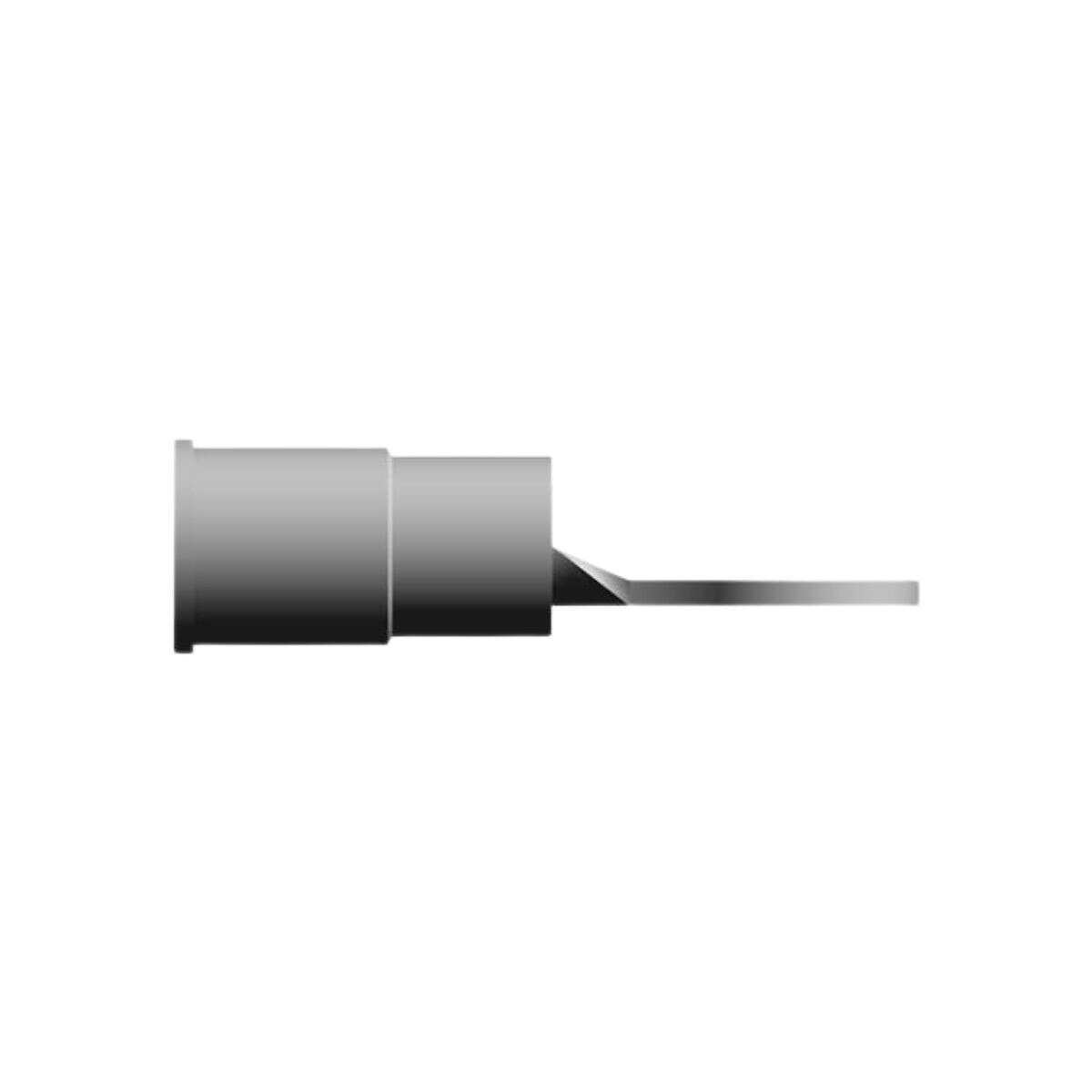

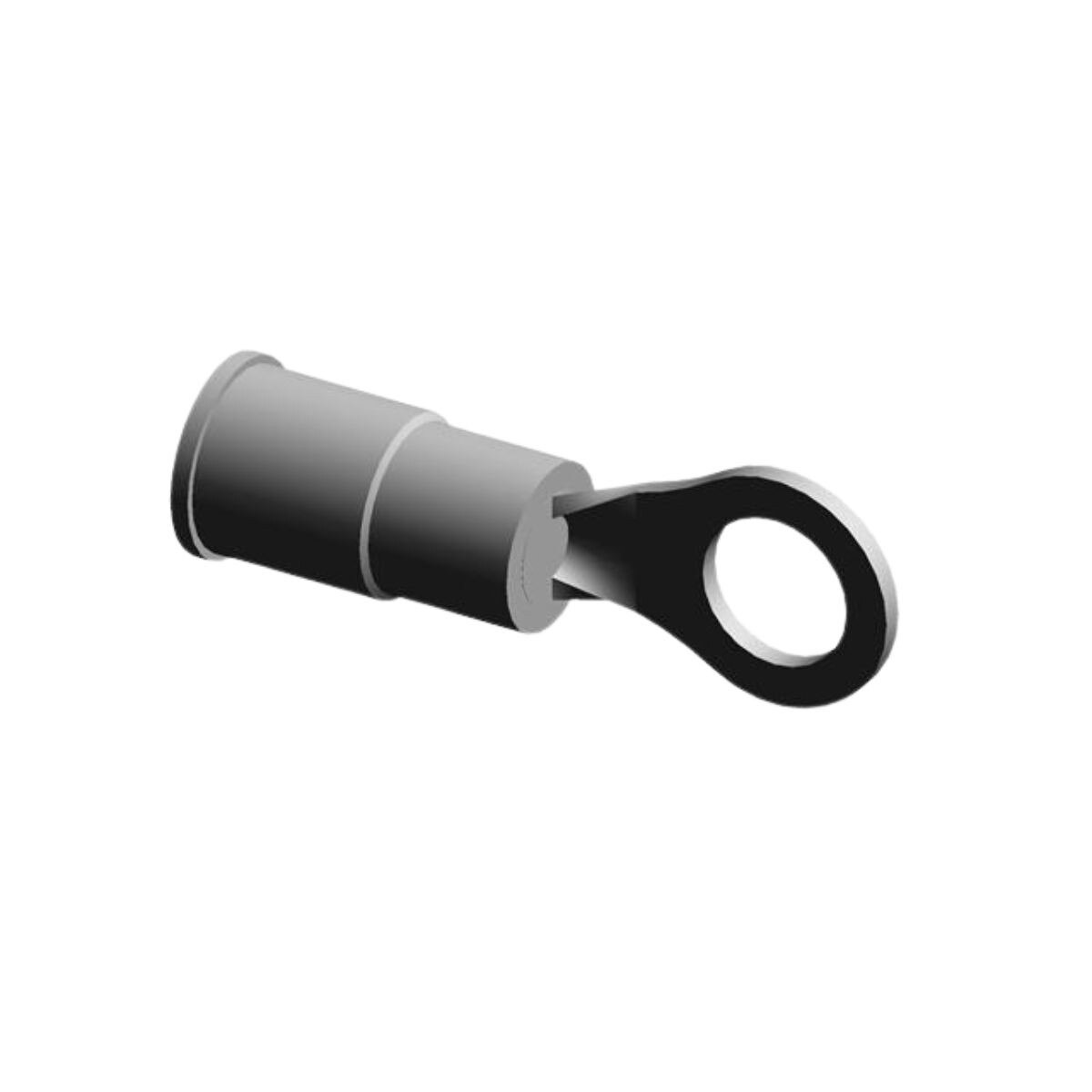

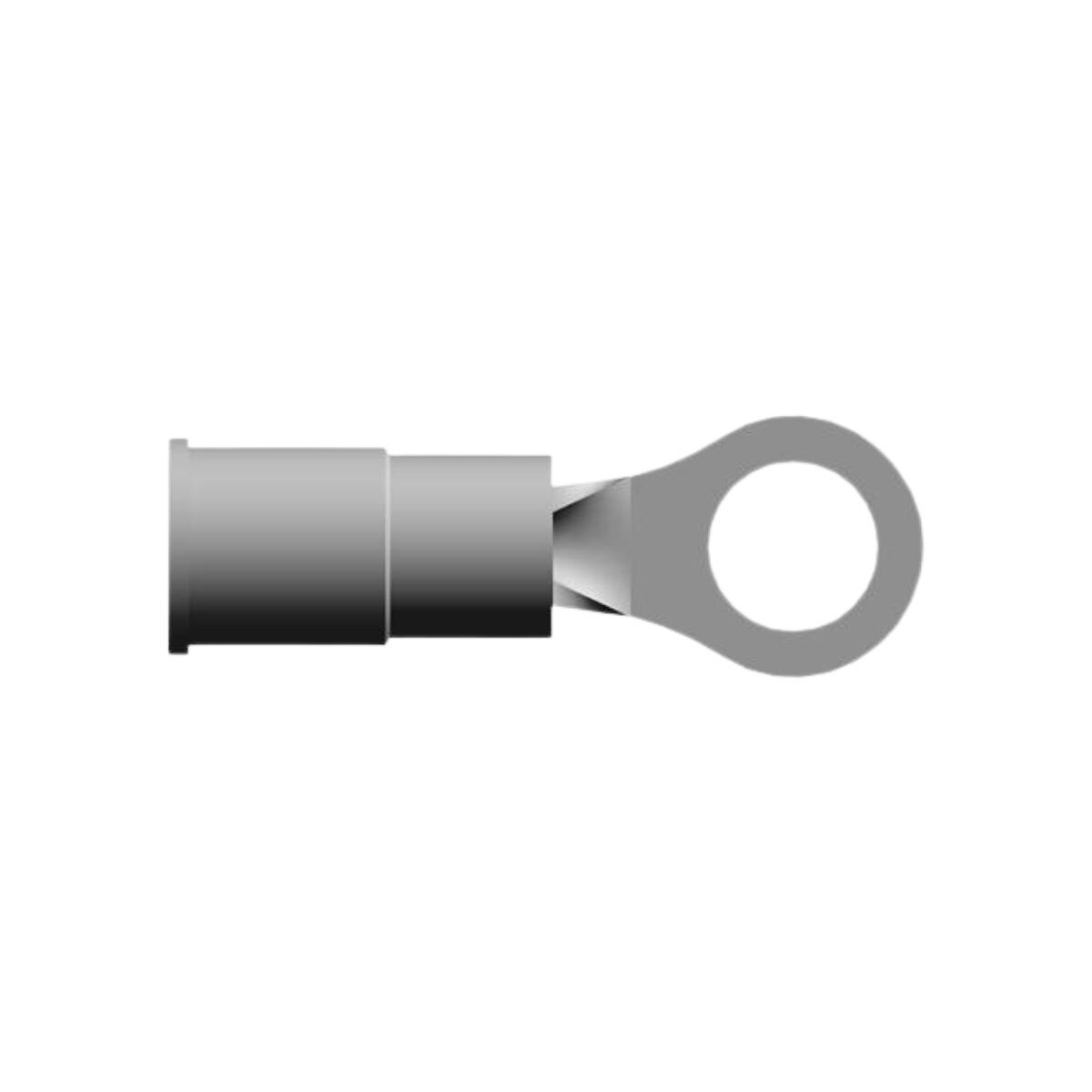

Note: Image shown is a 3D rendering for reference. Actual product appearance may vary slightly.
Key Specifications
- Manufacturer: Molex
- Product Line: InsulKrimp
- Series: 19054
- Part Number: 190540113
- Product Type: Ring Terminal
- Wire Size: 16–14 AWG (1.00–2.50 mm²)
- Stud Size: 10 (M5)
- Barrel Type: Closed
- Termination Method: Crimp or Compression
- Contact Material: Copper
- Plating: Tin
- Insulation: PVC (Blue)
- Operating Temperature: Up to 105°C
- Certifications: UL E32244, CSA LR18689
