Molex Avikrimp 190390029 – Snap Receptacle, Female, 22–18 AWG, Red PVC, Crimp
Details
The Molex 190390029 Avikrimp Snap Receptacle is a fully insulated female quick disconnect terminal designed for 22–18 AWG wire. Part of the 19039 series, this receptacle features a closed barrel for secure crimping, PVC insulation for electrical isolation, and a tin-plated brass contact for reliable conductivity and corrosion resistance. It is designed to mate with male plugs of 4.57 mm diameter. UL and CSA certified, this terminal supports a straight orientation and operates in temperatures from -40°C to +105°C.

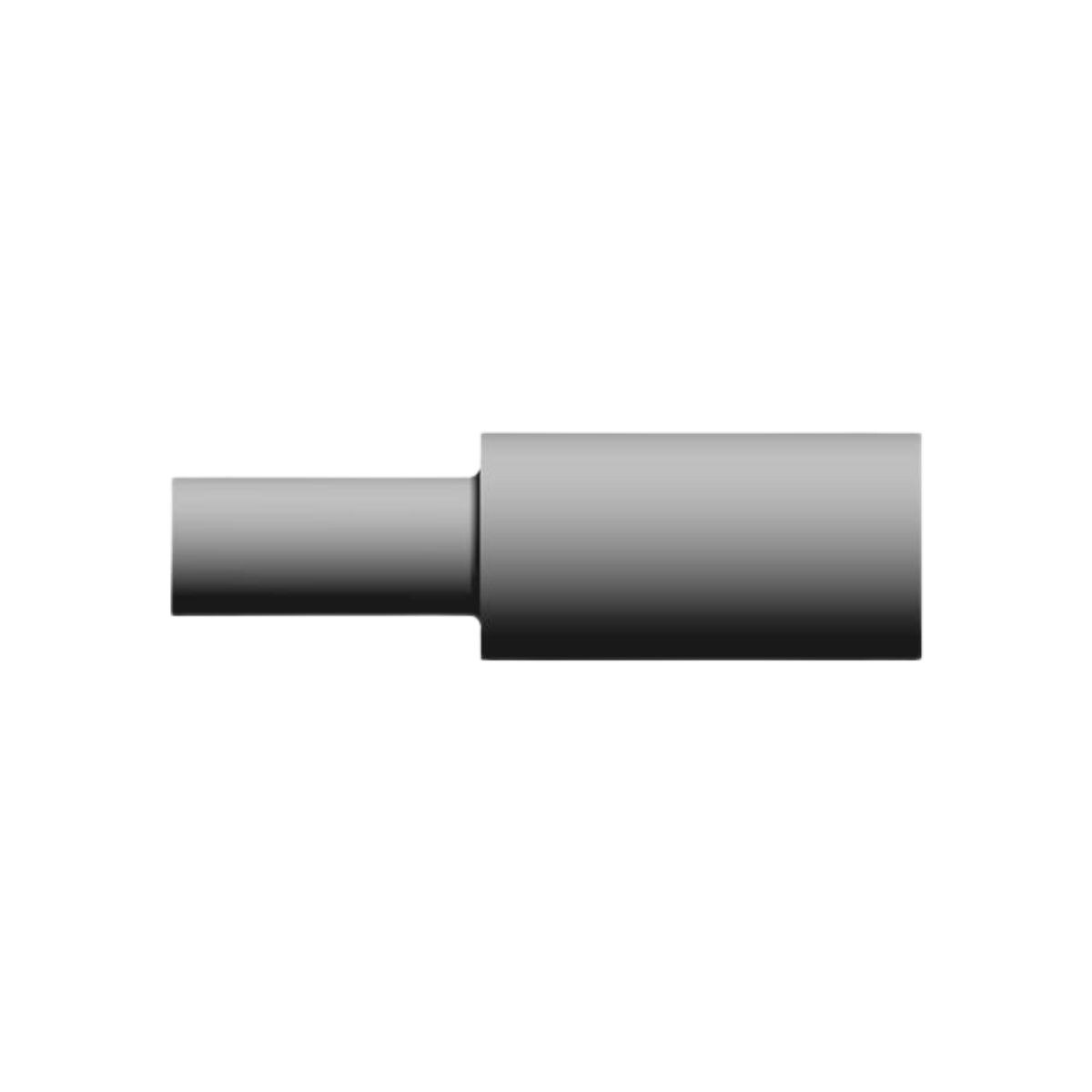

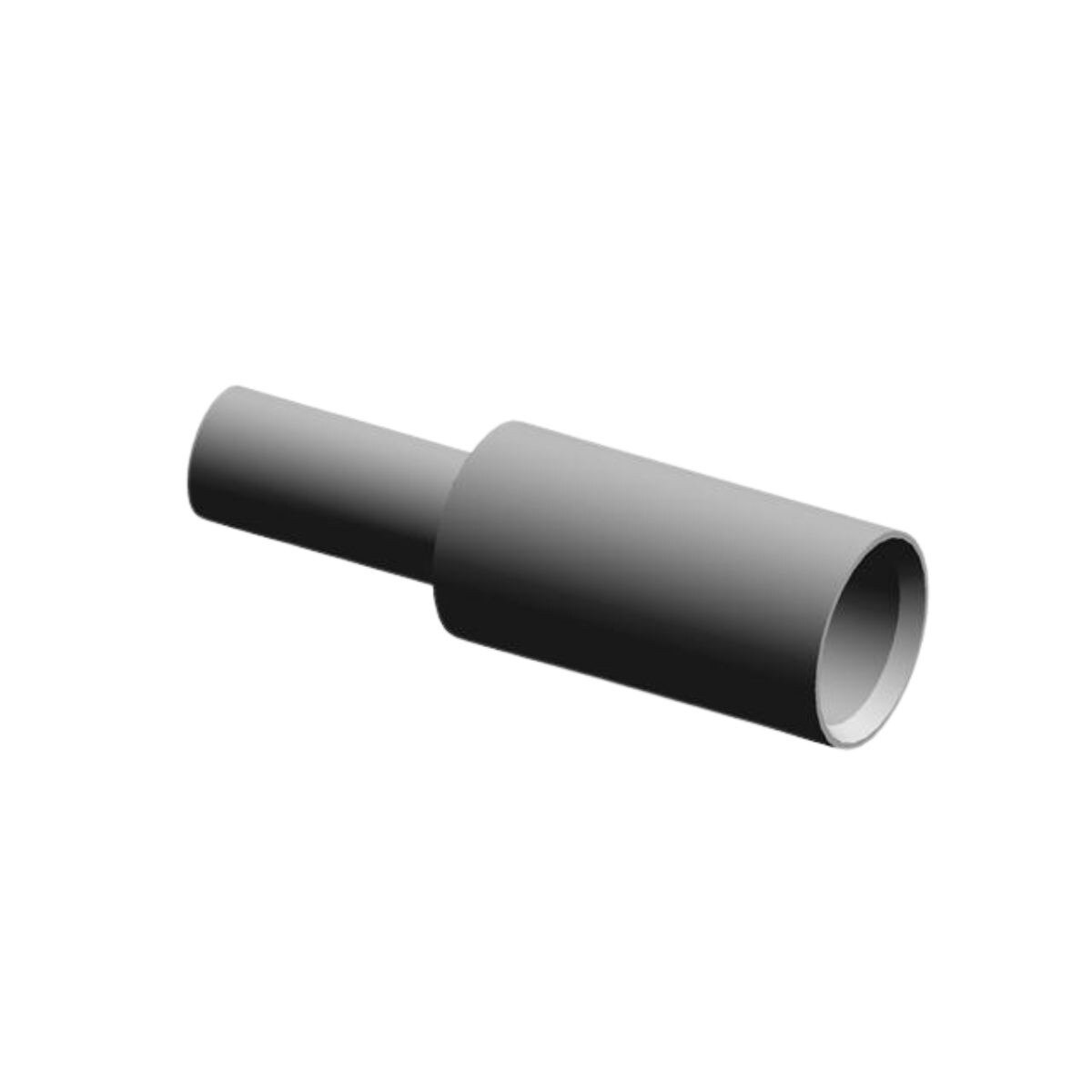

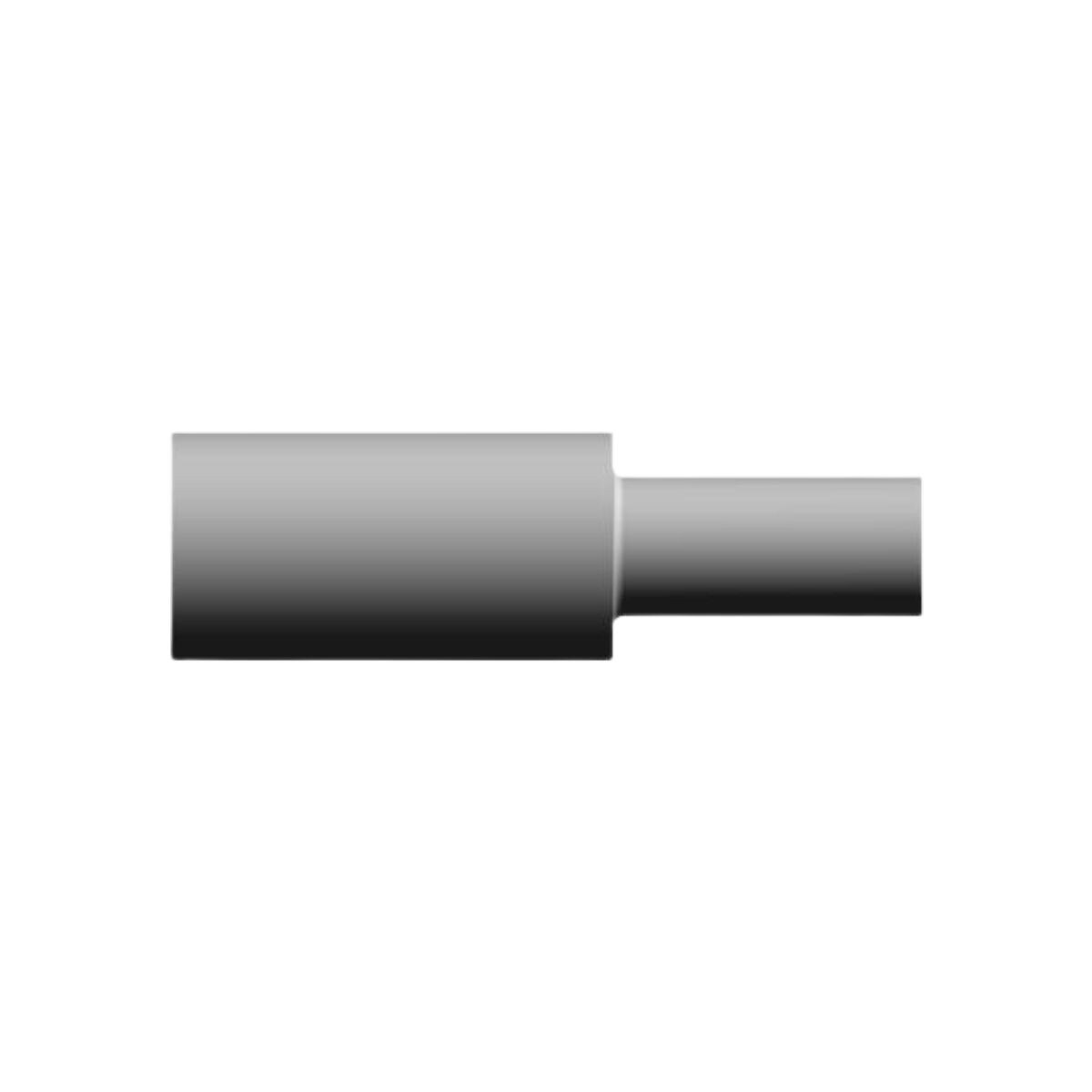

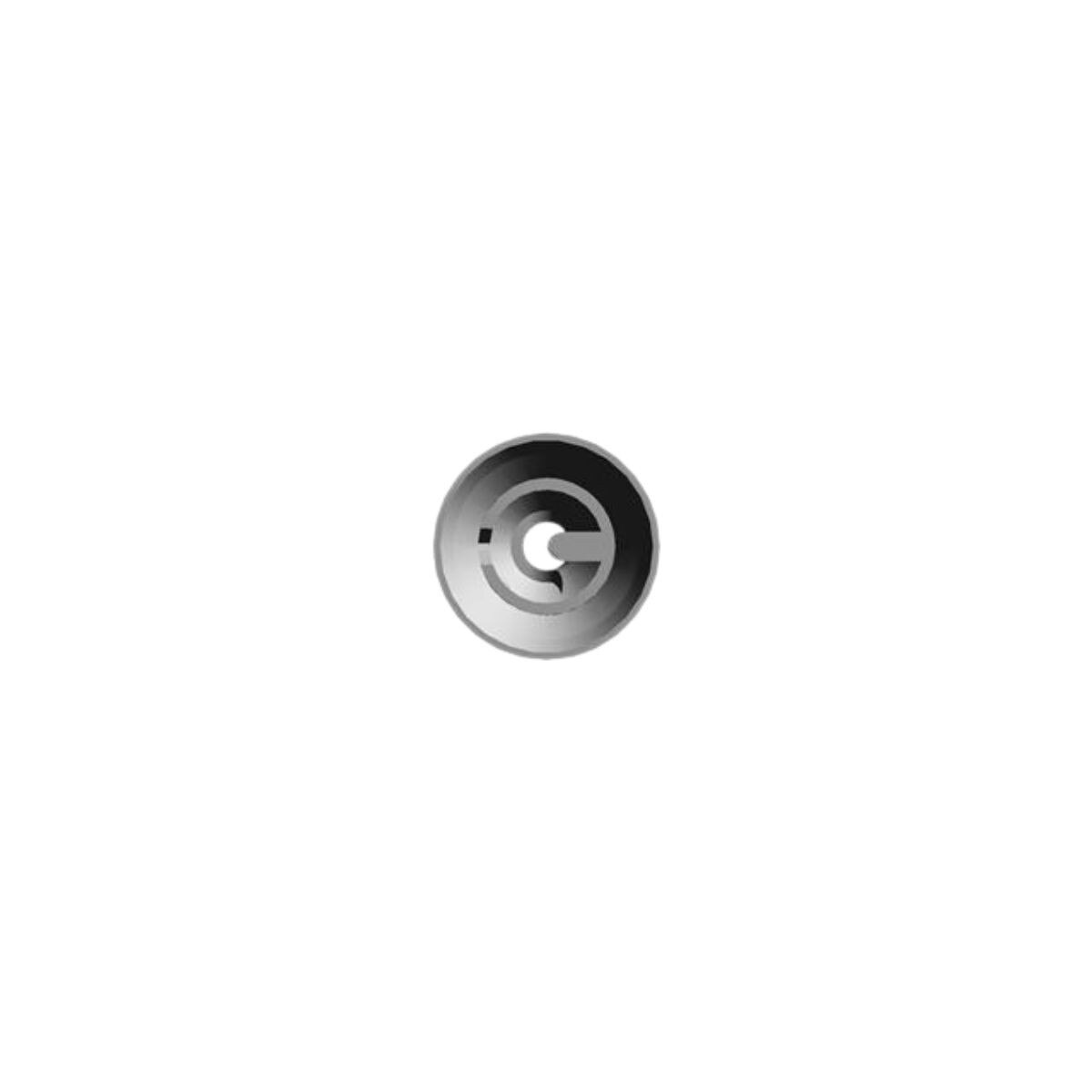

Note: Image shown is a 3D rendering for reference. Actual product appearance may vary slightly.
Key Specifications
- Manufacturer: Molex
- Product Line: Avikrimp
- Series: 19039
- Part Number: 190390029
- Product Type: Snap Receptacle
- Wire Size: 22–18 AWG
- Wire Insulation Diameter: 3.25 mm max
- Fits Male Plug Diameter: 4.57 mm
- Barrel Type: Closed
- Termination Method: Crimp or Compression
- Insulation: PVC (Red)
- Contact Material: Brass
- Plating: Tin
- Gender: Female
- Orientation: Straight
- Voltage Rating: 600V
- Operating Temperature: -40°C to +105°C
- Flammability Rating: UL 94V-0
- Certifications: UL E152602, CSA LR18689
