Molex Avikrimp 190360006 – Snap Plug, Male, 16–14 AWG, Blue Nylon, Crimp

The Molex 190360006 Avikrimp Snap Plug is a high-quality male quick disconnect terminal designed for 16–14 AWG wire. Part of the 19036 series, this solderless terminal features a closed barrel for crimp termination and extruded nylon insulation for added durability and electrical isolation. The tin-plated copper contact ensures reliable conductivity, while the 24.31mm overall length supports secure wire engagement.

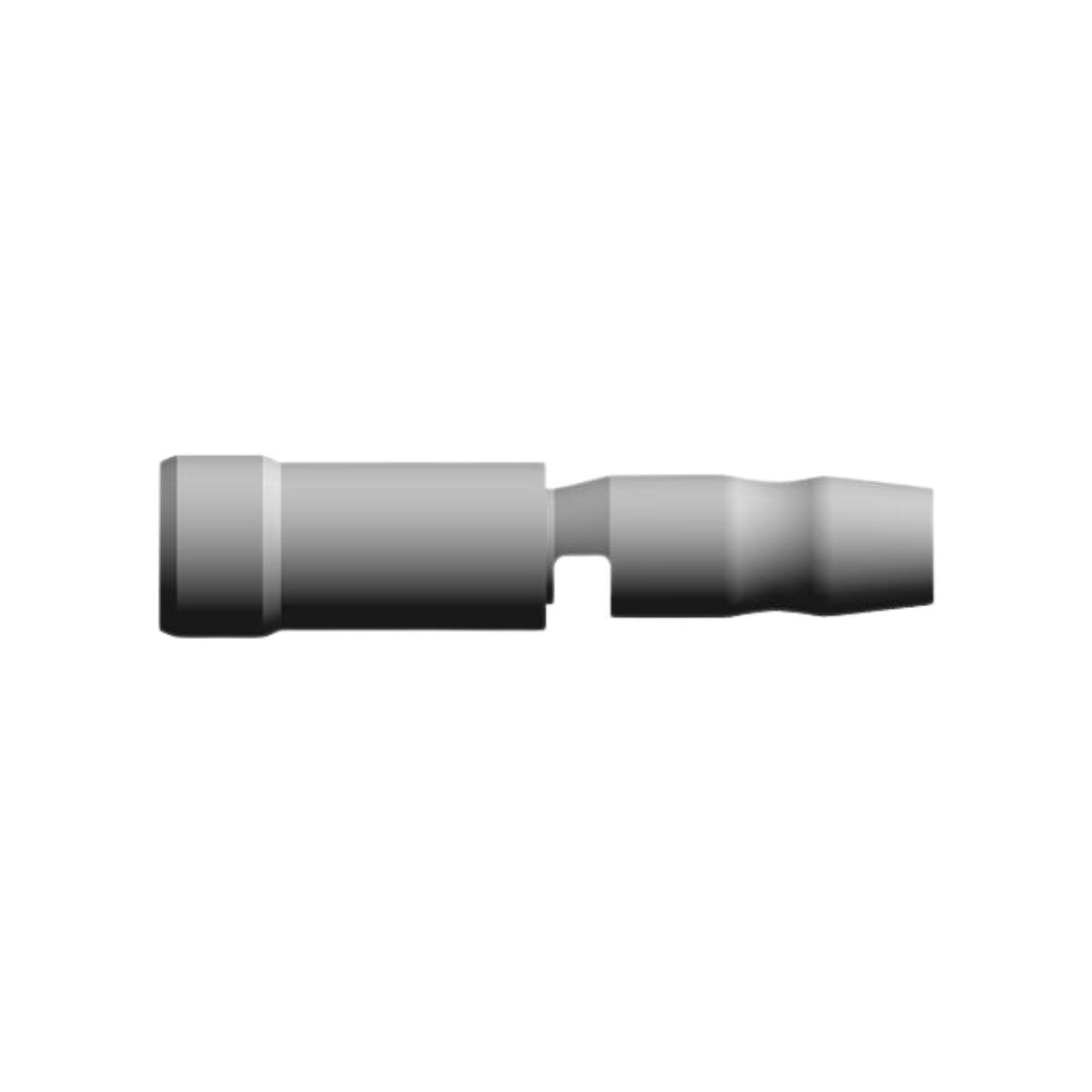

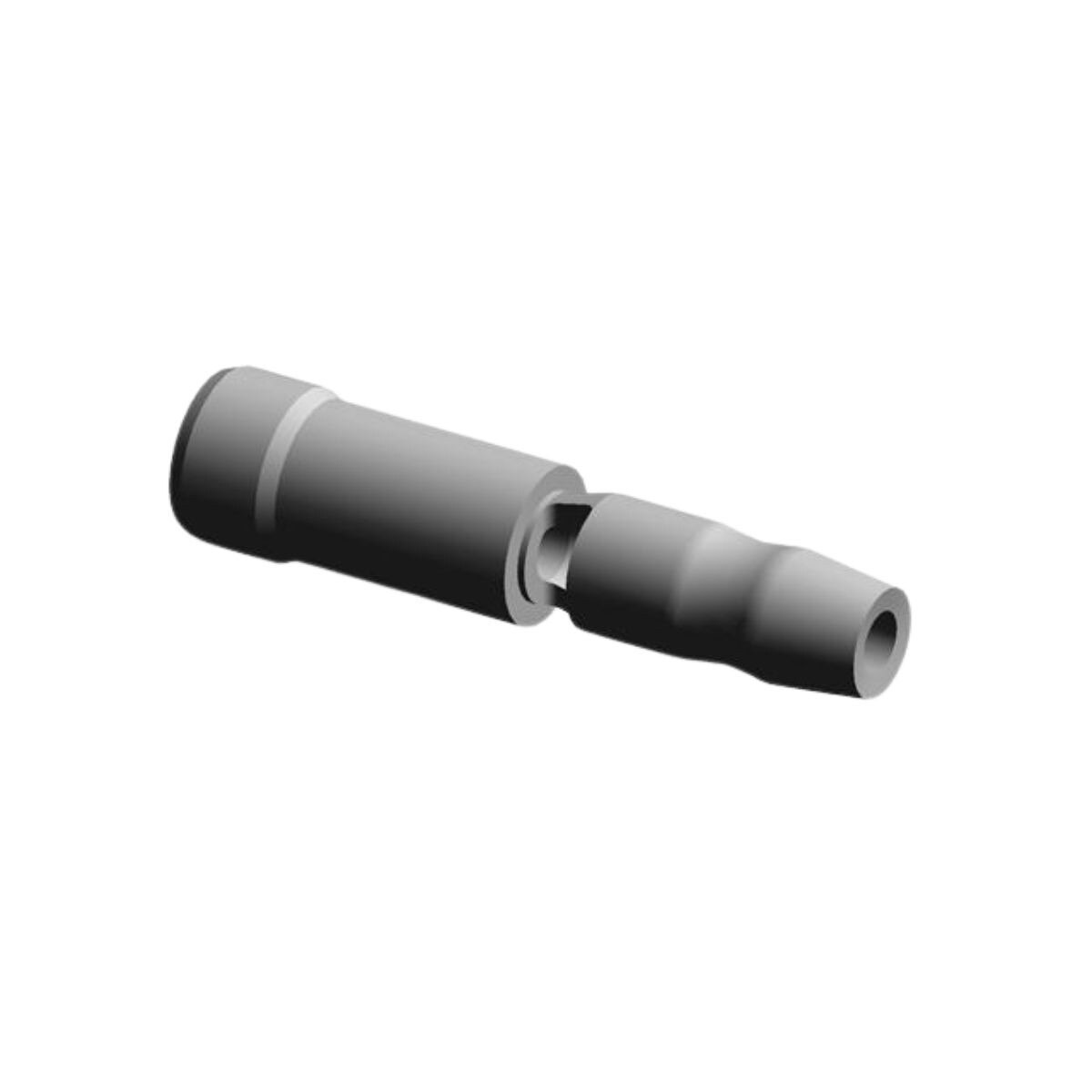

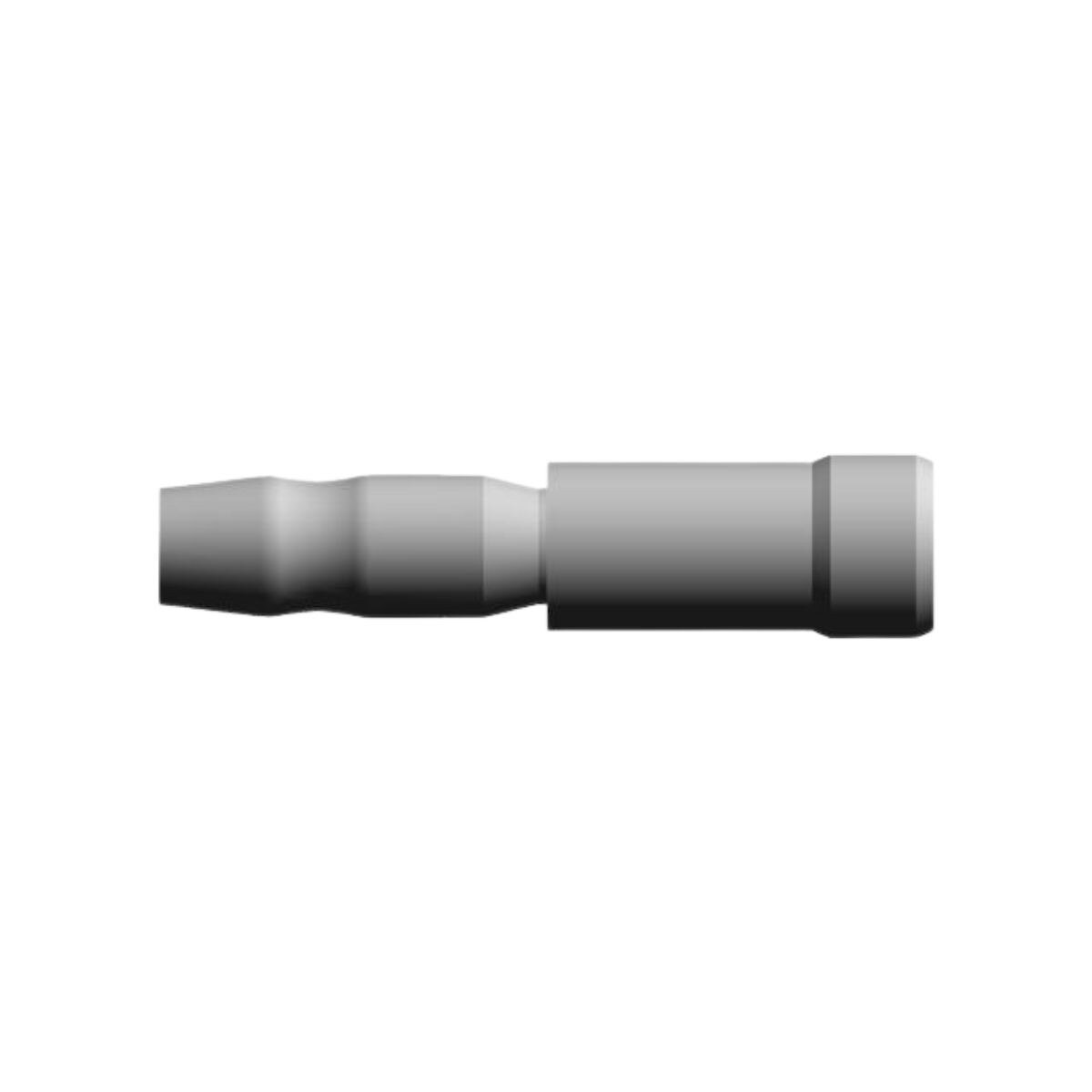

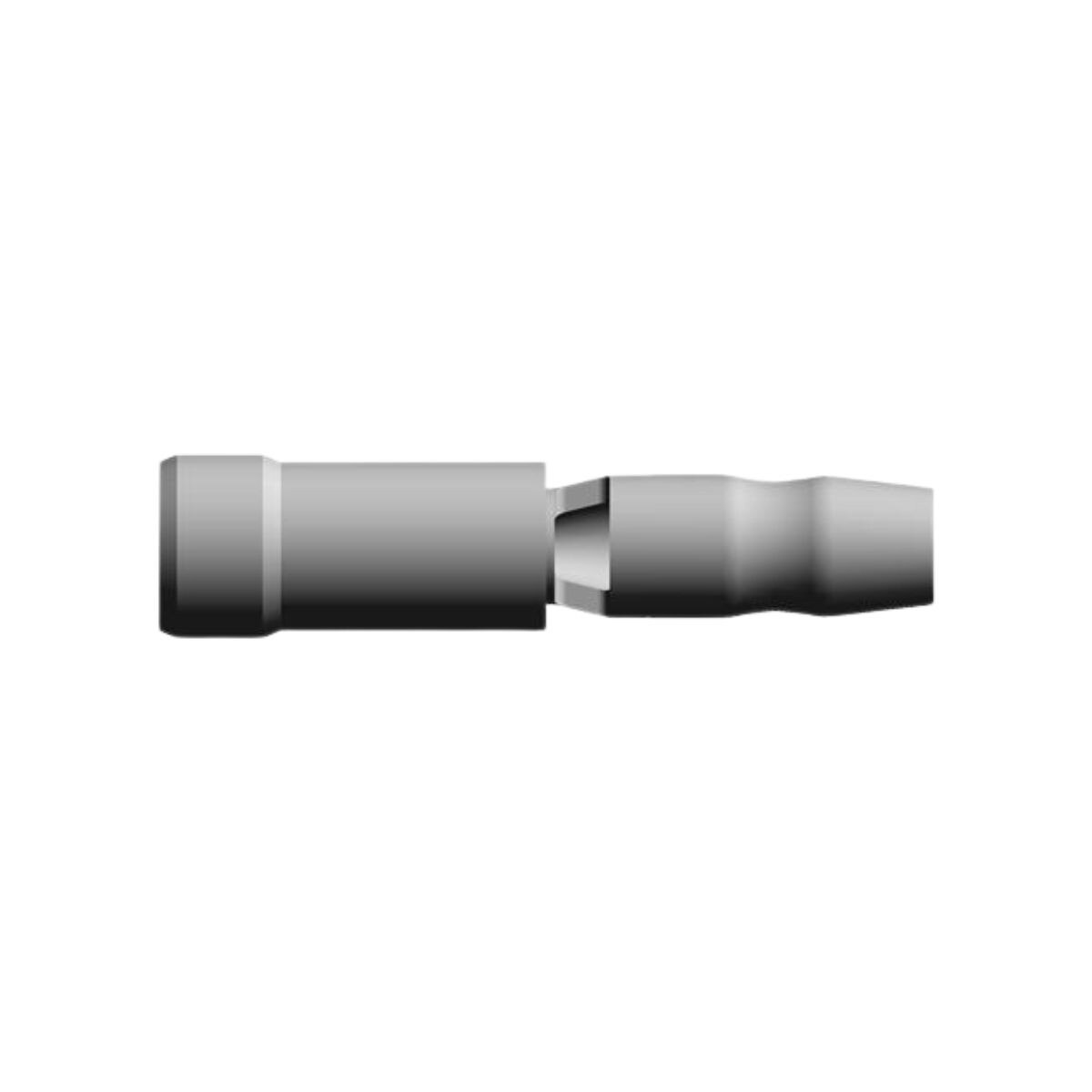

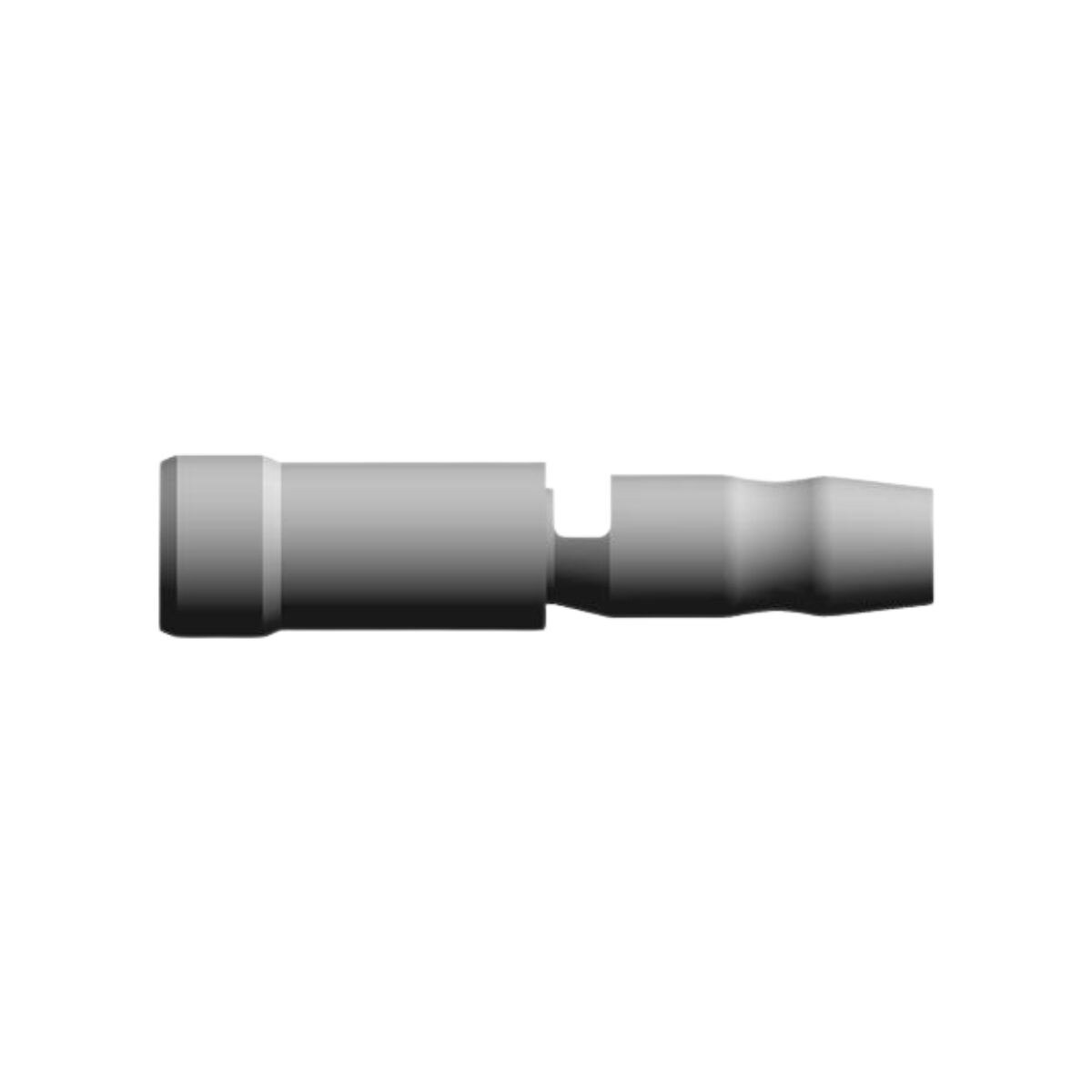

Note: Image shown is a 3D rendering for reference. Actual product appearance may vary slightly.

Key Specifications

• Manufacturer: Molex
• Product Line: Avikrimp
• Series: 19036
• Part Number: 190360006
• Product Type: Snap Plug, Male
• Wire Size: 16–14 AWG (1.30–2.00 mm²)
• Insulation: Nylon (Blue)
• Barrel Type: Closed
• Termination Method: Crimp
• Orientation: Straight
• Length: 24.31 mm
• Contact Material: Copper
• Plating: Tin (2.540µm min)
• Flammability Rating: UL 94V-2
• Certifications: UL E152602, CSA LR18689
