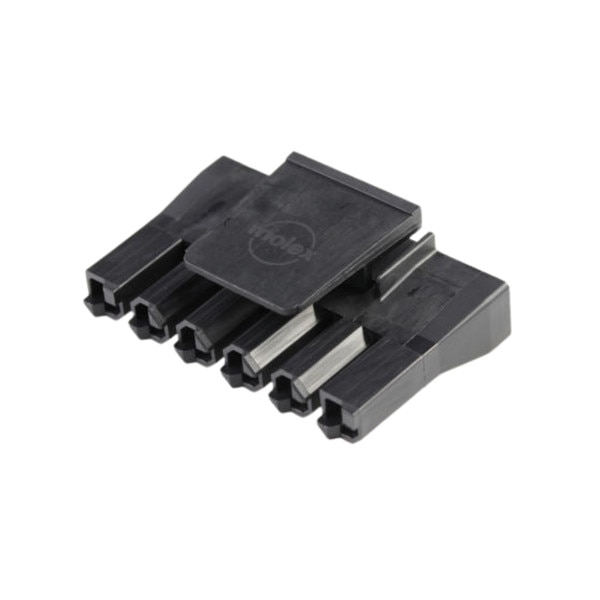

Molex 444412006 – SABRE 6-Circuit Receptacle Housing, 7.50 mm

The Molex 444412006 is a 6-circuit receptacle housing from the SABRE product line, designed for power applications. It features a 7.50 mm pitch, black UL 94V-0 rated nylon construction, and includes a positive mating lock with integrated Terminal Position Assurance (TPA). Ideal for wire-to-board connections requiring flame resistance and secure engagement.

Key Specifications

• Manufacturer: Molex
• Product Line: SABRE
• Series: 44441
• Part Number: 444412006
• Connector Type: Receptacle Crimp Housing
• Number of Circuits: 6
• Pitch: 7.50 mm
• Gender: Receptacle
• Material: Nylon
• Color: Black
• Flammability Rating: UL 94V-0
• Locking Mechanism: Positive Mating Lock
• TPA: Integrated
• Operating Temperature Range: -40°C to +75°C
• Dimensions: 1.25" L × 1.5" W × 2.5" H
• Certifications: UL Listed (E29179), CSA Certified (LR19980)
• Compliance: RoHS, REACH, Low-Halogen
