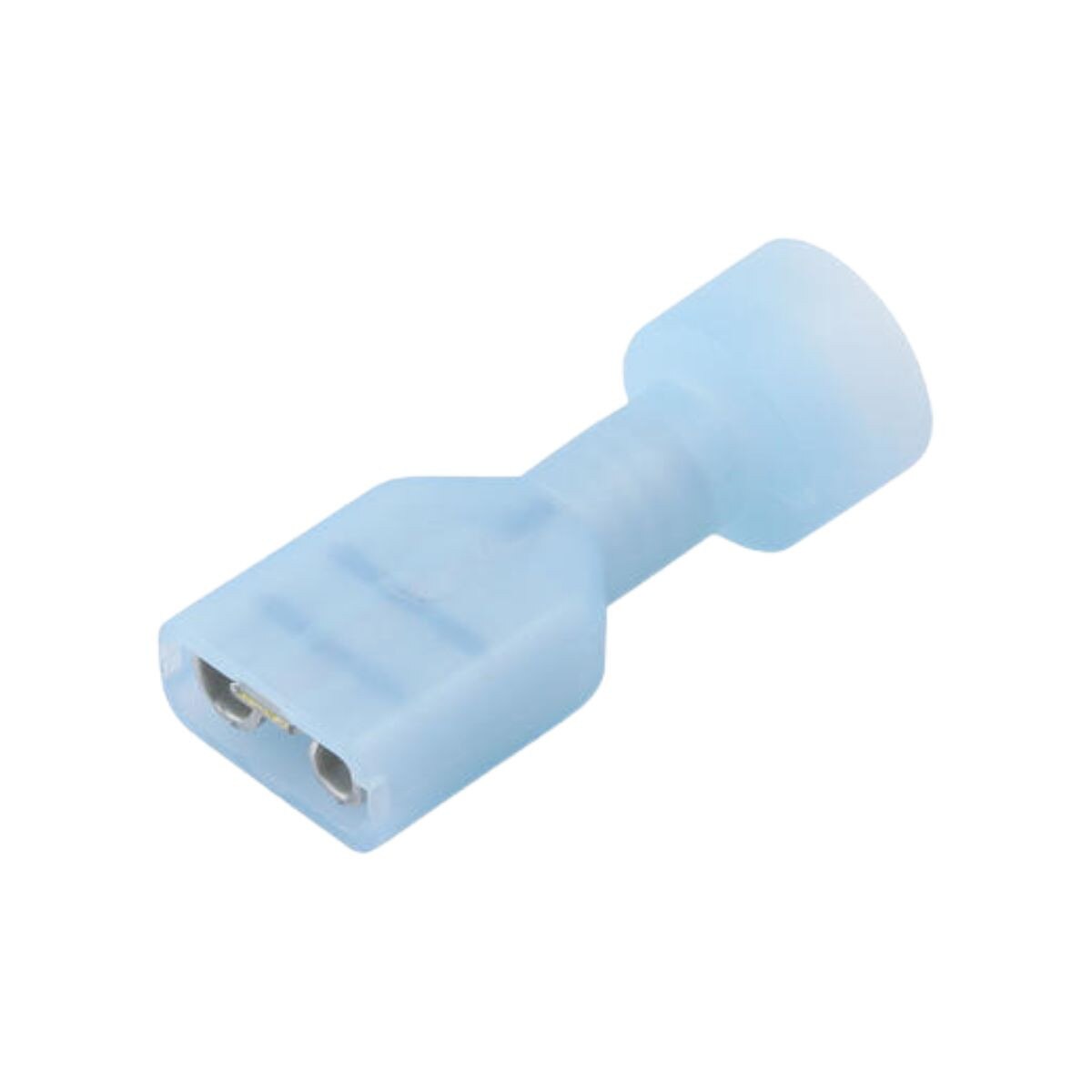

Molex InsulKrimp 190030048 – Quick Disconnect, Female, 14–16 AWG, Nylon, Tab 6.35 × 0.81mm
Details
The Molex 190030048 InsulKrimp Quick Disconnect is a fully insulated female terminal designed for 14–16 AWG wire. Part of the 19003 series, this quick disconnect features a closed barrel for secure crimping, nylon insulation for electrical isolation, and a tin-plated brass contact for reliable conductivity and corrosion resistance. UL and CSA certified, it supports a straight orientation and includes a tab size of 6.35 × 0.81 mm.
Key Specifications
- Manufacturer: Molex
- Product Line: InsulKrimp
- Series: 19003
- Part Number: 190030048
- Product Type: Female Quick Disconnect
- Wire Size: 14–16 AWG (2.00–1.30 mm²)
- Wire Insulation Diameter: 6.60 mm max
- Barrel Type: Closed
- Termination Method: Crimp or Compression
- Insulation: Nylon (Blue)
- Contact Material: Brass
- Plating: Tin
- Gender: Female
- Orientation: Straight
- Tab Width: 6.35 mm
- Tab Thickness: 0.81 mm
- Voltage Rating: 600V
- Operating Temperature: -65°C to +105°C
- Flammability Rating: UL 94V-2
- Certifications: UL E79133, CSA LR18689
