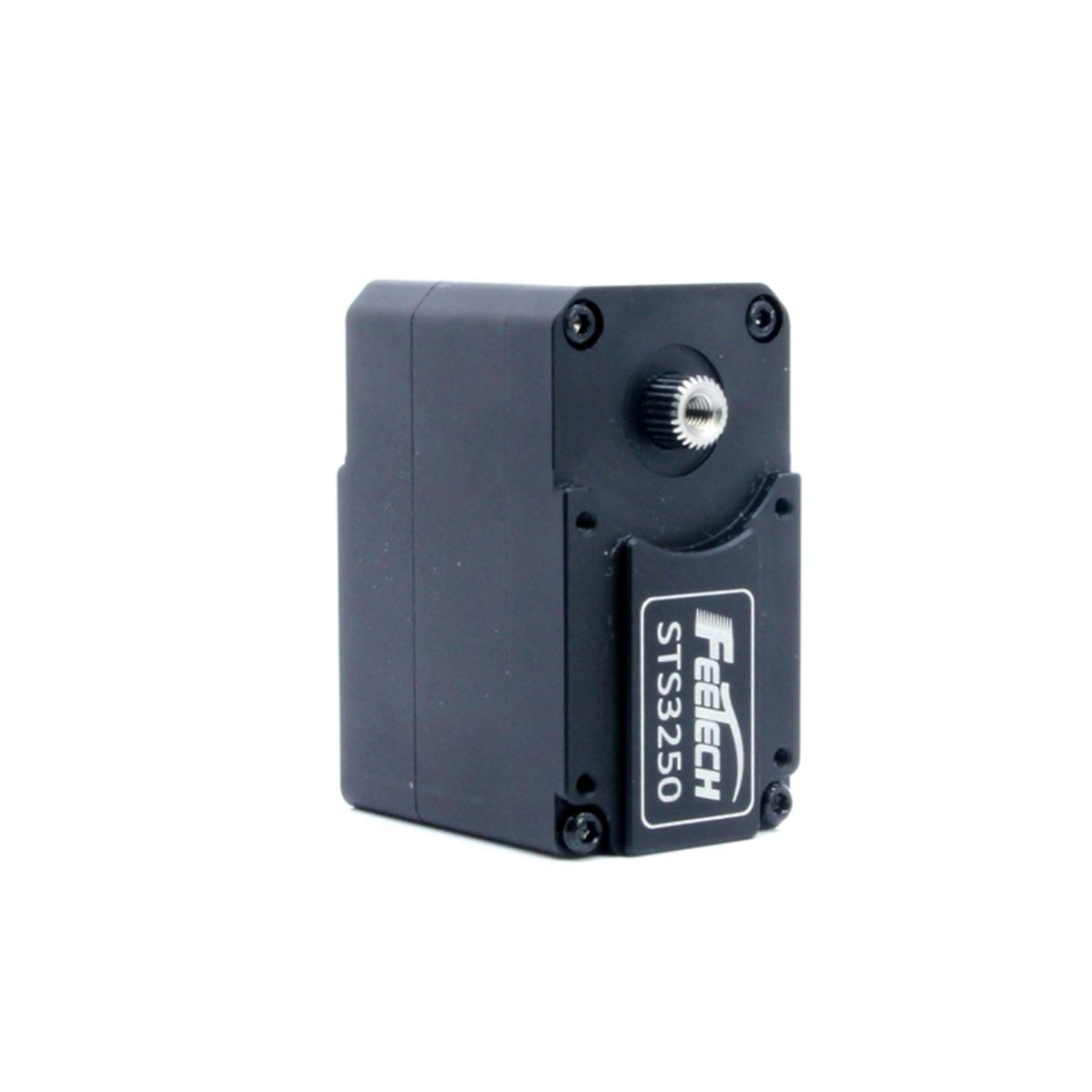

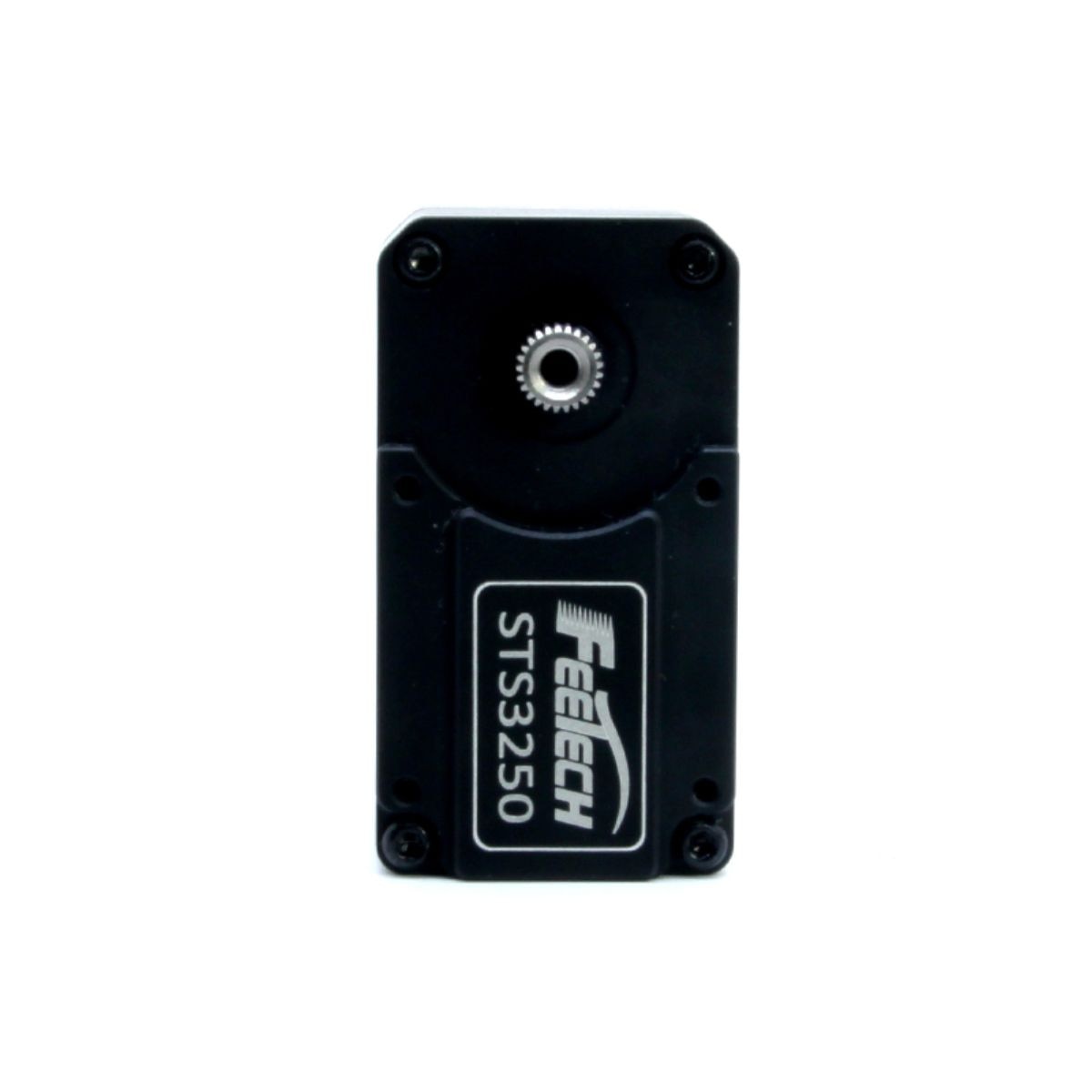

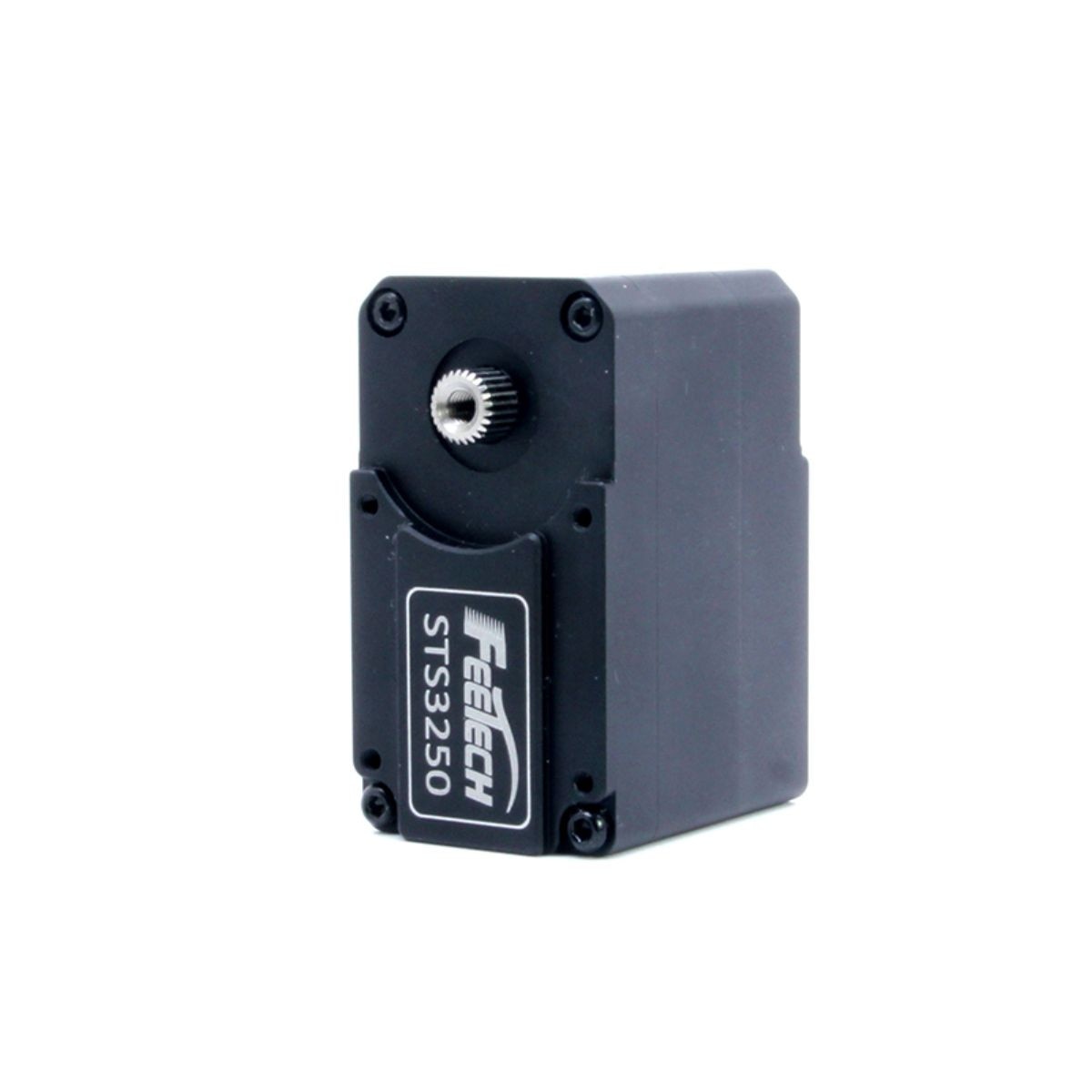

STS3250 50kg Heavy Duty Smart Servo

The STS3250 delivers 50kg.cm of stall torque in the same standard footprint as the STS3215, so you can upgrade high-load joints without redesigning your build. An all-aluminum case, coreless motor, and steel gearbox handle demanding loads, and dual output shafts allow brackets on both sides. The 12-bit magnetic encoder provides 360° position control, multi-turn continuous rotation, one-key center setting, soft start and stop, and real-time feedback for overload and over-current protection.

Specifications

• Manufacturer: FEETECH
• Model: STS3250
• SKU: ST-3250-C001
• Stall Torque: 50kg.cm (695.58oz.in) @ 12V
• Rated Torque: 16kg.cm @ 12V
• No-Load Speed: 0.133sec/60° @ 12V
• Operating Voltage: 6V - 12V
• No-Load Current: 280mA @ 12V
• Stall Current: 4.2A @ 12V
• Dimensions: 45.22mm × 24.72mm × 35mm
• Weight: 74.5g
• Motor: Coreless
• Gears: Steel
• Bearings: Ball bearings
• Case: Aluminum

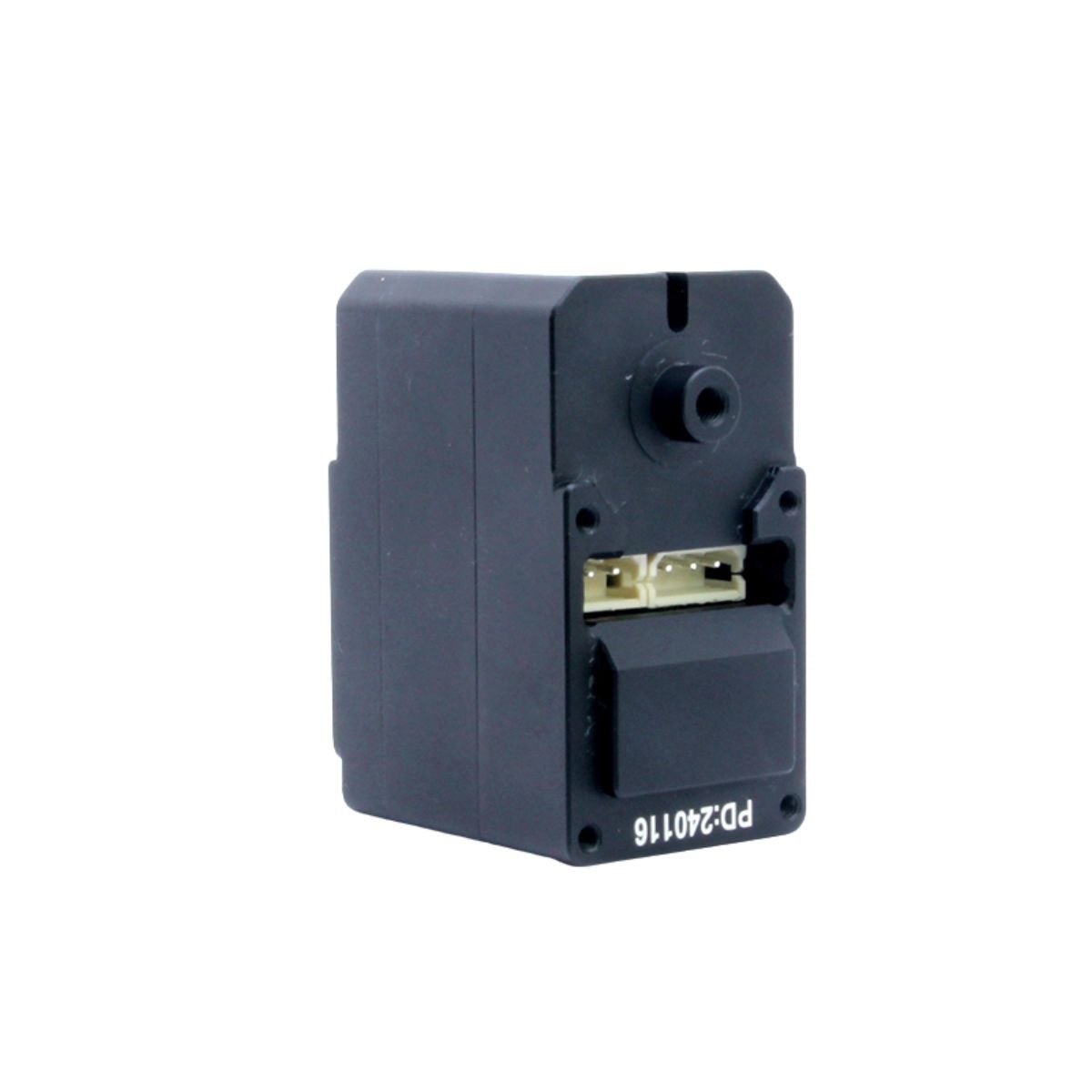

• Shaft: Double shaft (dual output), 25T / OD 5.9mm spline
• Rotation: 360° (0-4096) or multi-turn continuous
• Encoder: 12-bit Magnetic (4096 resolution)
• Communication: TTL Serial Bus (half-duplex, digital packet)
• Baud Rate: 38,400 bps - 1 Mbps (1,000,000 default)
• ID Range: 0-253
• Feedback: Load, Position, Speed, Input Voltage, Temperature
• Cable Length: 150mm
• Operating Temperature: -20°C to 60°C

Applications

• Heavy-duty robotic arms
• Industrial automation prototypes
• Large humanoid robots
• AGV steering/actuation
