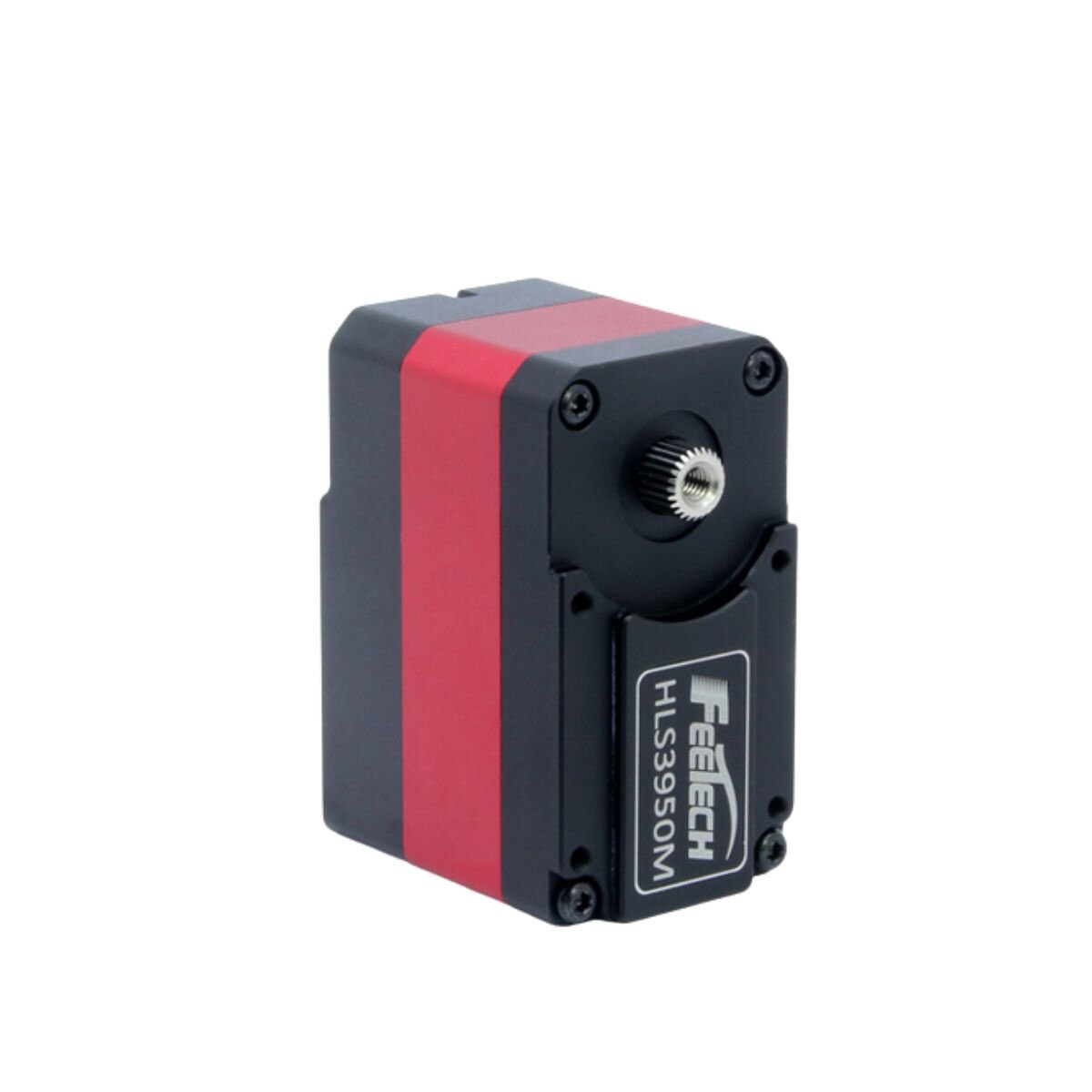

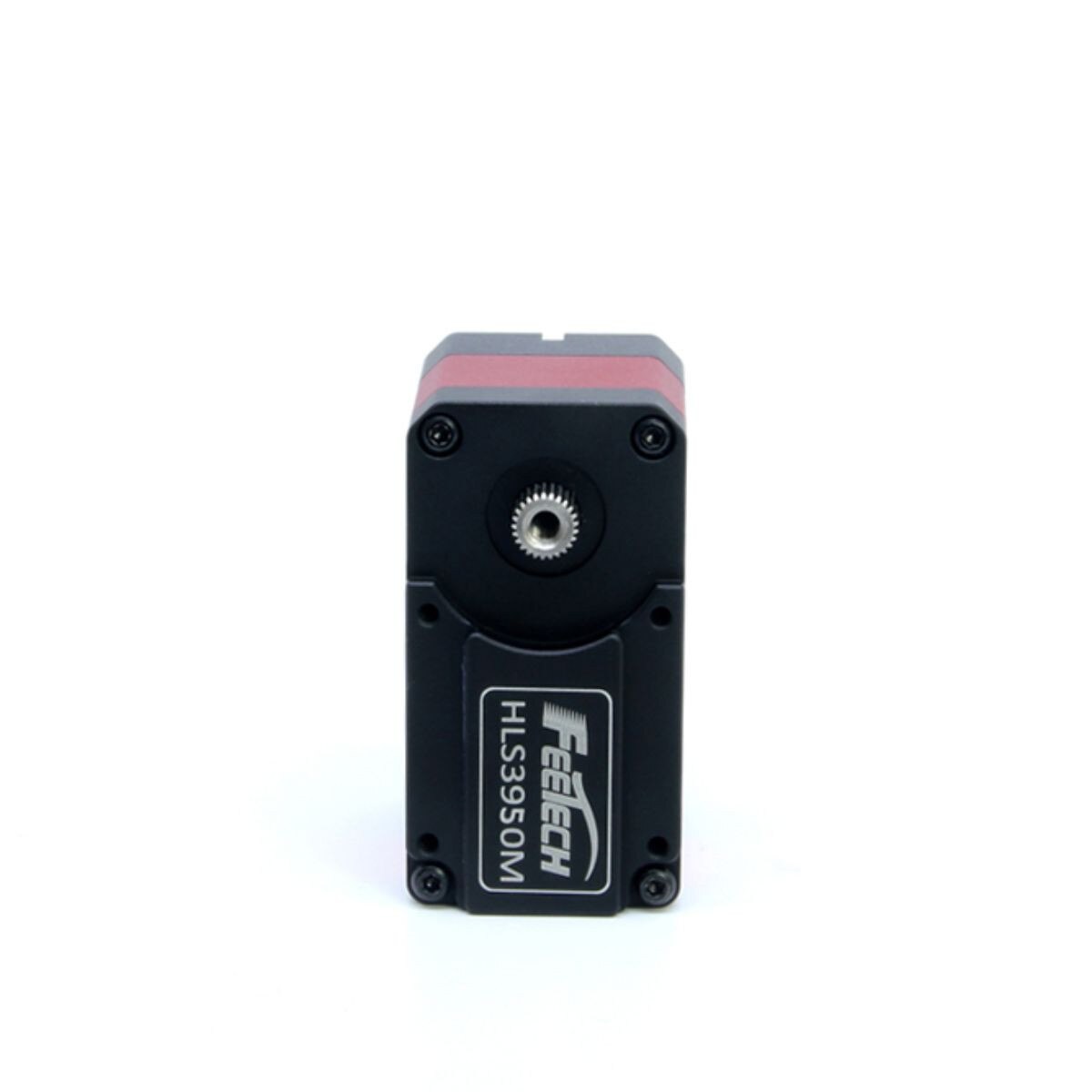

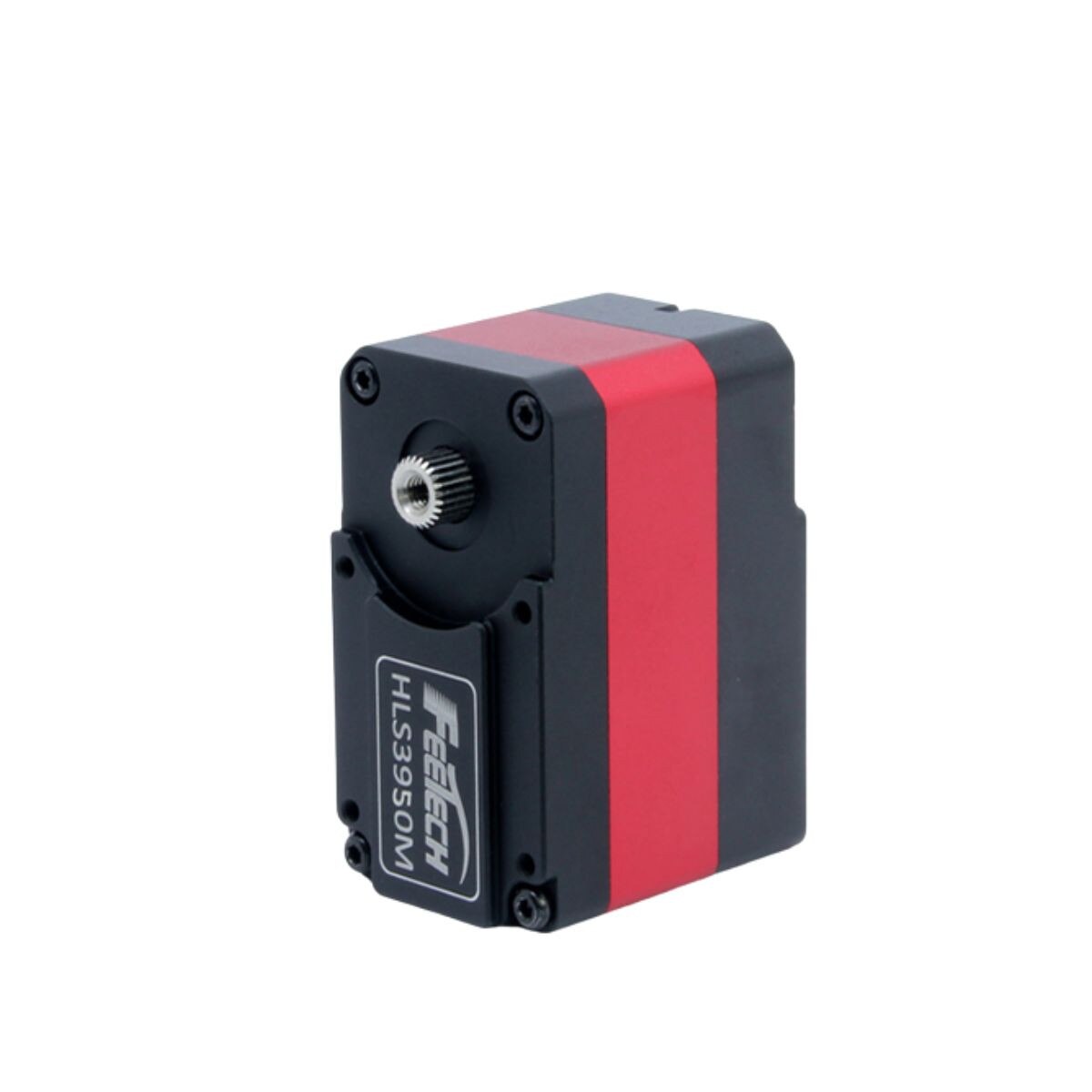

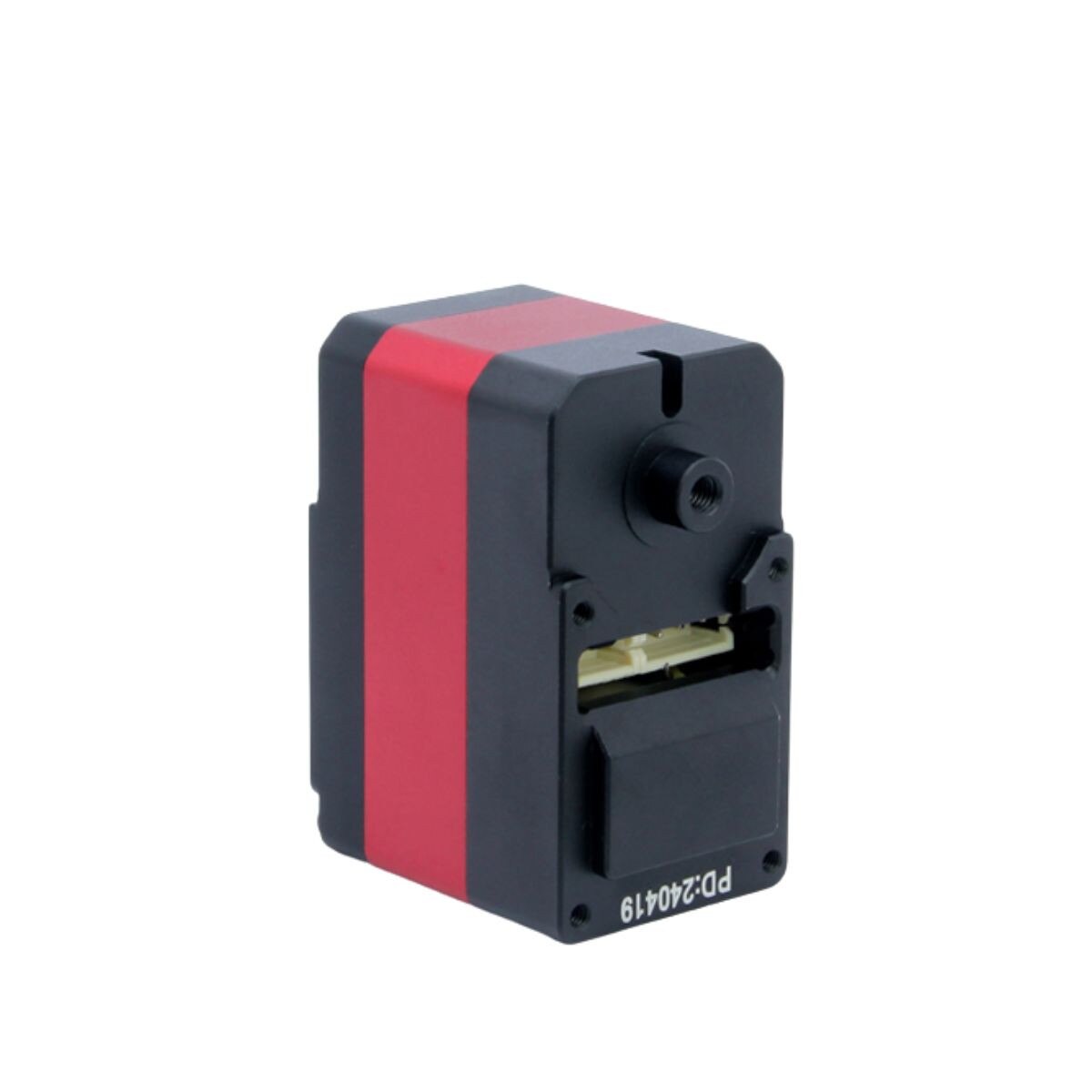

High-torque coreless servo delivering 50kg.cm (695.58oz.in) with smooth, consistent force output. Compact 45.22mm × 24.72mm × 35mm at 74.5g. Dual ball bearings.

Specifications

  • Manufacturer: FEETECH
  • Model: HLS3950M
  • SKU: HL-3950-C001
  • Stall Torque: 50kg.cm (695.58oz.in) @ 12V
  • Speed: 0.133sec/60° @ 12V
  • Dimensions: 45.22mm × 24.72mm × 35mm
  • Weight: 74.5g
  • Operating Voltage: 12V
  • Communication: Digital Packet
  • Motor Type: Coreless
  • Gear Type: Metal
  • Bearings: Dual ball bearings

Applications

  • Heavy-duty camera gimbals
  • Robotic grippers
  • Large animatronics
  • Precision positioning with heavy payloads
