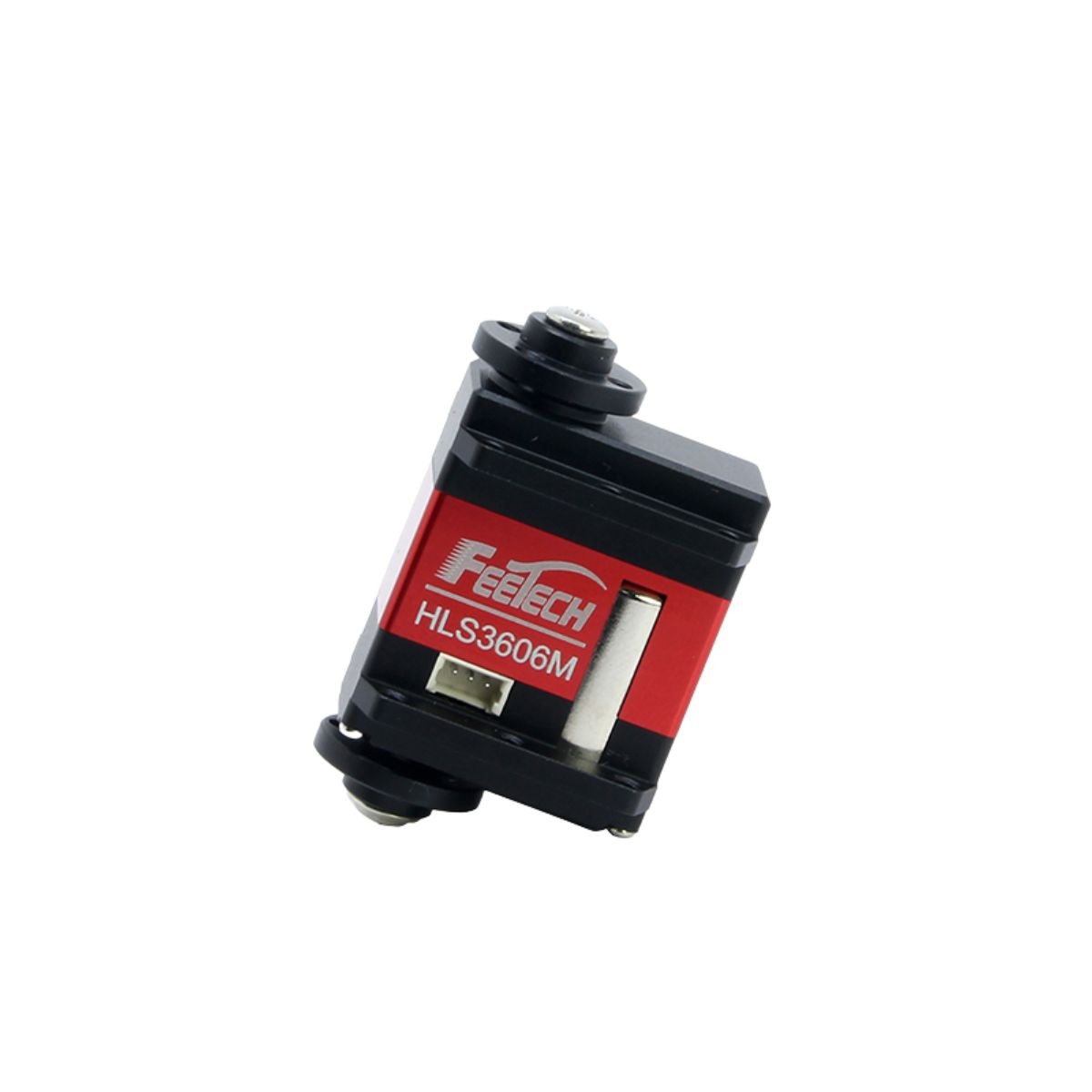

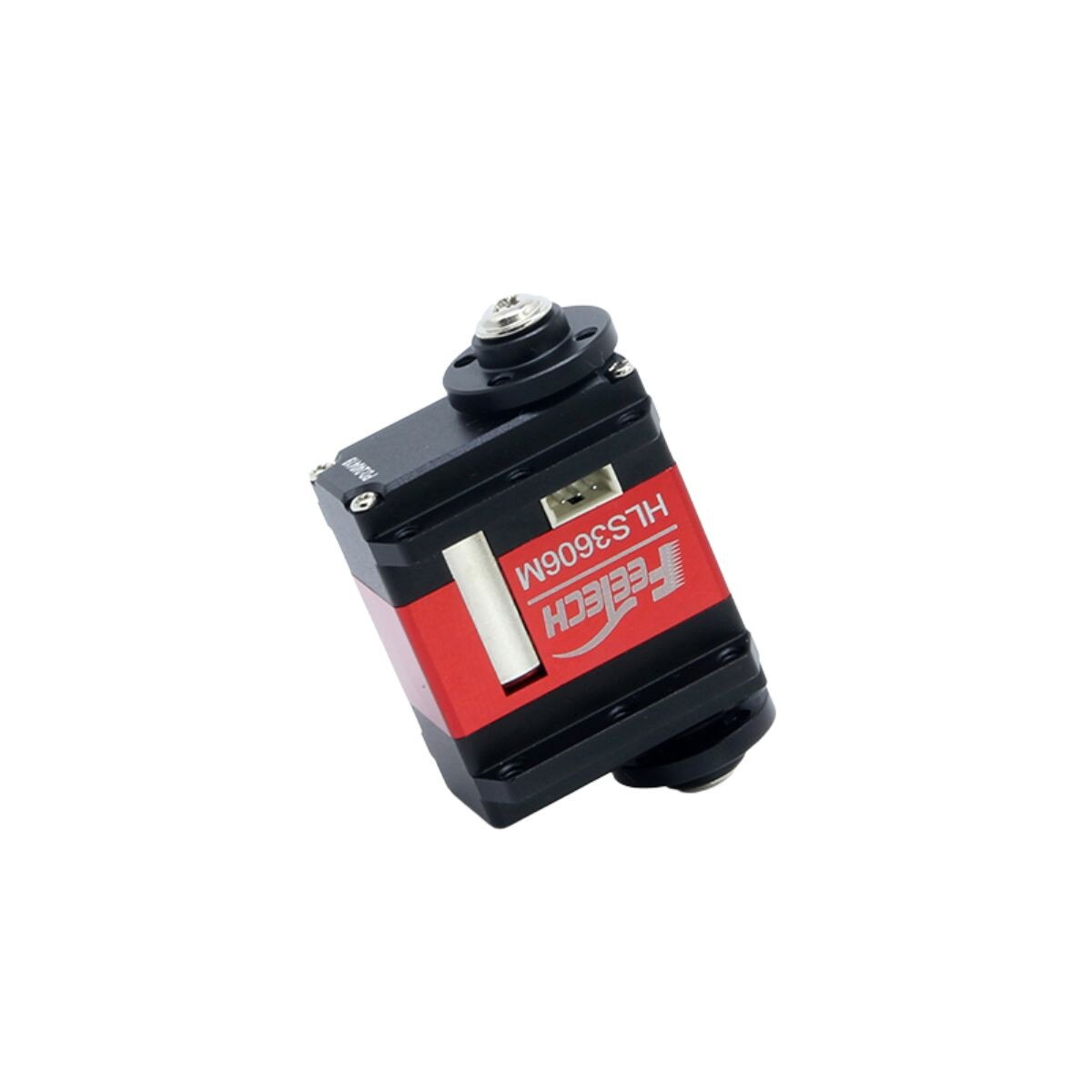

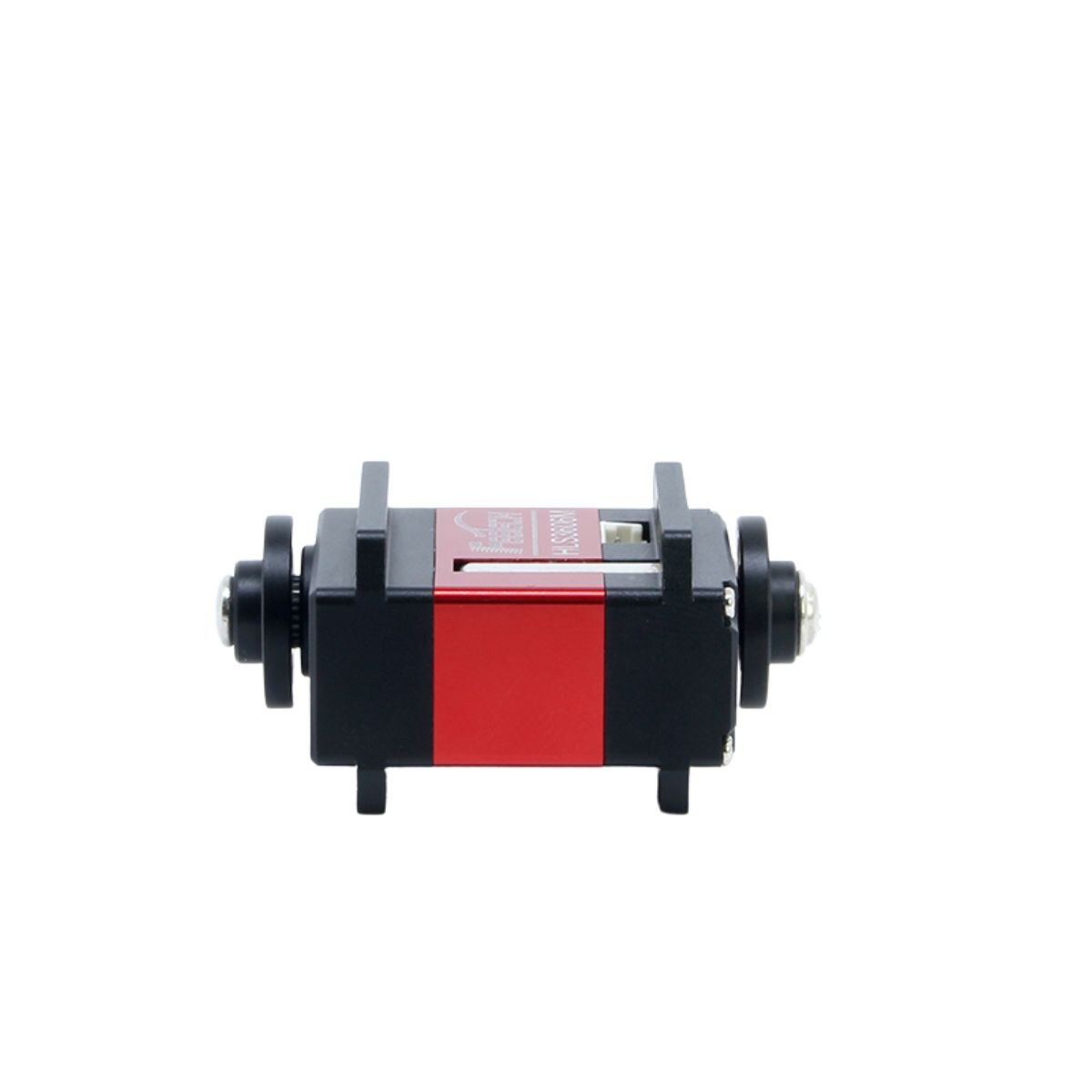

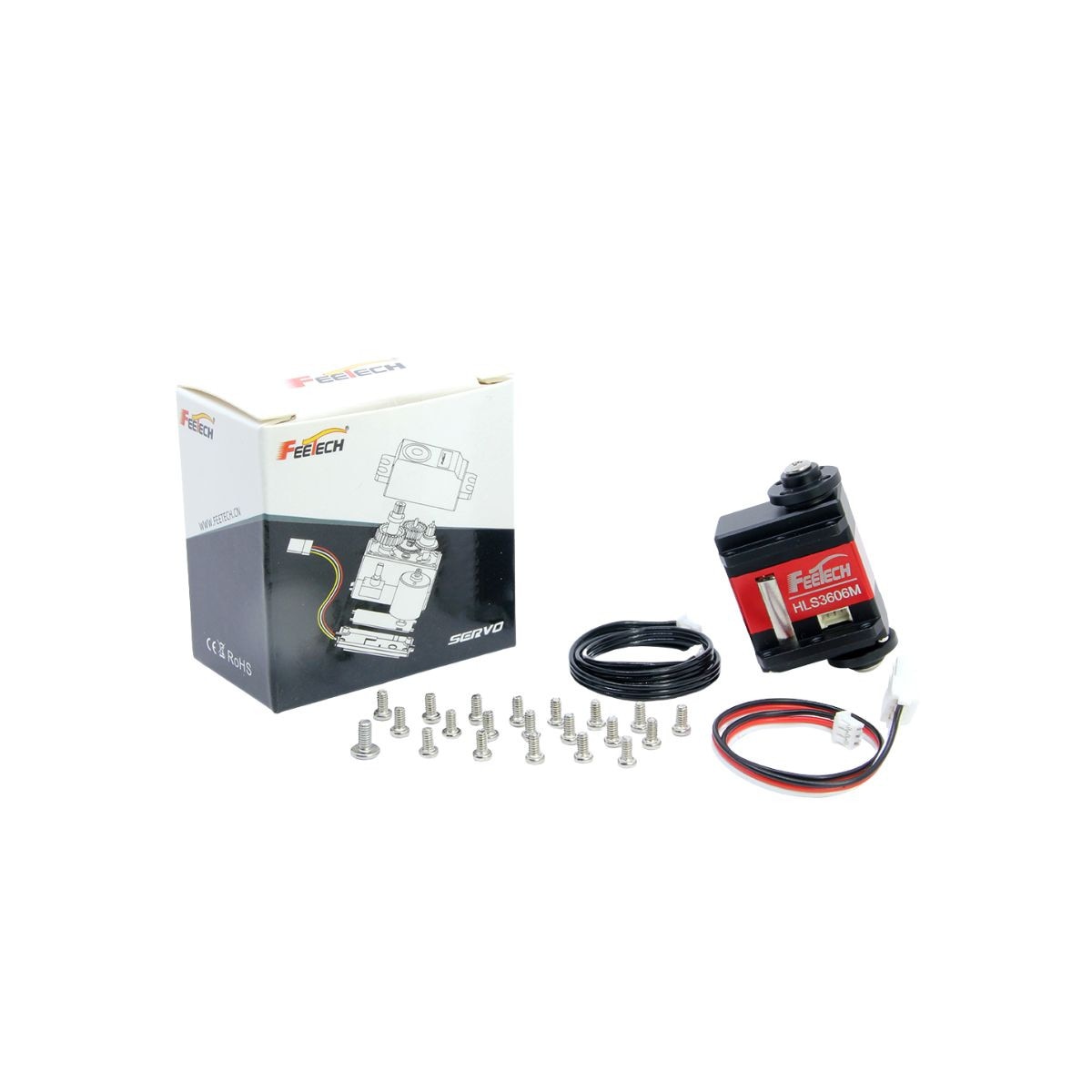

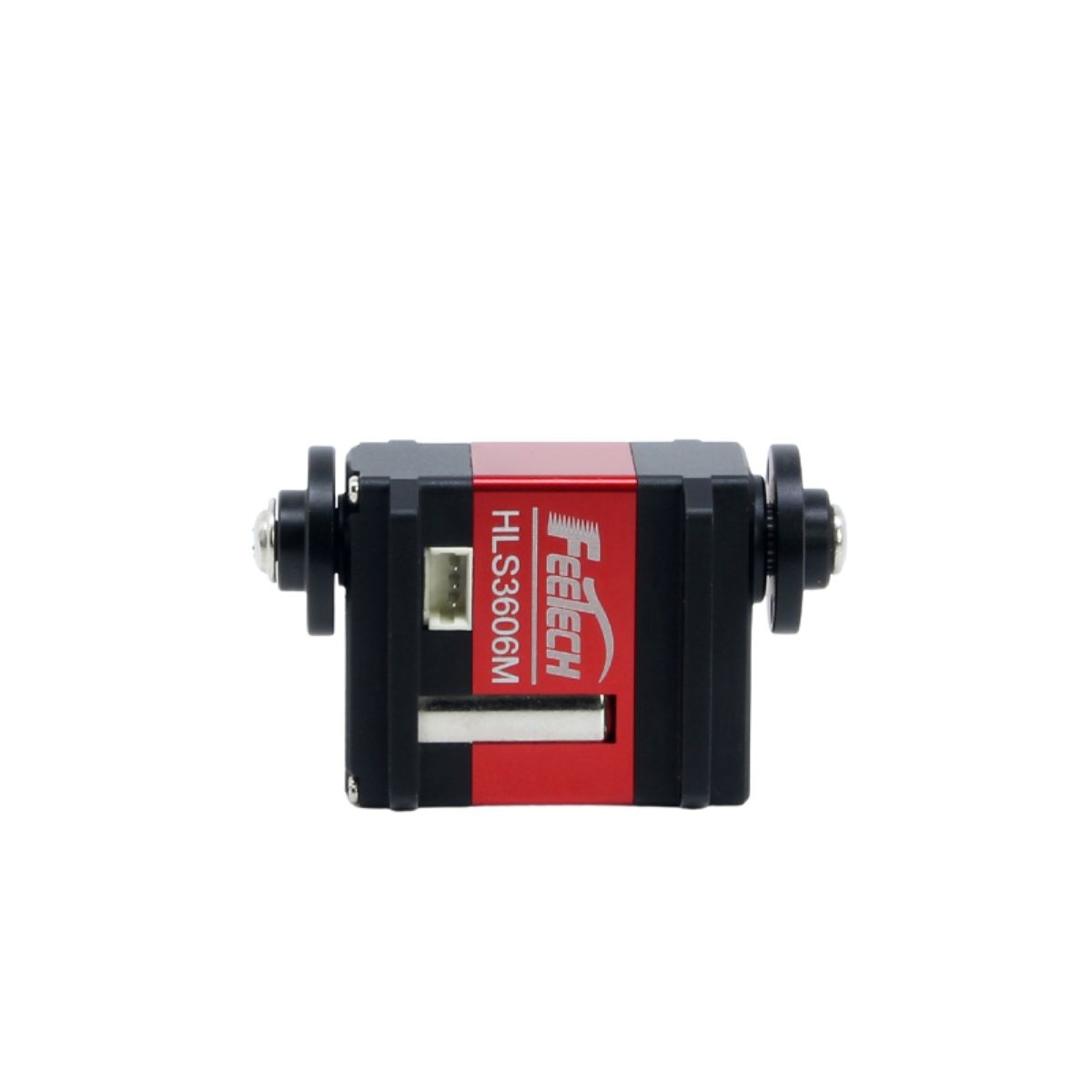

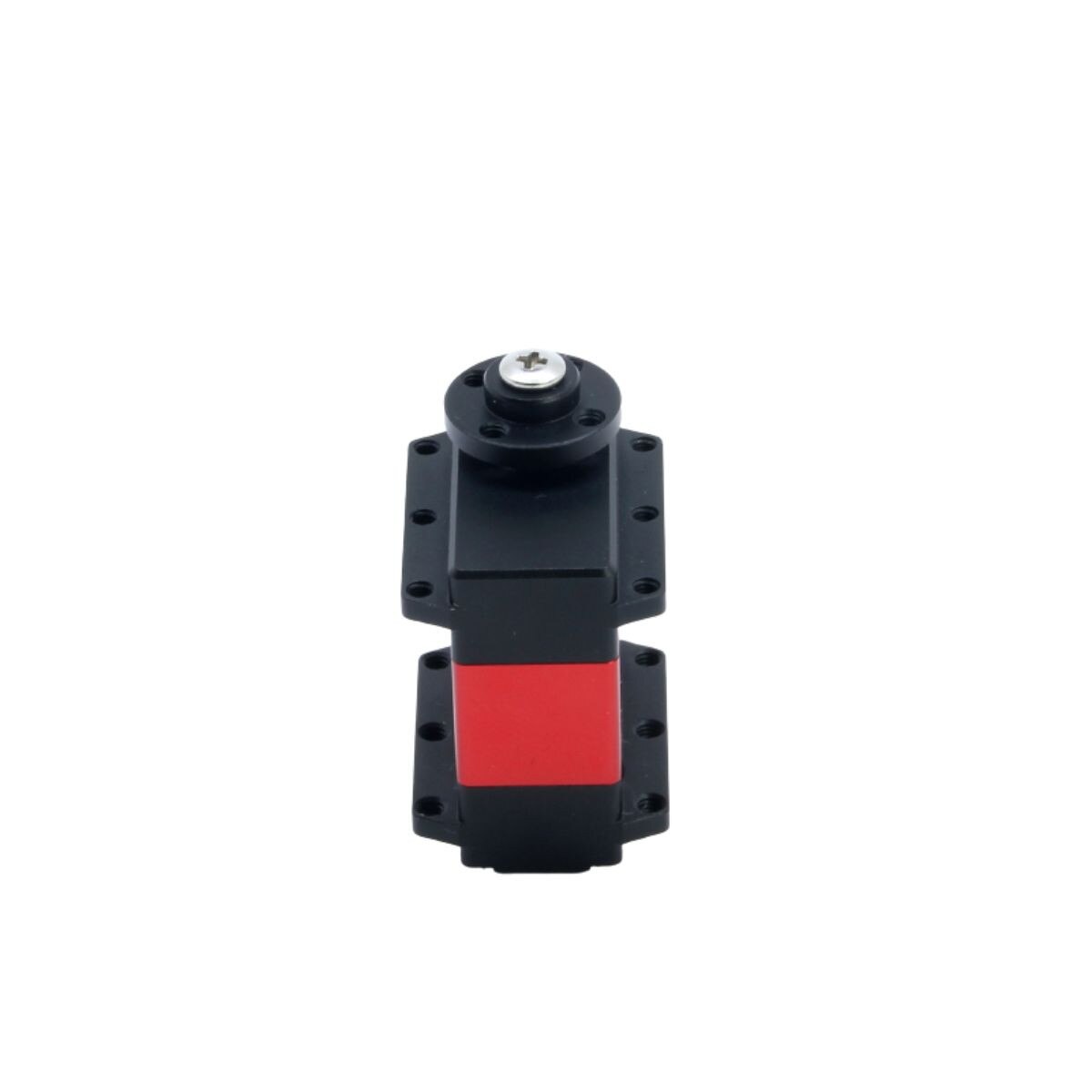

HLS3606M 6kg Constant Force Double Shaft Servo

Double-shaft variant of the constant force servo. Same smooth, jerk-free motion with dual output shafts for symmetrical designs or dual-linkage mechanisms.

Specifications

• Manufacturer: FEETECH
• Model: HLS3606M
• SKU: HL-3606-C002
• Stall Torque: 4.8kg.cm @ 4.8V | 6.0kg.cm @ 6.0V
• Speed: 0.11sec/60° @ 4.8V | 0.09sec/60° @ 6.0V
• Dimensions: 23mm × 12mm × 27.5mm
• Voltage Range: 4.8V - 6.0V
• Communication: Digital Packet
• Motor Type: Constant Force
• Shaft: Double shaft (dual output)
• Gear Type: Metal

Applications

• Symmetrical animatronic mechanisms
• Dual-linkage designs
• Professional prop builds
