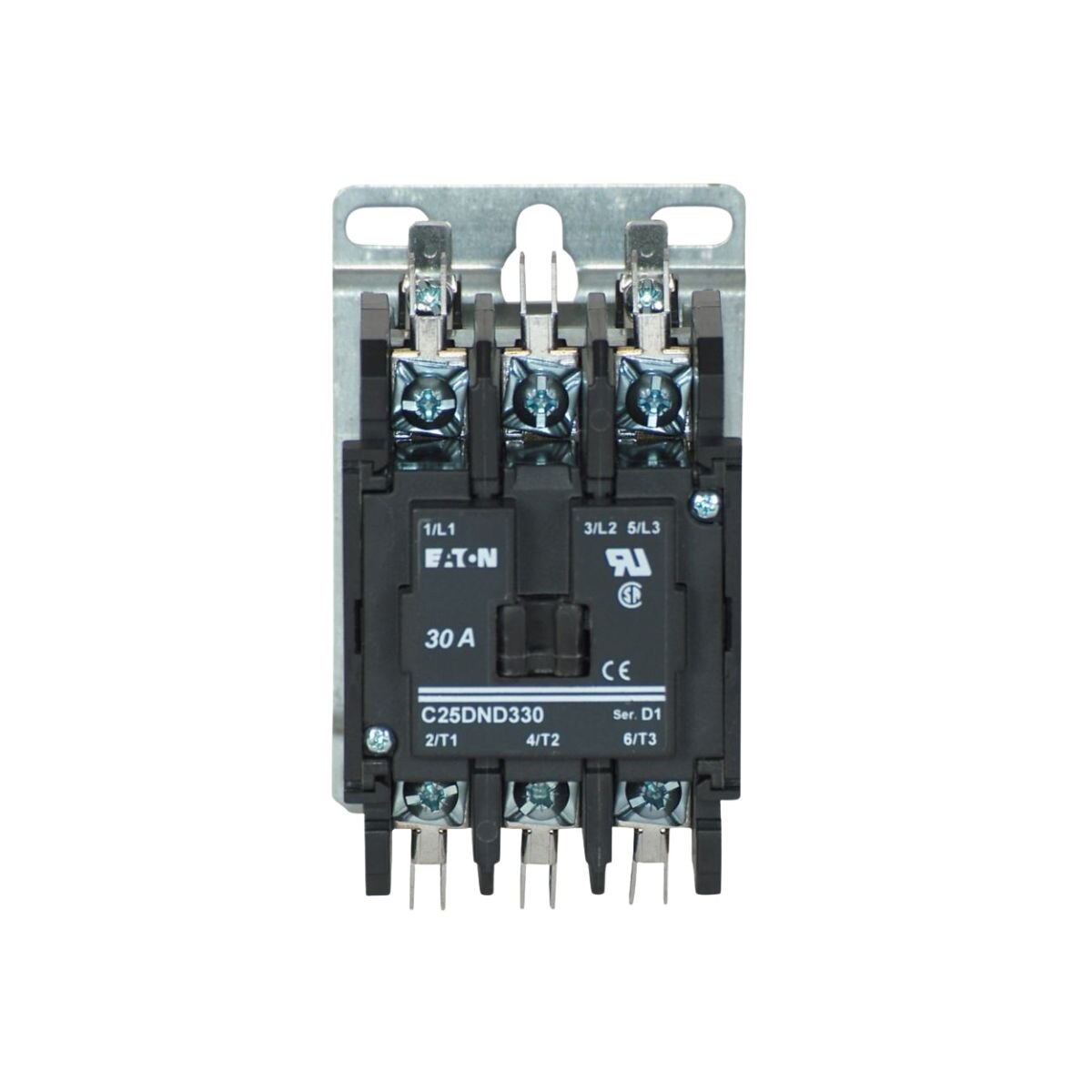

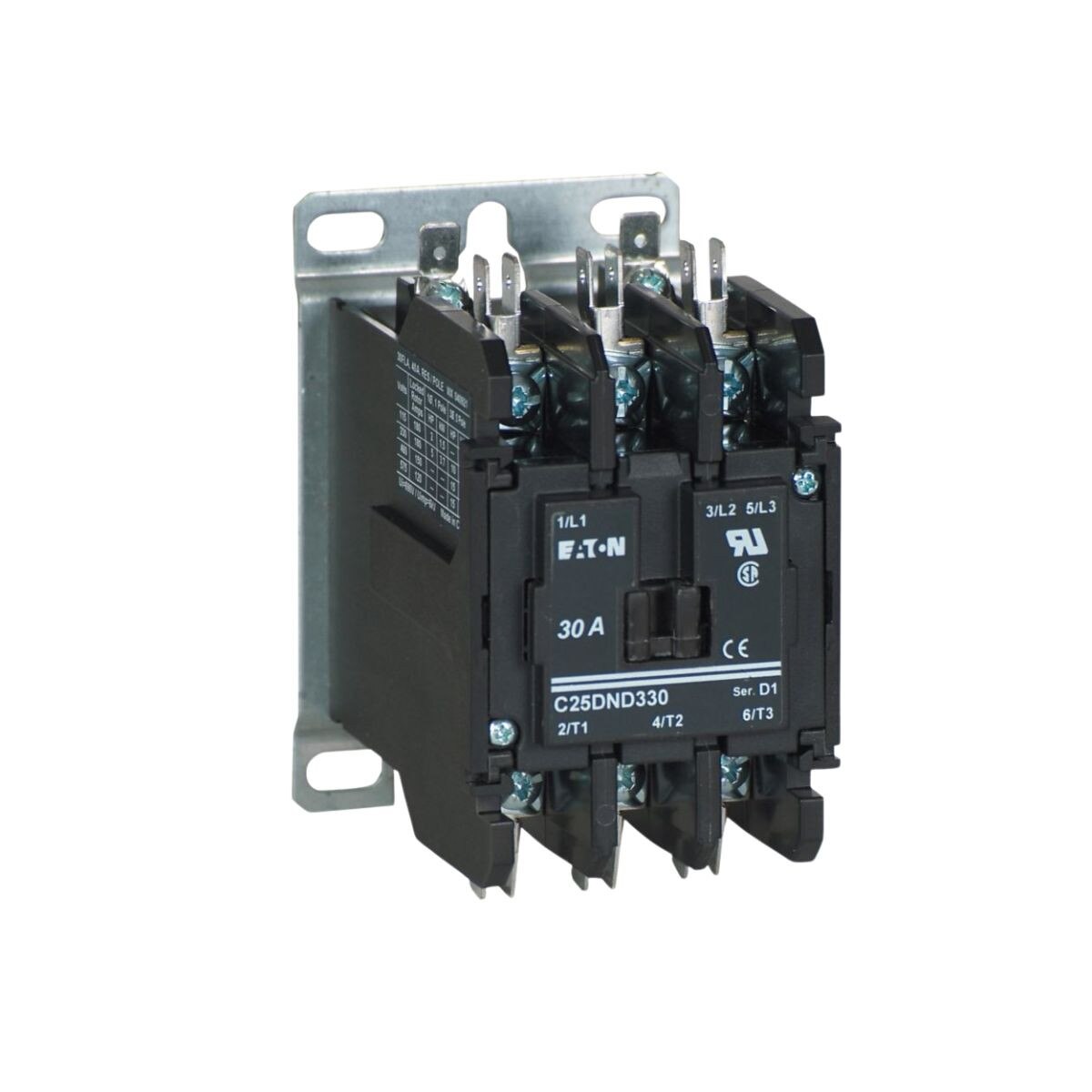

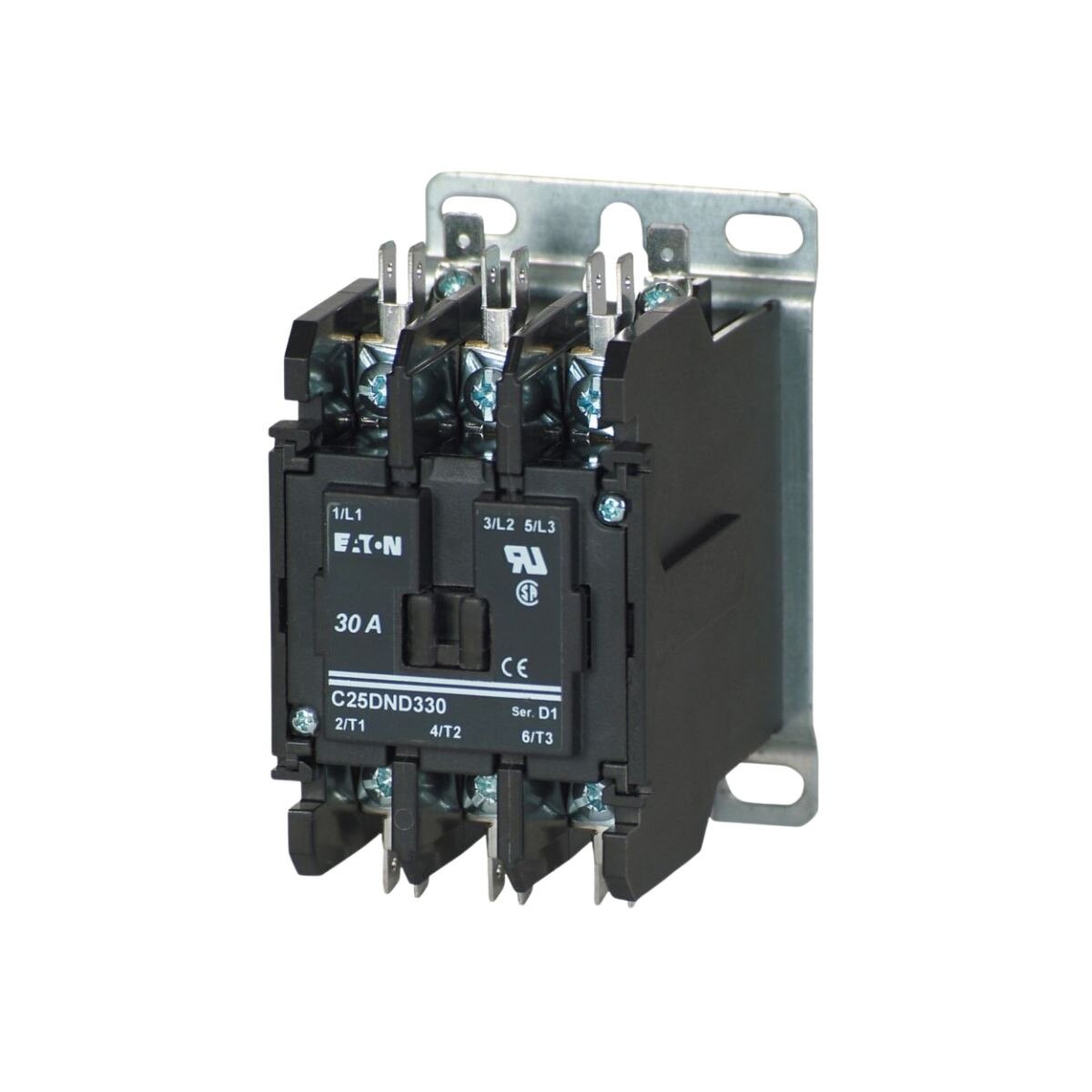

Eaton C25DND330A – 30A Definite Purpose Contactor, 3-Pole, 120V Coil

The Eaton C25DND330A is a three-pole non-reversing definite purpose contactor designed for HVAC and light industrial applications. It features a 110–120V AC coil, open-style frame with metal mounting plate, and side-by-side screw/pressure plate and quick connect terminals. Rated for 30A inductive and 40A resistive loads, this contactor is UL Recognized, CSA Certified, and RoHS Compliant.

Key Specifications

• Manufacturer: Eaton
• Series: Definite Purpose
• Part Number: C25DND330A
• Product Type: Non-Reversing Contactor
• Poles: 3
• Amperage Rating: 30A (Inductive), 40A (Resistive)
• Voltage Rating: 110–120V Coil, 50/60 Hz
• Mounting Style: Open with Metal Mounting Plate
• Terminals: Screw/Pressure Plate and Quick Connect
• Frame Size: 15–50A (Two- and Three-Pole)
• Connection Type: Quick
• Dimensions: 3.35" L × 2.4" W × 2.5" H
• Certifications: UL Recognized, CSA Certified
• Compliances: RoHS Compliant
