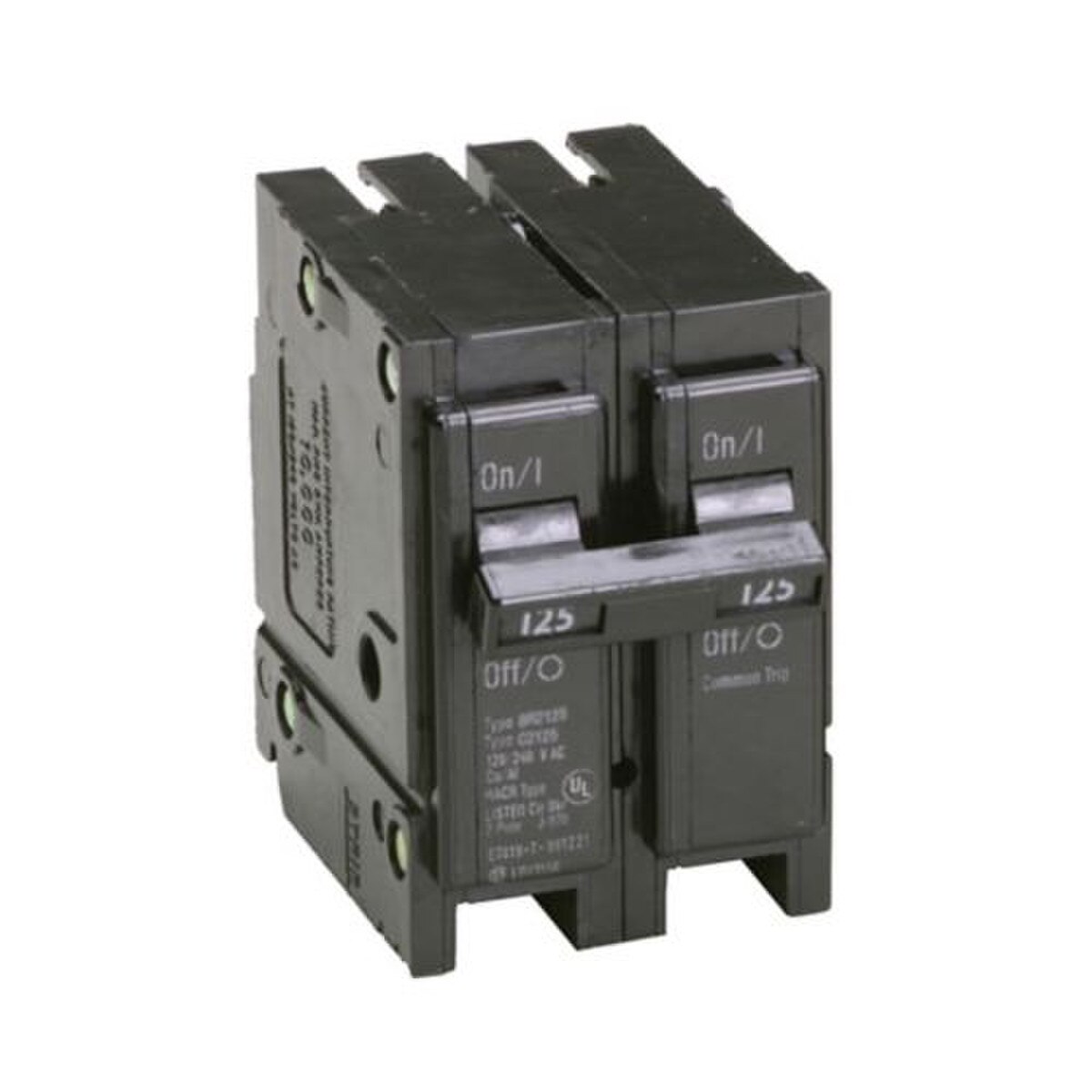

Eaton BR2125 – 125A Type BR Plug-On Circuit Breaker, 2-Pole, 120/240V
Details
The Eaton BR2125 is a 125A thermal magnetic circuit breaker designed for residential and light commercial applications. It features a Type BR 1-Inch plug-on design, common breaker trip, and two-pole configuration. With a 10 kAIC interrupt rating and 120/240V voltage rating, this breaker is compatible with Type BR Loadcenters and supports #4–2/0 AWG Cu/Al wire sizes. UL Listed and CSA Certified for dependable protection.
Key Specifications
- Manufacturer: Eaton
- Part Number: BR2125
- Type: Type BR 1-Inch Plug-On Thermal Magnetic Circuit Breaker
- Amperage Rating: 125 A
- Interrupt Rating: 10 kAIC
- Voltage Rating: 120/240 V
- Trip Type: Common Breaker Trip
- Mounting Method: Plug-on
- Number of Poles: 2
- Wire Size: #4–2/0 AWG Cu/Al
- Used With: Type BR Loadcenters
- Dimensions: 3" L × 2" W × 3" H
- Certifications: UL Listed, CSA Certified
