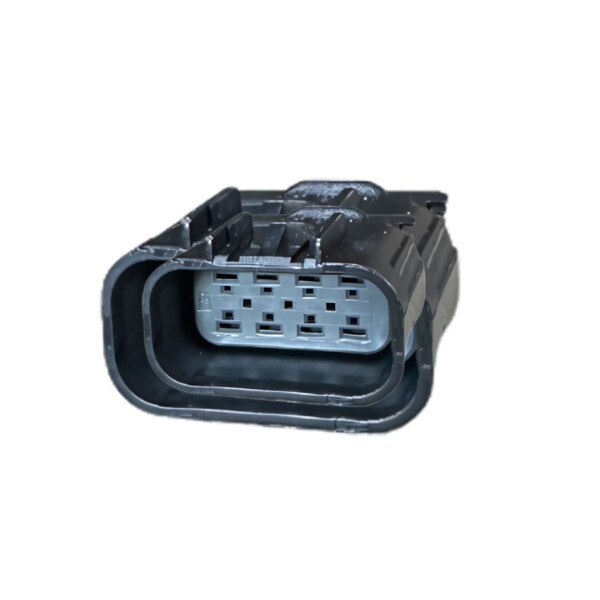

Aptiv 15326655-B – GT 280 8-Way Male Connector

The Aptiv 15326655-B is an 8-way male connector from the GT 280 Series, designed for 22–20 AWG wire. It features a black nylon housing, crimp termination, and locking lance mechanism. Suitable for cable mount applications in automotive systems.

Key Specifications

• Manufacturer: Aptiv
• Part Number: 15326655-B
• Series: GT 280
• Product Type: Connector
• Gender: Male
• Number of Positions: 8
• Wire Gauge Range: 22 AWG to 20 AWG
• Material: Nylon
• Color: Black
• Mounting Style: Cable Mount / Free Hanging
• Termination Style: Crimp
• Current Rating: 25 A
• Dimensions: 43.4 mm L × 36.8 mm W × 25.5 mm H
• Operating Temperature: -40°C to +125°C
• Certifications: RoHS Compliant
