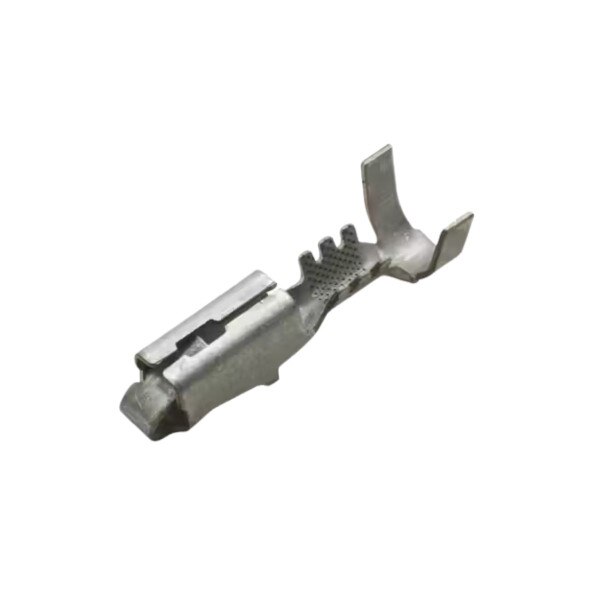

Aptiv 12077413 – Metri-Pack 280 Female Terminal
Details
The Aptiv 12077413 is a female terminal from the Metri-Pack 280 Series, designed for 3.65–3.49 mm cable insulation diameter. It features tin-plated copper alloy contacts, crimp termination, and locking lance mechanism. Rated for 30 A and suitable for automotive systems.
Key Specifications
- Manufacturer: Aptiv
- Part Number: 12077413
- Series: Metri-Pack 280
- Product Type: Terminal
- Gender: Female
- Cable Diameter: 3.65 mm to 3.49 mm
- Contact Material: Copper Alloy
- Contact Plating: Tin
- Termination Style: Crimp
- Current Rating: 30 A
- Mounting Style: Cable Mount / Free Hanging
- Operating Temperature: -40°C to +125°C
- Certifications: RoHS Compliant
