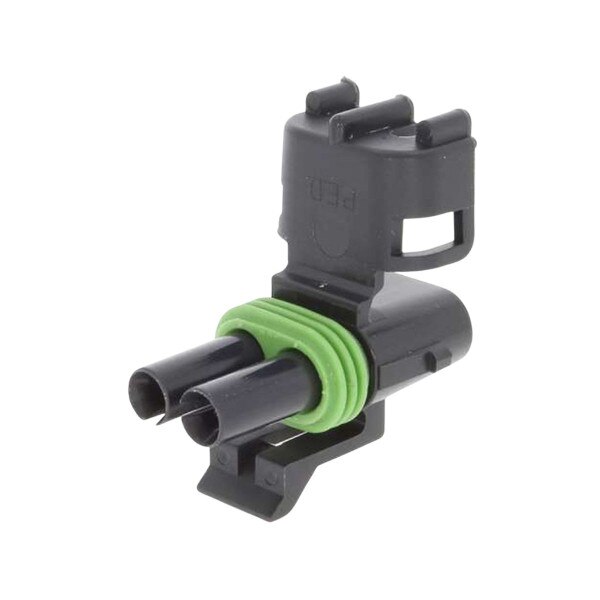

Aptiv 12015792 – Weather-Pack 2-Way Female Connector

The Aptiv 12015792 is a 2-way female connector from the Weather-Pack Series. It features a black nylon housing, crimp termination, and cavity lock mechanism. Suitable for cable mount applications in automotive systems.

Key Specifications

• Manufacturer: Aptiv
• Part Number: 12015792
• Series: Weather-Pack
• Product Type: Connector
• Gender: Female
• Number of Positions: 2
• Material: Nylon
• Color: Black
• Mounting Style: Cable Mount / Free Hanging
• Termination Style: Crimp
• Current Rating: 20 A
• Dimensions: 40.8 mm L × 21.5 mm W × 20.8 mm H
• Operating Temperature: -40°C to +125°C
• Certifications: RoHS Compliant
