3M Scotchlok 314 IDC Connector – 22–14 AWG
Details

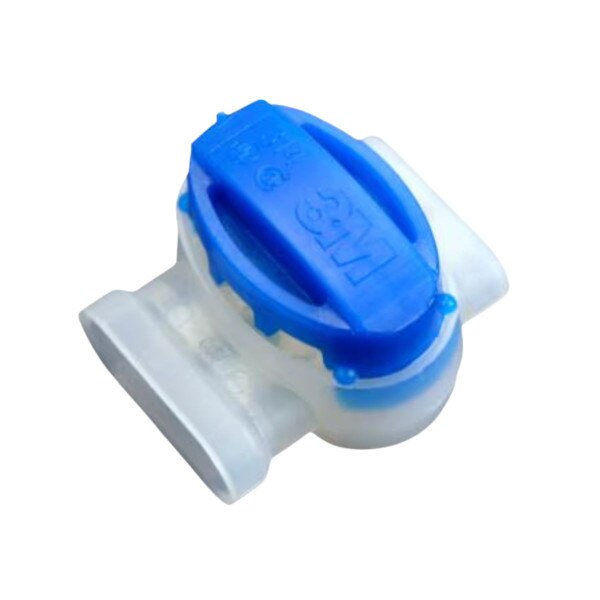

The 3M™ Scotchlok™ IDC Connector 314 is a moisture-resistant, nylon-insulated connector designed to join 2 or 3 wires quickly and securely. Featuring a blue cap and white body, it accommodates 22 to 14 AWG solid or stranded conductors. The brass element provides excellent conductivity, while tin plating enhances corrosion resistance. A mineral oil-based grease helps seal out moisture, making it ideal for low-voltage applications in harsh environments. UL Listed, CSA Certified, and RoHS compliant.
Key Specifications
- Manufacturer: 3M
- Series: Scotchlok IDC Connectors
- Model: 314
- Part Number: 314
- Connection Type: Pigtail
- Contact Material: Brass, tin-plated
- Wire Size: 22–14 AWG (0.34–2.5 mm²)
- Insulation Material: Flame-retardant nylon
- Color: Blue cap, white body
- Moisture Resistant: Yes – grease-filled
- Voltage Rating: 600V (building wire), 1000V (signs/fixtures)
- Temperature Rating: 221°F (105°C)
- Certifications: UL Listed, CSA Certified, RoHS 2011/65/EU
- Recommended Tool: E-9BM or slip joint pliers
