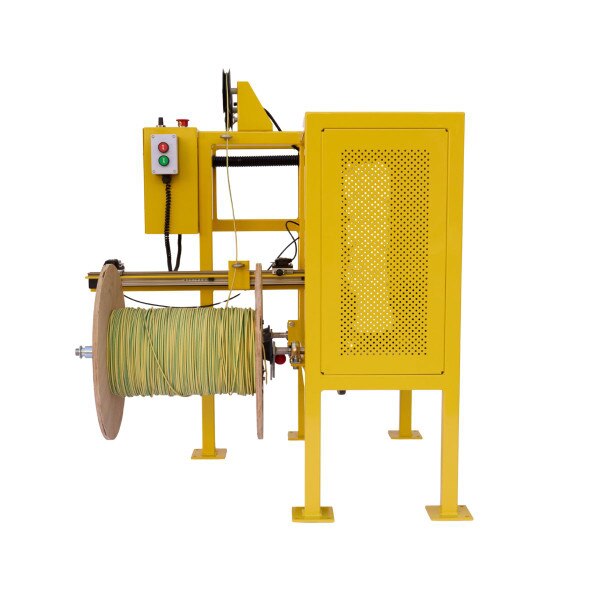

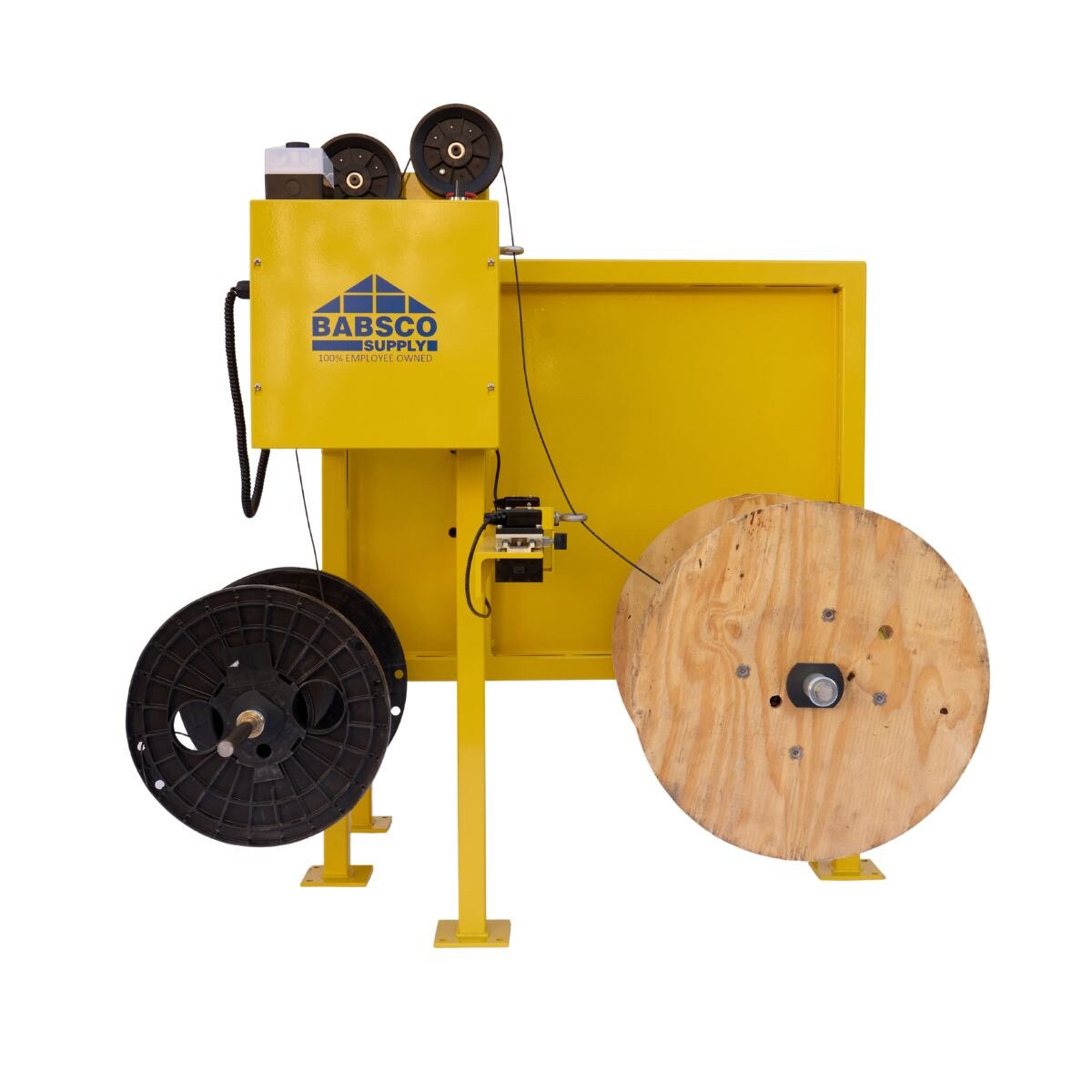

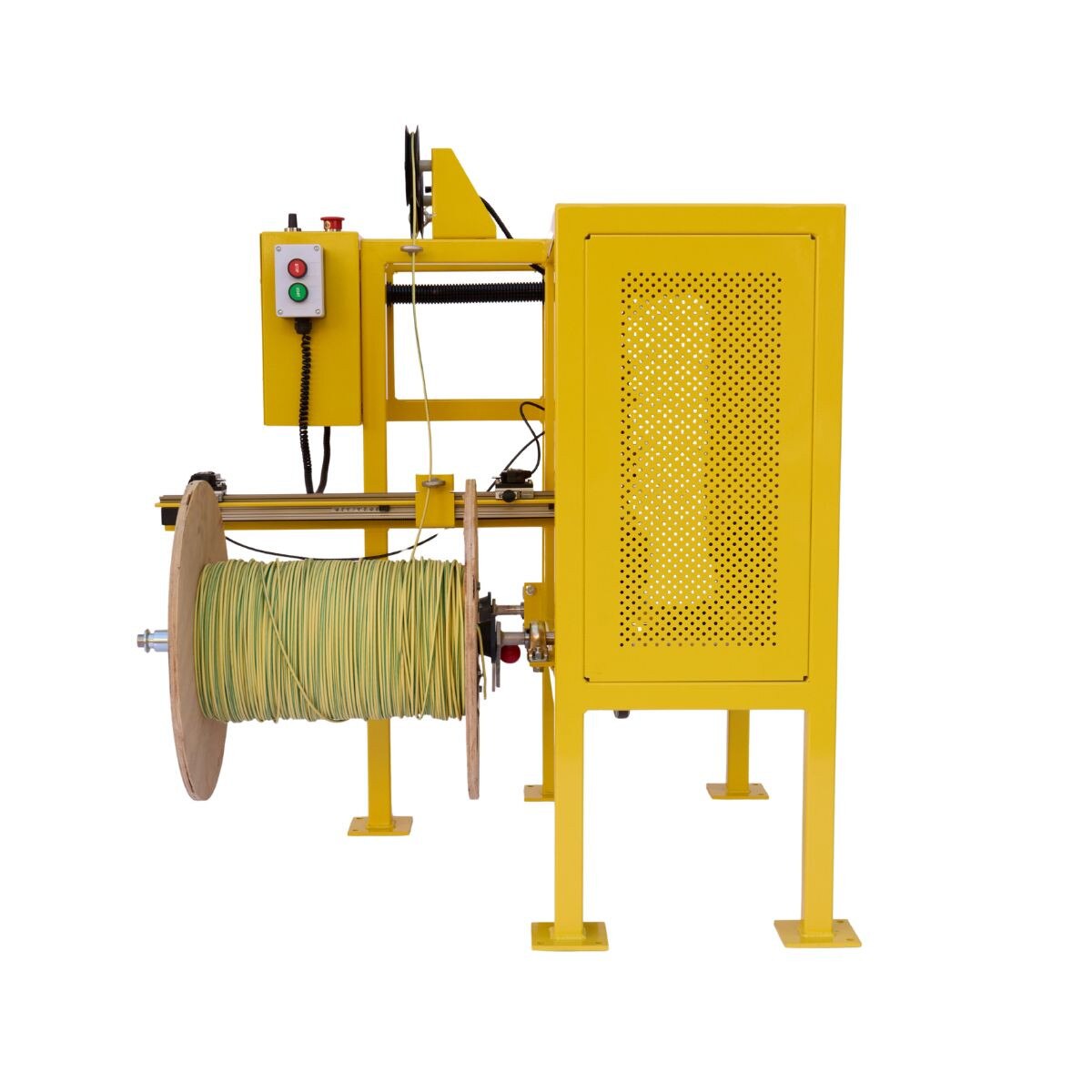

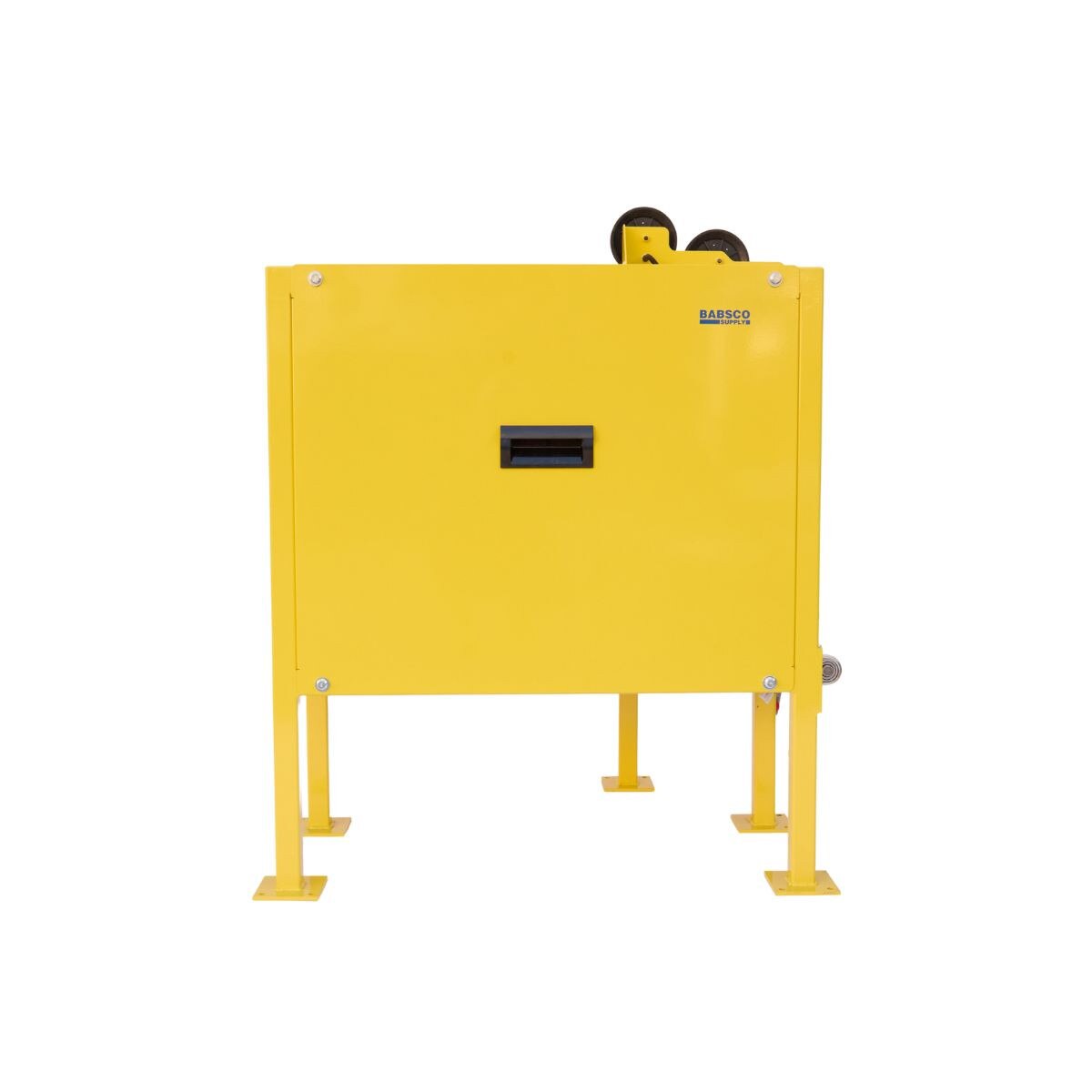

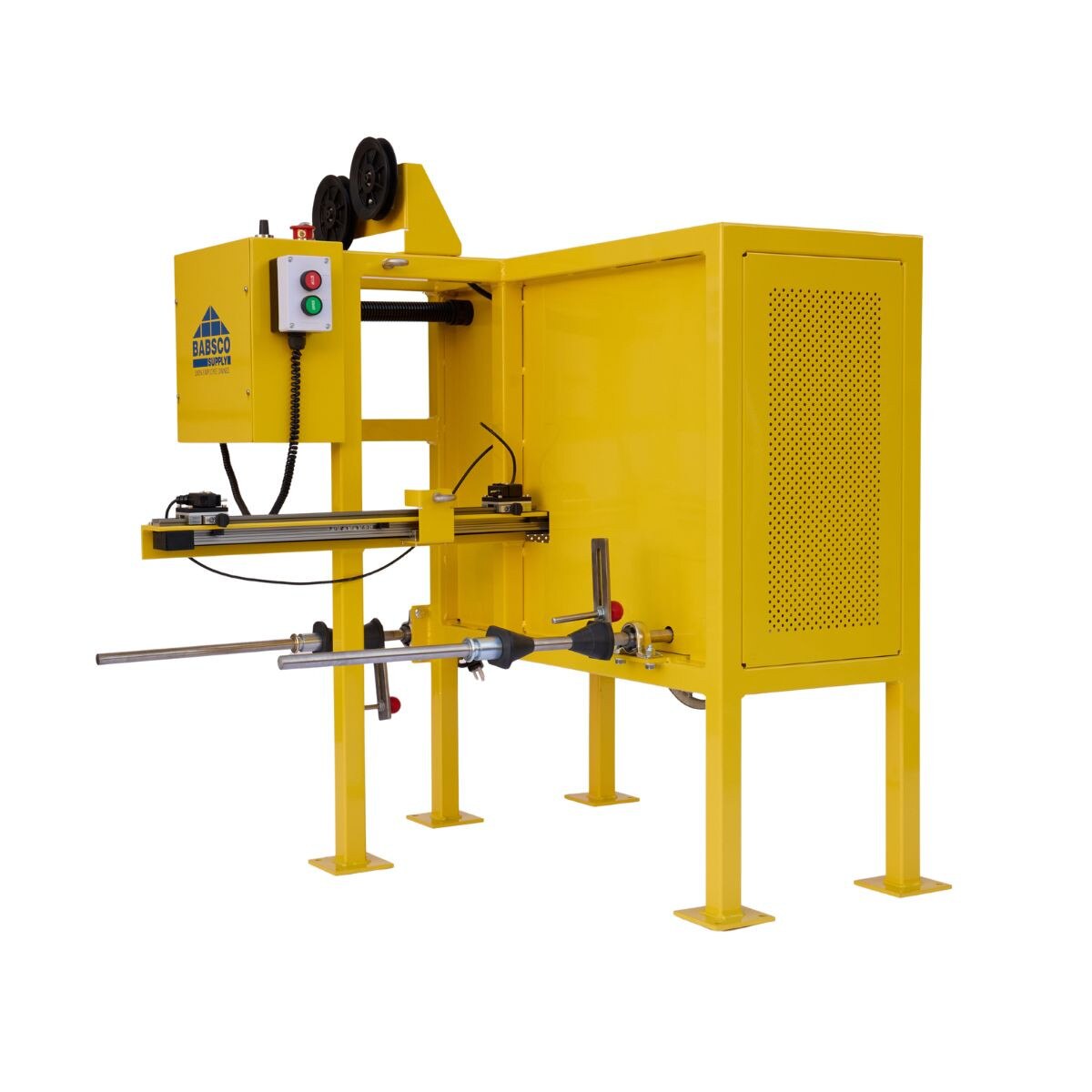

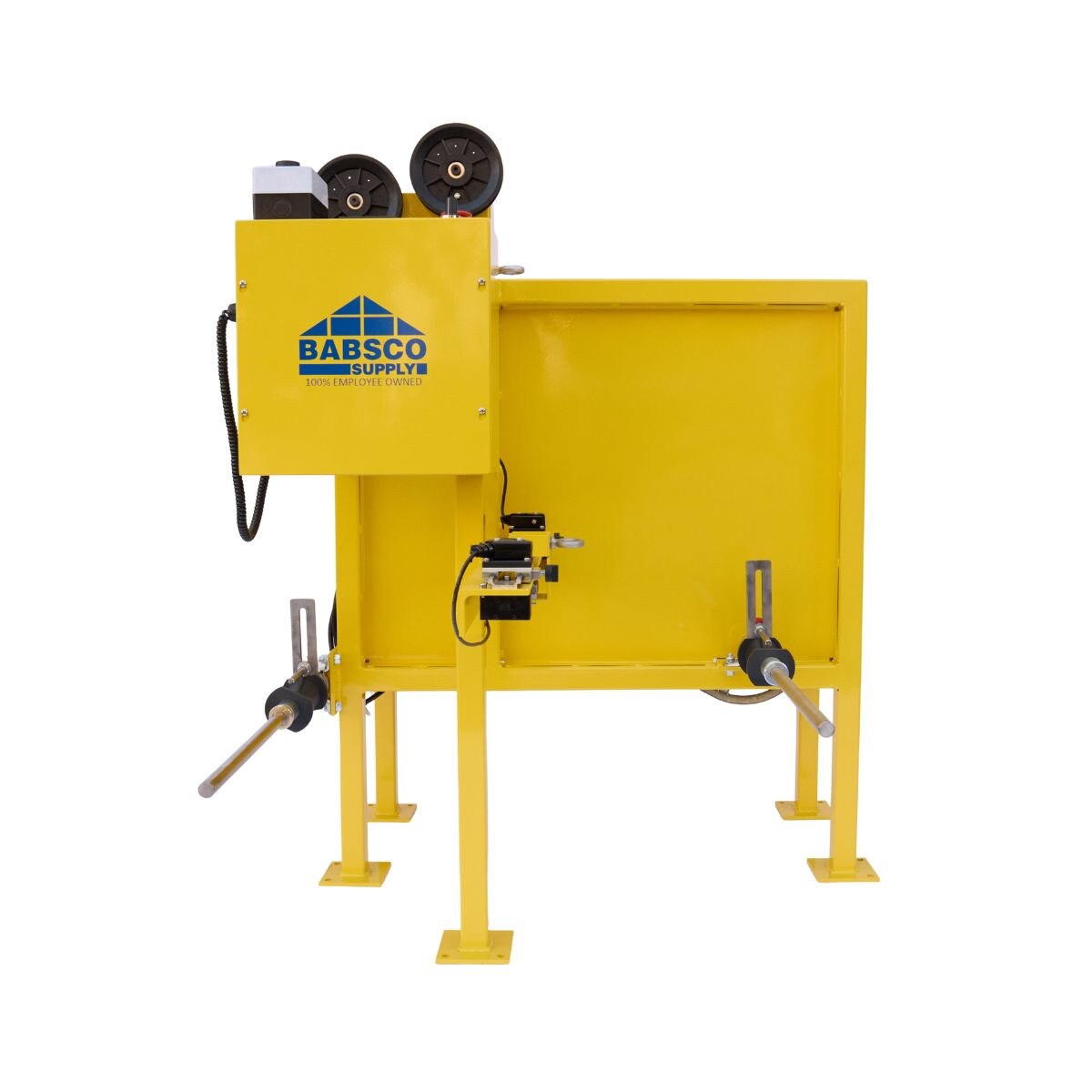

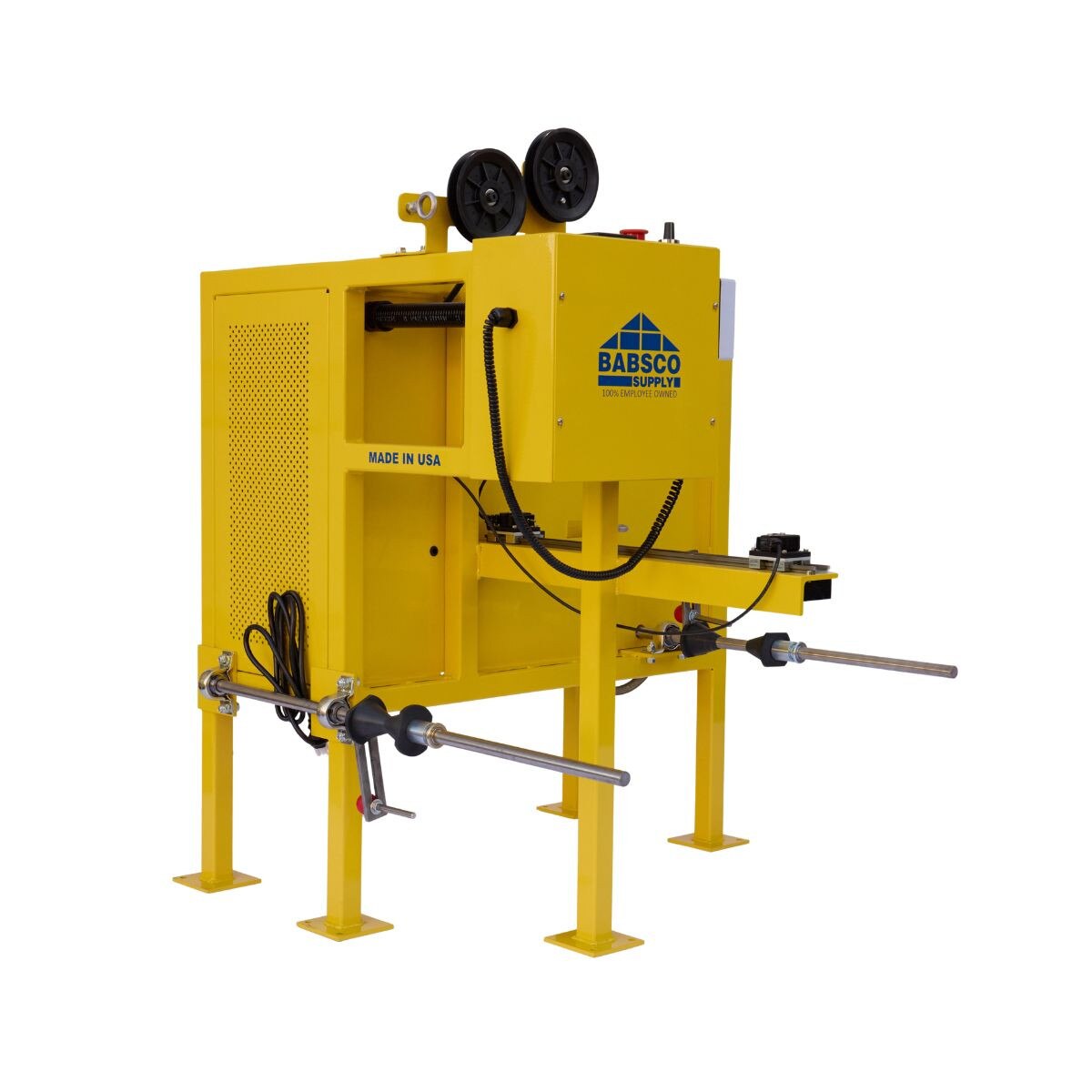

SpoolPro™ Automated Wire Spooler – 90 lb Capacity, 350 RPM
Details
The SpoolPro™ Automated Wire Spooler is built for speed, accuracy, and durability. Developed by BABSCO Creations in collaboration with SHAKO Technology, this machine solves common wire handling challenges with precision engineering and field-tested reliability. Whether you're cutting drop-off wire or prepping reels for job sites, the SpoolPro™ keeps operations smooth and efficient.
Shipping is free — no freight charges, no surprises. Units ship mounted to a skid and enclosed in a protective crate by default. Typical crated dimensions range from 46–48" W × 52–53" H × 46–48" D, with weight up to 410 lb. Freight class and NMFC may vary depending on crate style. Contact us if you need finalized shipping specs.
Key Specifications
- Manufacturer: BABSCO Creations
- Product Name: SpoolPro™ Automated Wire Spooler
- Product Type: Wire Spooling Machine
- Reel Capacity: Up to 90 lb
- Reel Diameter: Up to 18"
- Reel Width: Up to 16"
- Center Hole Range: 0.75" – 2.125"
- Torque: 4.0 ft-lb at reel drive shaft
- Speed Control: Variable, up to 350 RPM
- Measurement Accuracy: 0–3% error, resolution 1 ft
- Max Measured Length: 9,999 ft
- Wire Compatibility: Stranded wire up to 8 AWG and smaller multi-conductors
- Power Supply: 120 VAC, 10 ft cord

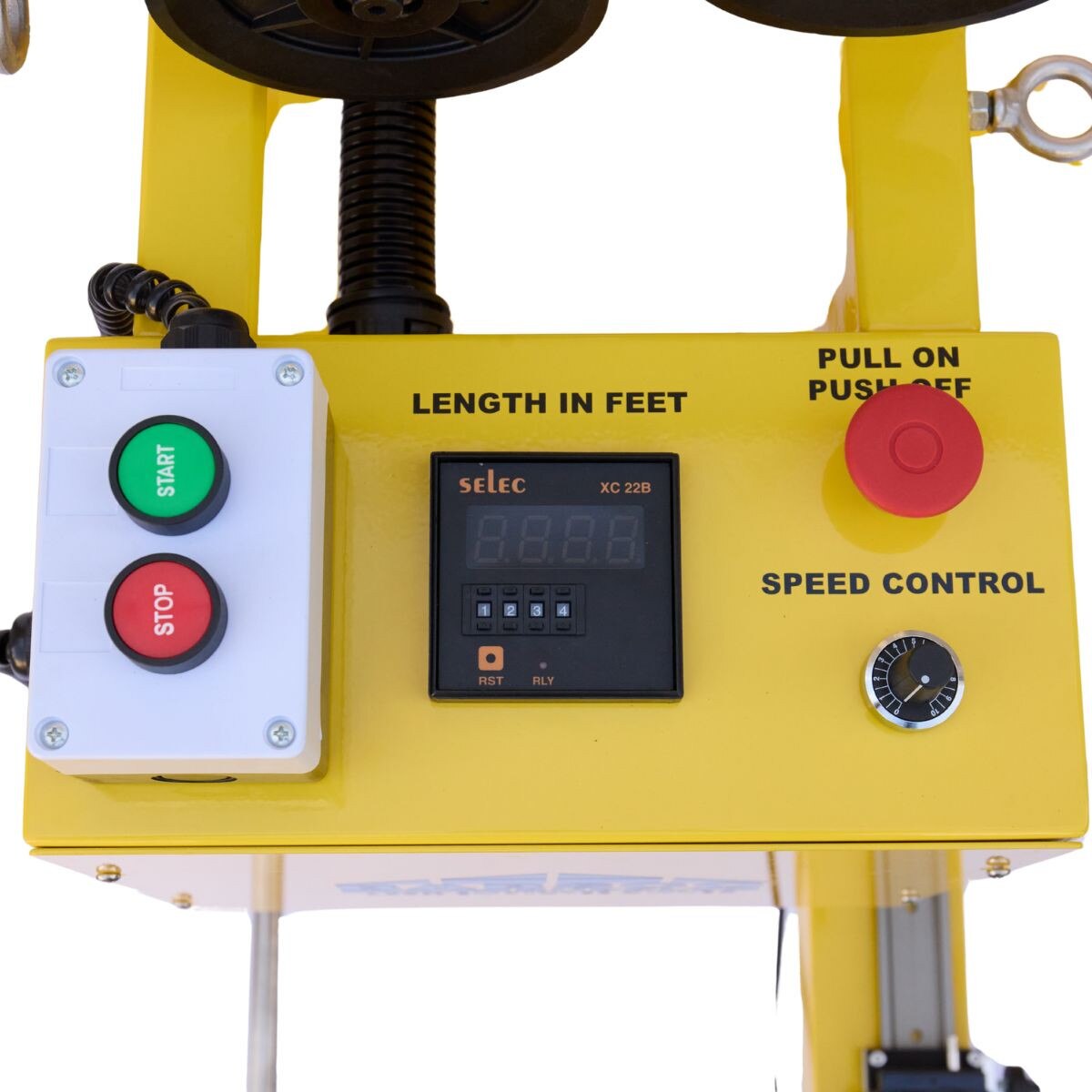

- Remote Control: Magnetic-mount wired remote
- Mounting Type: Free-standing
- Maintenance: Field-replaceable parts
- Application: Wire spooling for contractors, OEMs, and job sites
