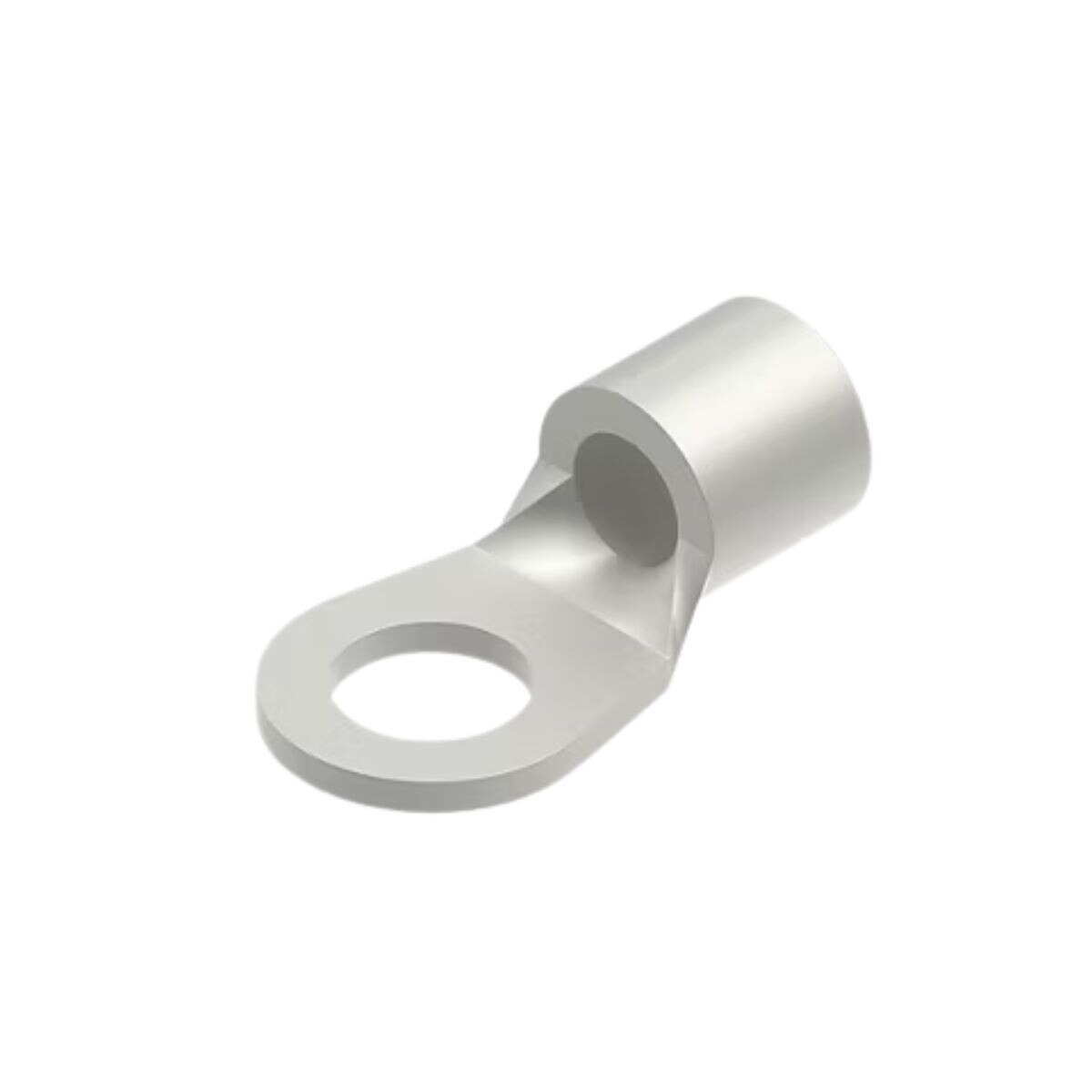

Molex VersaKrimp 191930264 – Ring Terminal, 4 AWG, 3/8" Stud
Details
The Molex 191930264 VersaKrimp Ring Tongue Terminal is a high-performance solderless terminal designed for 4 AWG wire. Part of the 19193 series, this terminal features a closed-brazed barrel for secure crimp or compression termination and a tin-plated copper contact for excellent conductivity and corrosion resistance. With a stud size of 3/8" (M9), it is ideal for heavy-duty electrical applications. Rated for 600V and operating temperatures from -55°C to +125°C, this terminal is UL and CSA certified and packaged in a carton for bulk use.
Key Specifications
- Manufacturer: Molex
- Product Line: VersaKrimp
- Series: 19193
- Part Number: 191930264
- Product Type: Ring Terminal
- Wire Size: 4 AWG (25.00 mm²)
- Stud Size: 3/8" (M9)
- Barrel Type: Closed – Brazed
- Termination Method: Crimp or Compression
- Contact Material: Copper
- Plating: Tin
- Voltage Rating: 600V
- Operating Temperature: -55°C to +125°C
- Certifications: UL E32244, CSA LR18689
