Molex VersaKrimp 191930248 – Ring Terminal, 6 AWG, 1/4" Stud
Details

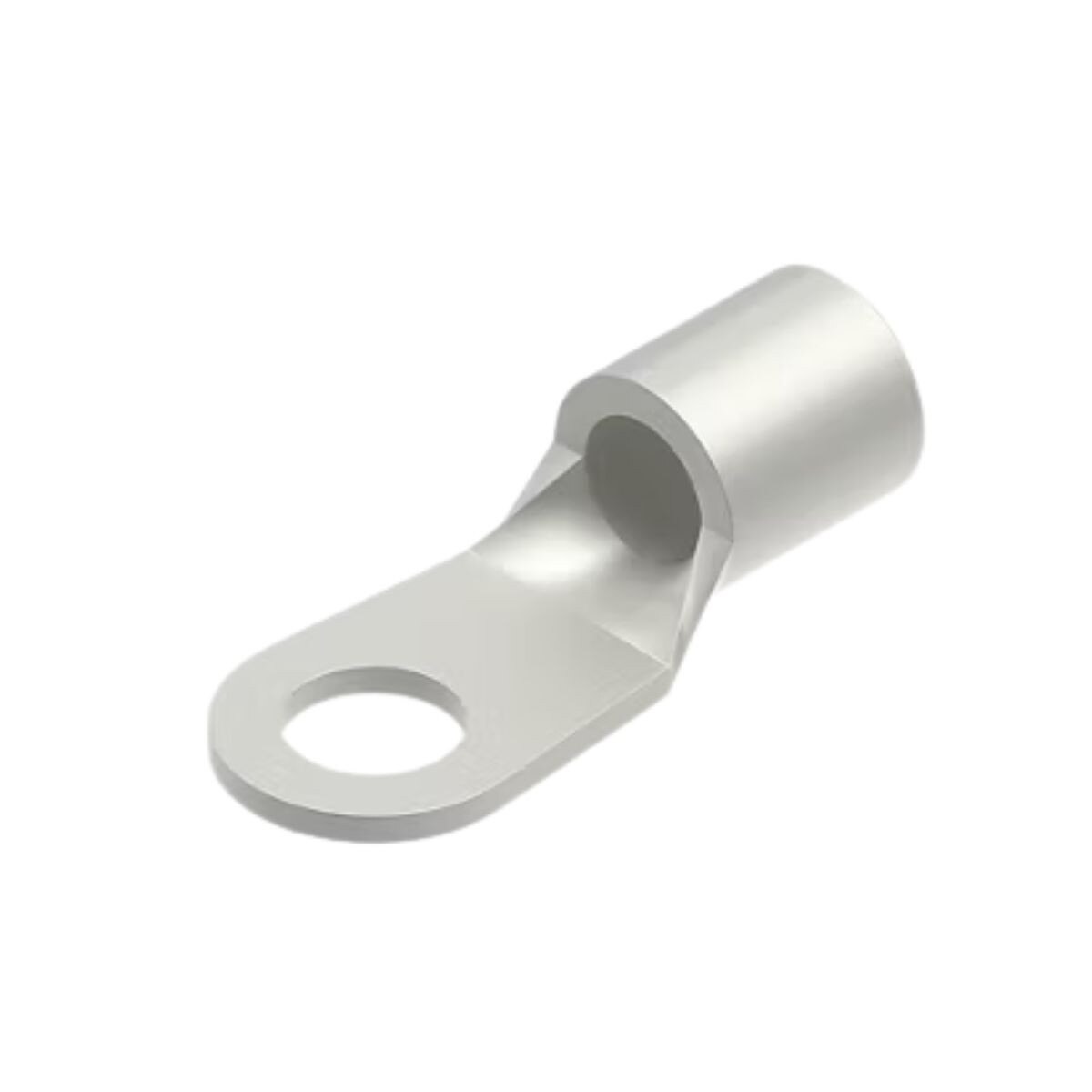

The Molex 191930248 VersaKrimp Ring Tongue Terminal is a heavy-duty solderless terminal designed for 6 AWG wire. Part of the 19193 series, this ring terminal features a closed-brazed barrel for secure crimping and a tin-plated contact for reliable conductivity and corrosion resistance. UL and CSA certified, it supports a stud size of 1/4" (M6) and is ideal for high-current applications.
Key Specifications
- Manufacturer: Molex
- Product Line: VersaKrimp
- Series: 19193
- Part Number: 191930248
- Product Type: Ring Terminal
- Wire Size: 6 AWG (16.00 mm²)
- Wire Insulation Diameter: 9.10 mm max
- Stud Size: 1/4" (M6)
- Barrel Type: Closed – Brazed
- Termination Method: Crimp or Compression
- Insulation: None
- Contact Material: Copper
- Plating: Tin
- Operating Temperature: -65°C to +105°C
- Flammability Rating: UL 94V-0
- Certifications: UL E32244, CSA LR18689
