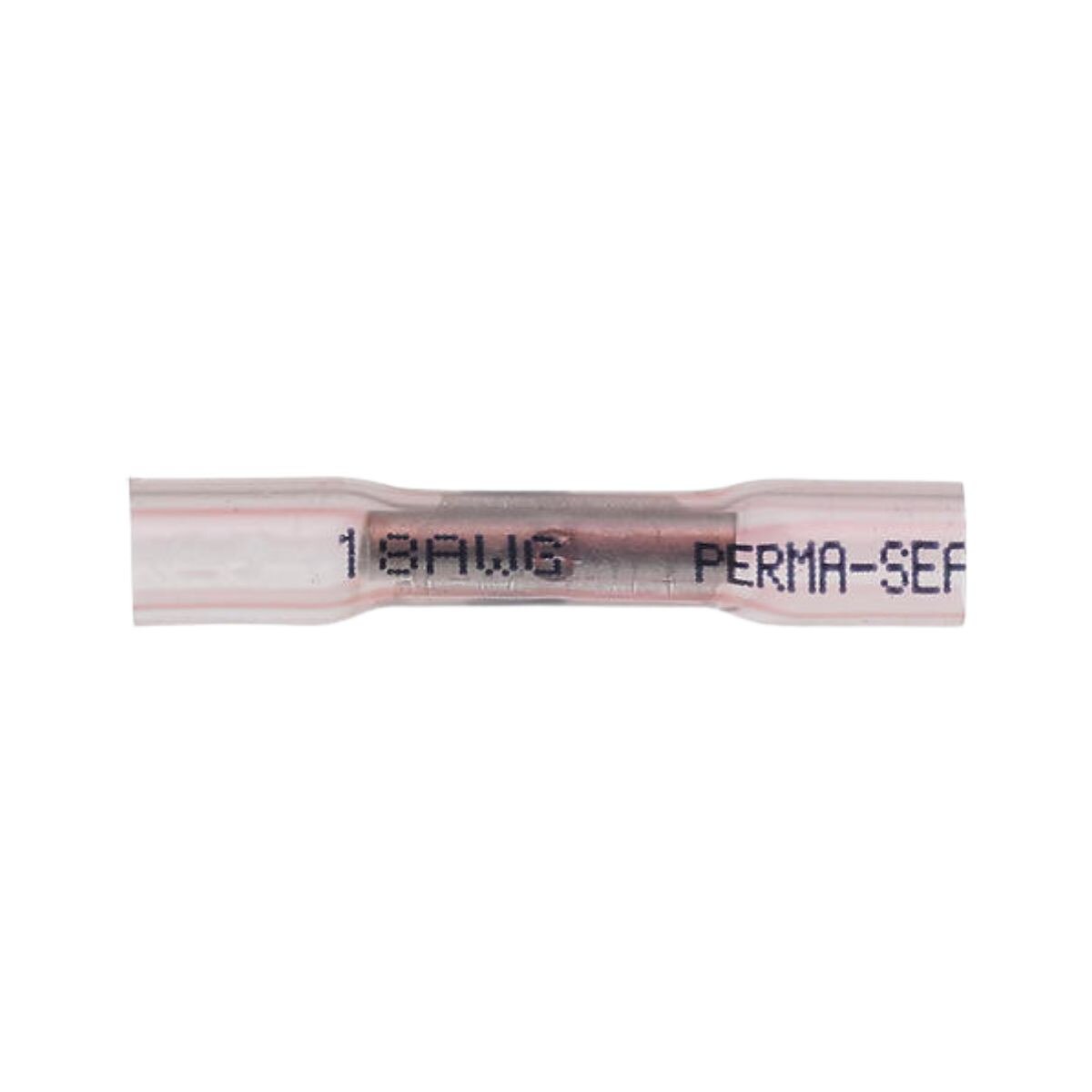

Molex Perma-Seal 191640013 – Butt Splice, 22–18 AWG, Red NiAc
Details
The Molex 191640013 Perma-Seal Butt Splice is a high-performance solderless terminal designed for 22–18 AWG wire. Part of the 19164 series, this splice features a closed barrel for secure crimping and a NiAc (nylon adhesive-lined) insulation for enhanced environmental sealing and strain relief. The tin-plated copper contact ensures excellent conductivity and corrosion resistance. Rated for 600V and operating temperatures from -55°C to +125°C, this splice is UL and CSA certified for demanding applications.
Key Specifications
- Manufacturer: Molex
- Product Line: Perma-Seal
- Series: 19164
- Part Number: 191640013
- Product Type: Butt Splice
- Wire Size: 22–18 AWG
- Insulation: NiAc (Red)
- Barrel Type: Closed
- Termination Method: Crimp
- Contact Material: Copper
- Plating: Tin
- Voltage Rating: 600V
- Operating Temperature: -55°C to +125°C
- Certifications: UL E32244, CSA LR18689
