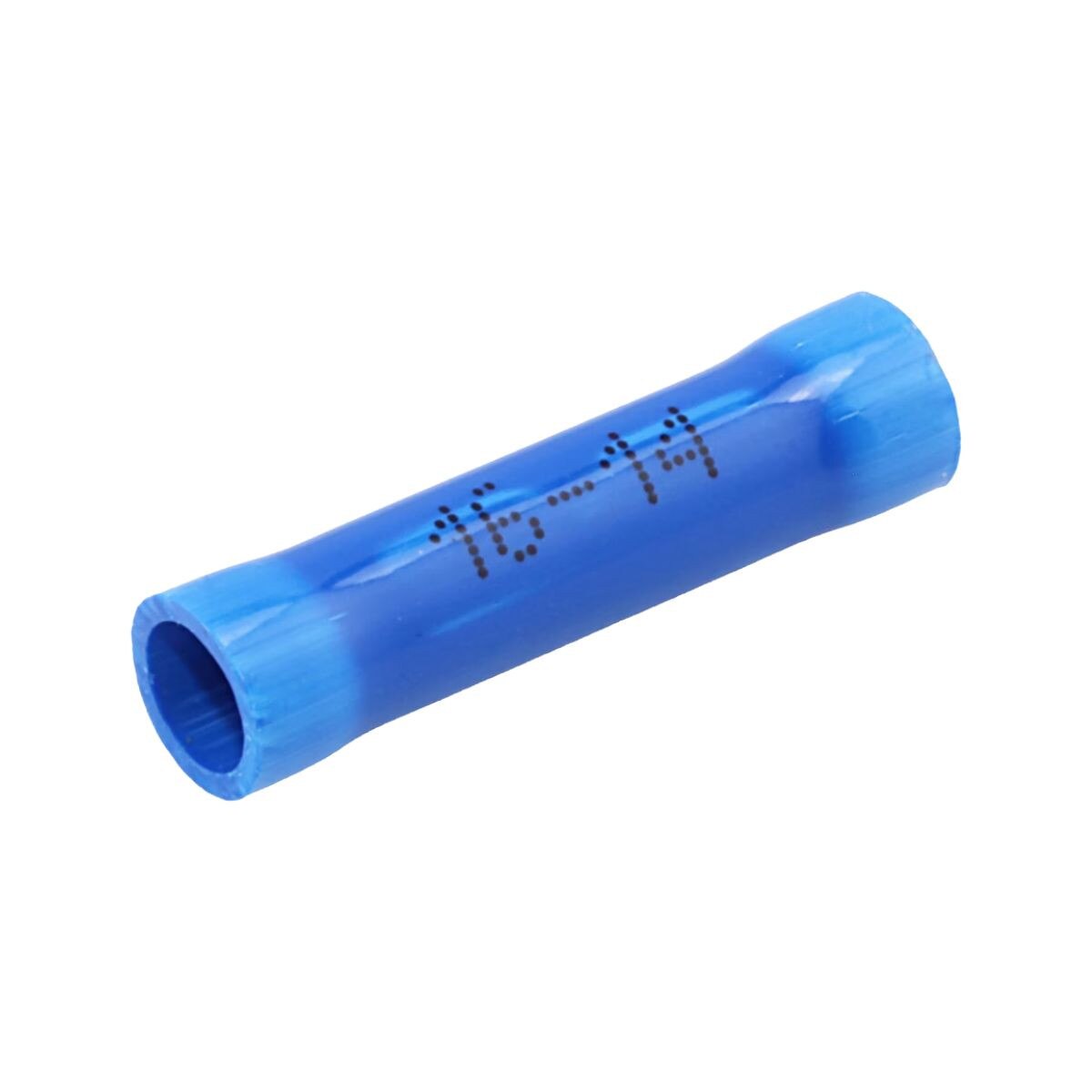

Molex InsulKrimp 191540015 – Butt Splice, 16–14 AWG, Blue PVC

The Molex 191540015 InsulKrimp Butt Splice is a heavy-duty solderless terminal designed for 16–14 AWG wire. Part of the 19154 series, this butt splice features a closed barrel for secure crimping and blue PVC insulation for added protection and strain relief. The tin-plated copper contact ensures reliable conductivity and corrosion resistance. UL and CSA certified, this terminal is rated for up to 600V and operates in temperatures from -40°C to +105°C.

Key Specifications

• Manufacturer: Molex
• Product Line: InsulKrimp
• Series: 19154
• Part Number: 191540015
• Product Type: Butt Splice
• Wire Size: 16–14 AWG (1.30–2.00 mm²)
• Wire Insulation Diameter: 4.45 mm max
• Barrel Type: Closed
• Termination Method: Crimp or Compression
• Insulation: PVC (Blue)
• Contact Material: Copper
• Plating: Tin
• Voltage Rating: 600V
• Operating Temperature: -40°C to +105°C
• Flammability Rating: UL 94V-0
• Certifications: UL E32244, CSA LR18689
