Molex InsulKrimp 190050010 – Coupler, Female, 12–10 AWG, Nylon, Closed Barrel
Details

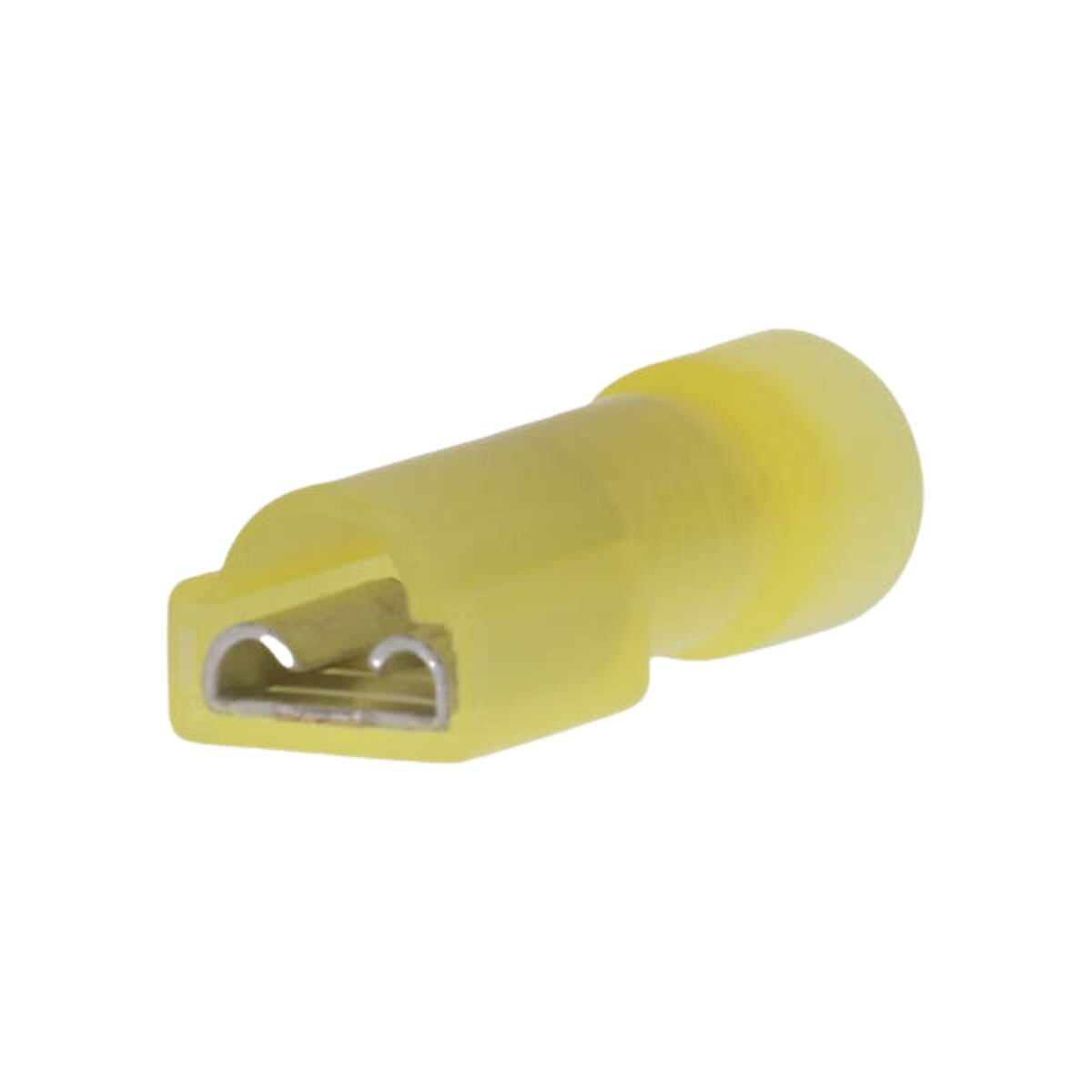

The Molex 190050010 InsulKrimp Fully Insulated Coupler is a female quick disconnect terminal designed for 12–10 AWG wire. Part of the 19005 series, this solderless terminal features a closed barrel for crimp termination and a yellow nylon insulation for electrical isolation and flame resistance. The tin-plated brass contact ensures reliable conductivity and mechanical strength. UL and CSA certified for dependable performance.
Key Specifications
- Manufacturer: Molex
- Product Line: InsulKrimp
- Series: 19005
- Part Number: 190050010
- Product Type: Female Quick Disconnect
- Wire Size: 12–10 AWG (2.00–3.30 mm²)
- Barrel Type: Closed
- Termination Method: Crimp
- Insulation: Nylon (Yellow)
- Contact Material: Brass
- Plating: Tin (2.540µm min)
- Orientation: Straight
- Voltage Rating: 600V
- Operating Temperature: -65°C to +105°C
- Flammability Rating: UL 94V-2
- Certifications: UL E79133, CSA LR18689
