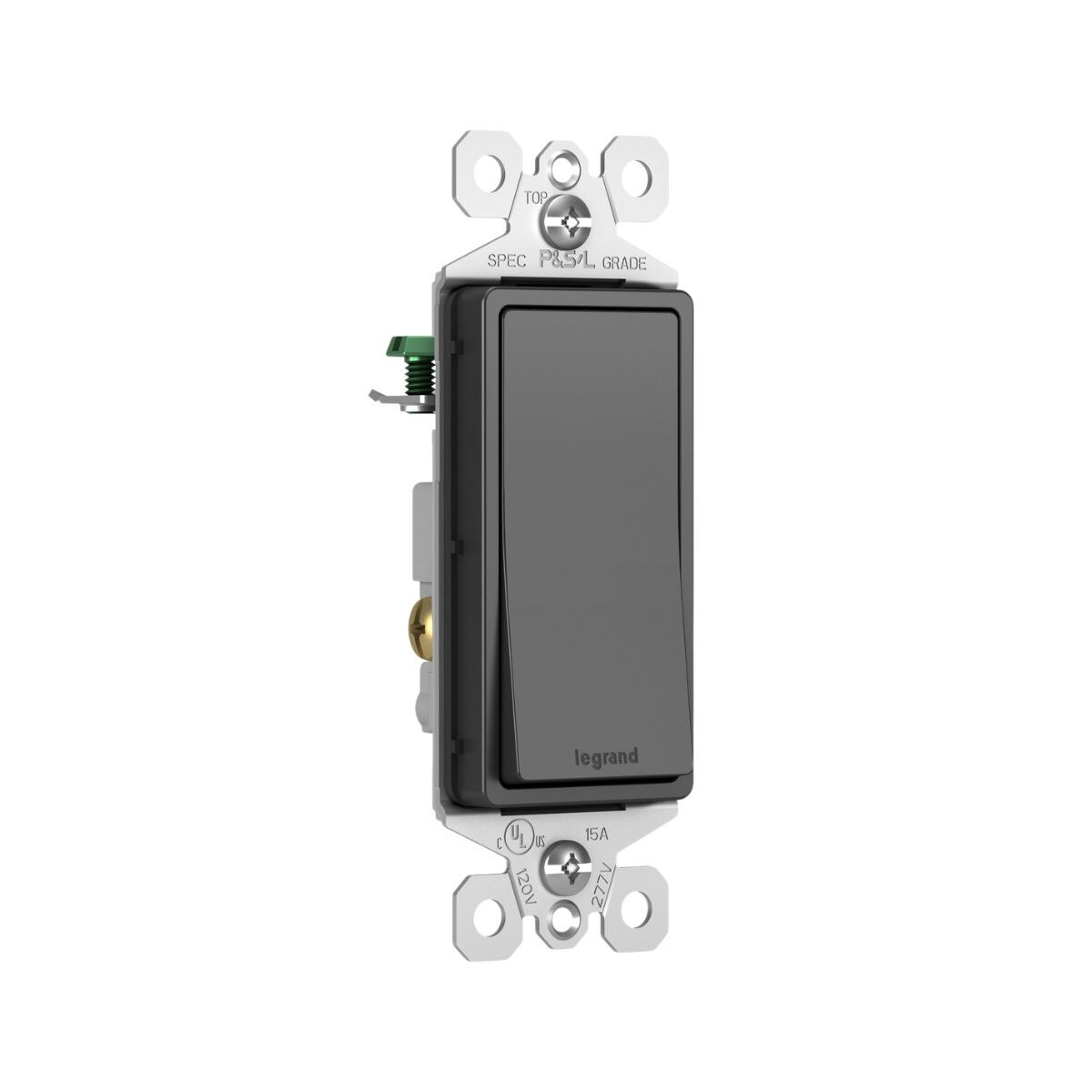

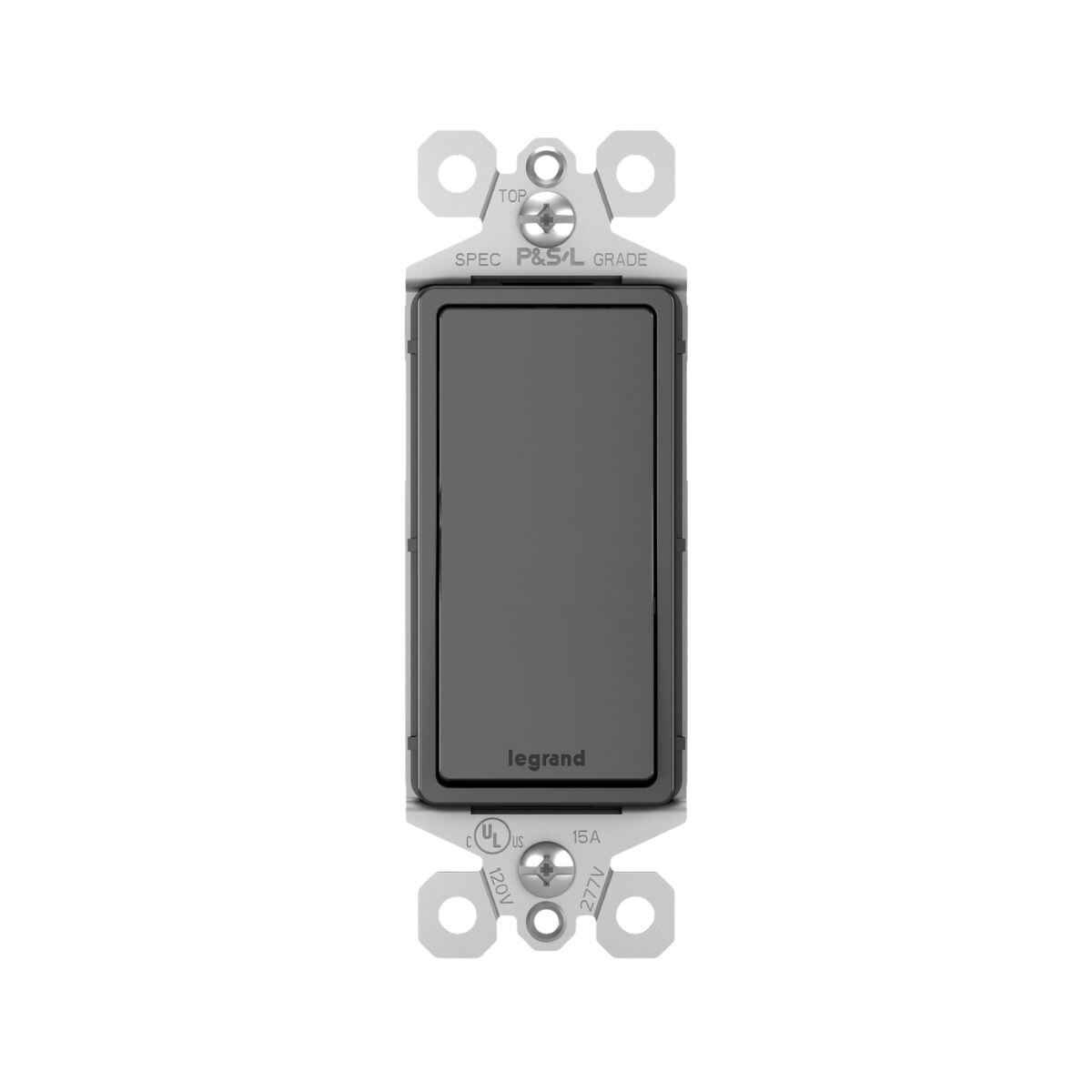

Legrand Pass & Seymour TM870BK – Single-Pole Paddle Switch, 15A, 120/277V, Black
Details

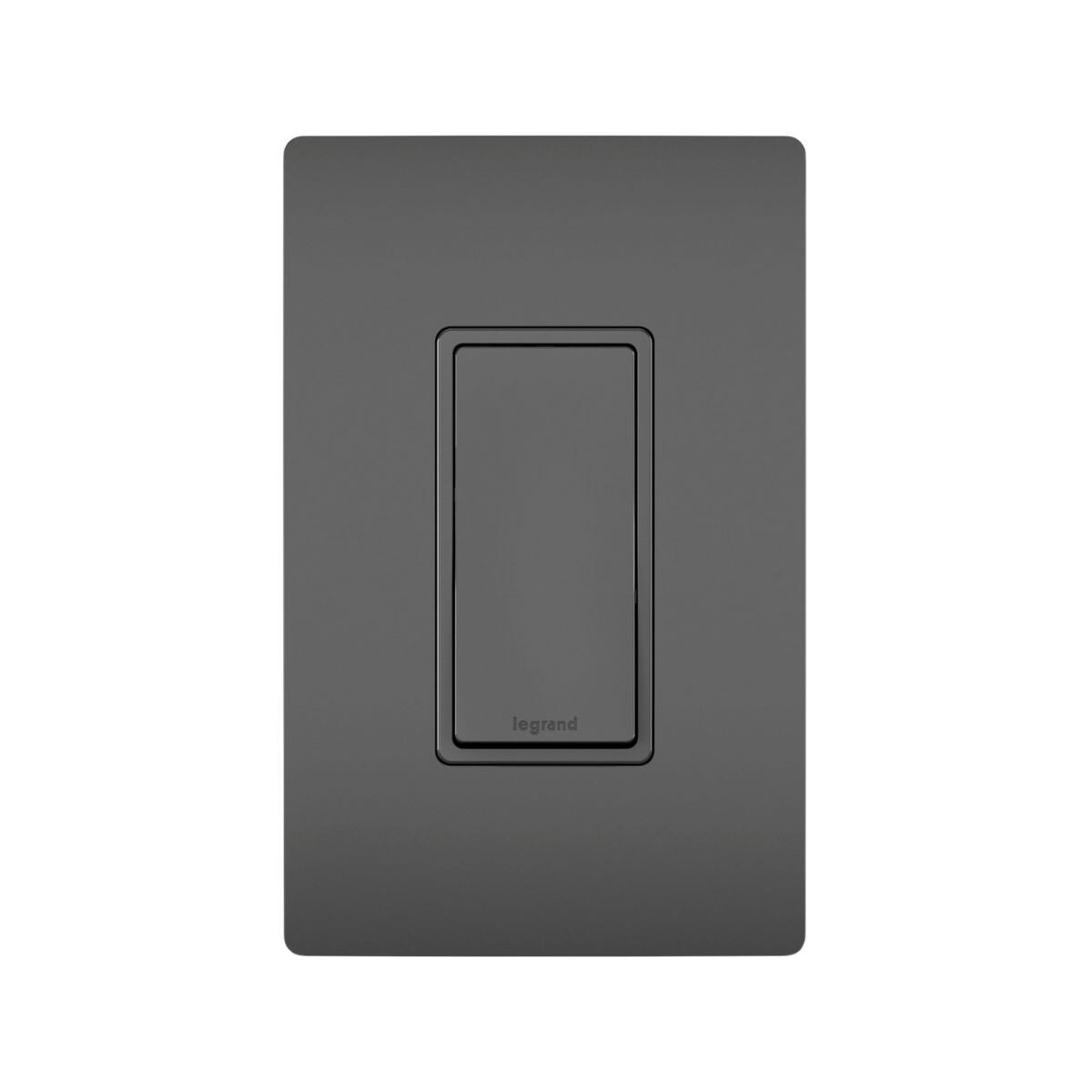

The Legrand Pass & Seymour TM870BK radiant® single-pole switch is a stylish and modern upgrade from standard toggle switches. With a 15 amp rating at 120/277 volts, this decorator paddle switch provides smooth operation and a sleek satin black finish. It features high-impact thermoplastic construction, back and side wire terminals, and is designed for both commercial and residential environments. Compatible with screwless radiant® wall plates (sold separately).
Key Specifications
- Manufacturer: Legrand
- Product Line: Pass & Seymour
- Series: radiant® Collection
- Part Number: TM870BK
- Product Type: Paddle Switch
- Switch Type: Single-Pole
- Amperage Rating: 15A
- Voltage Rating: 120/277V
- Load Compatibility: CFL, LED, Fluorescent, Incandescent, Halogen, Xenon, Universal
- Material: High-Impact Thermoplastic
- Color: Black
- Finish: Satin
- Wiring Method: Back and Side Wire
- Wire Connection Type: Push Wire, Wire Terminal
- Terminal Accommodation: #14 AWG – #10 AWG
- Mounting Style: Wall Box
- Wall Plate Included: No
- Indoor/Outdoor: Indoor
- Special Features: Screwless wall plate compatible, narrow back body, captivated mounting screws, fast installation
- Dimensions: 1.43" W × 4.19" H × 1.27" D
- Certifications: UL Listed, cULus Listed
