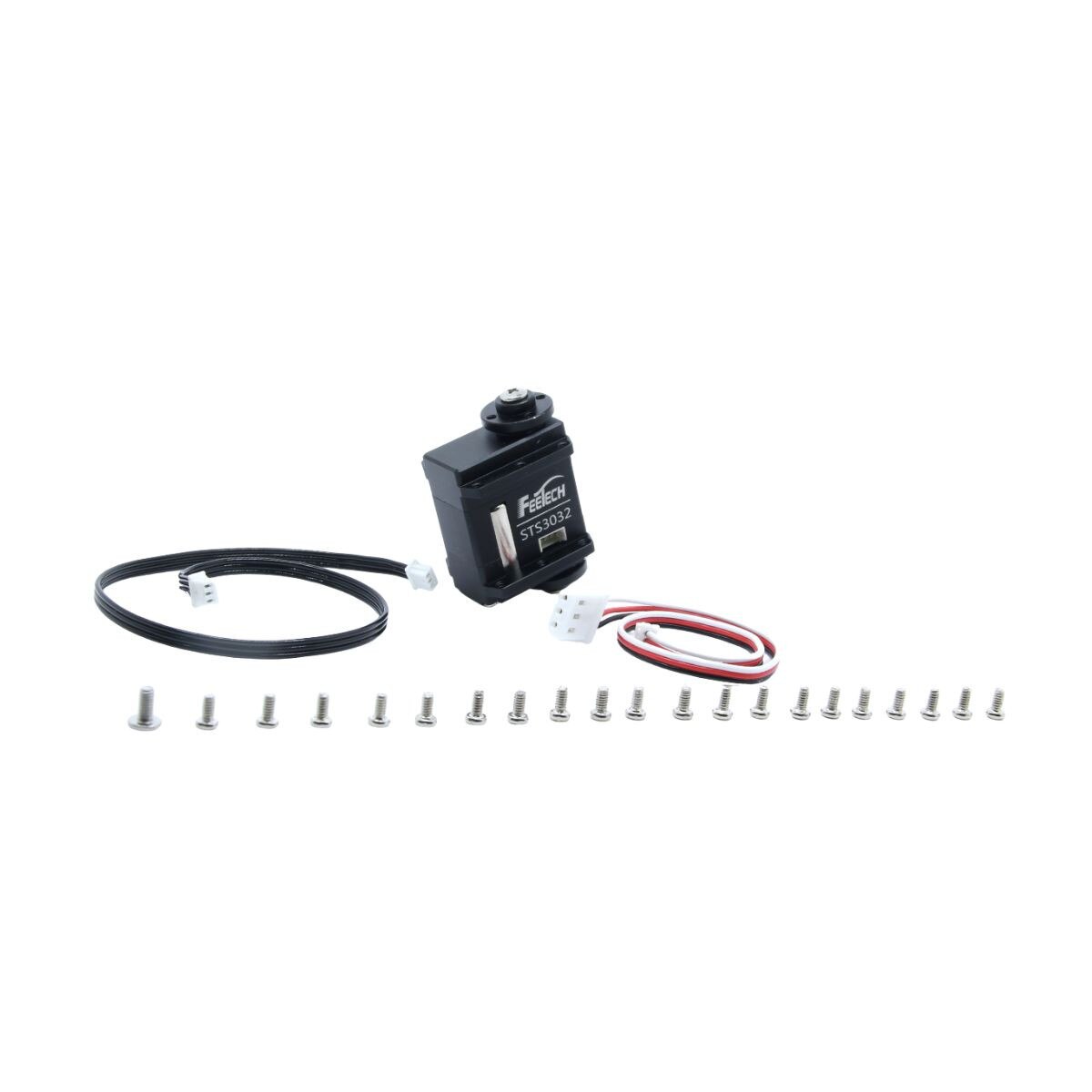

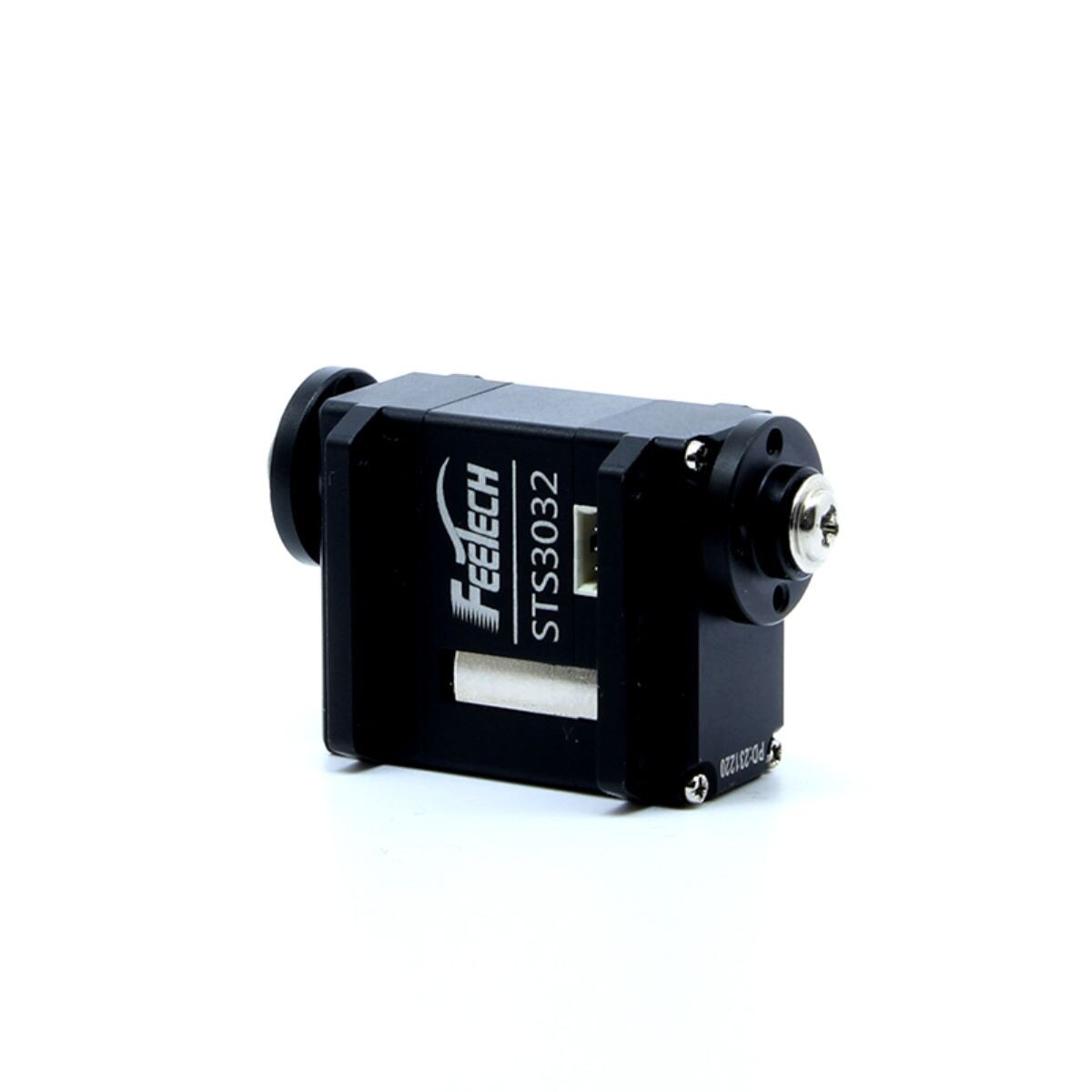

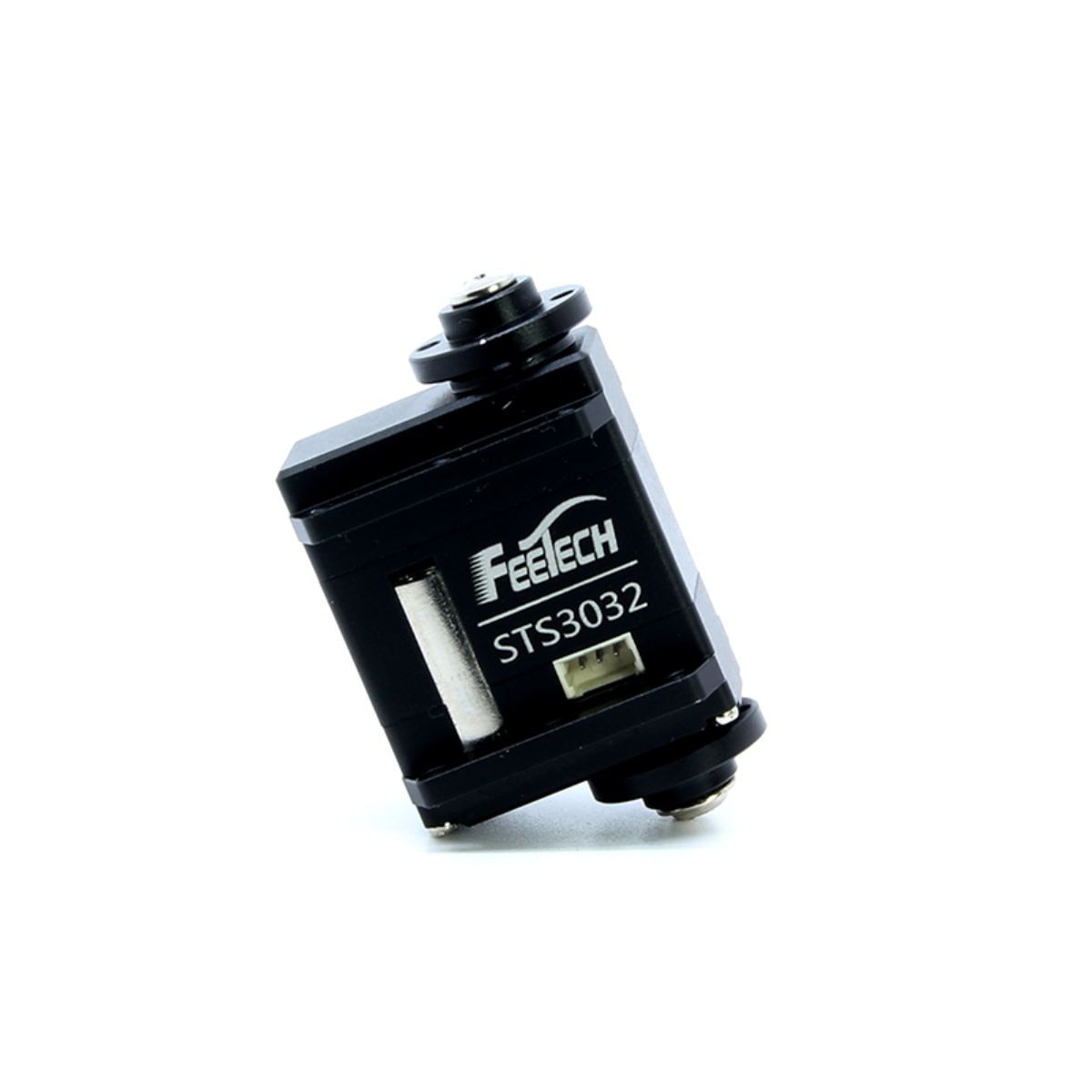

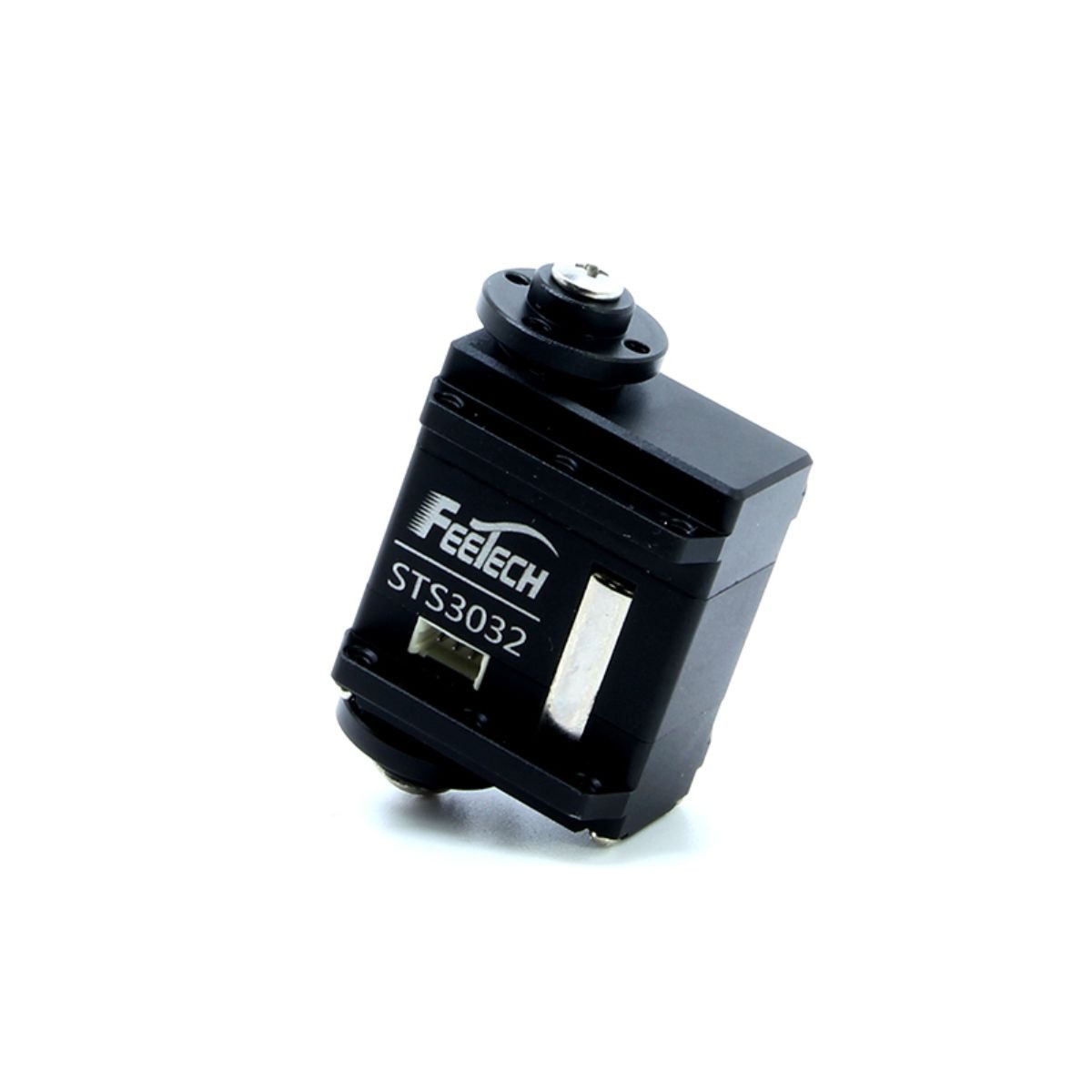

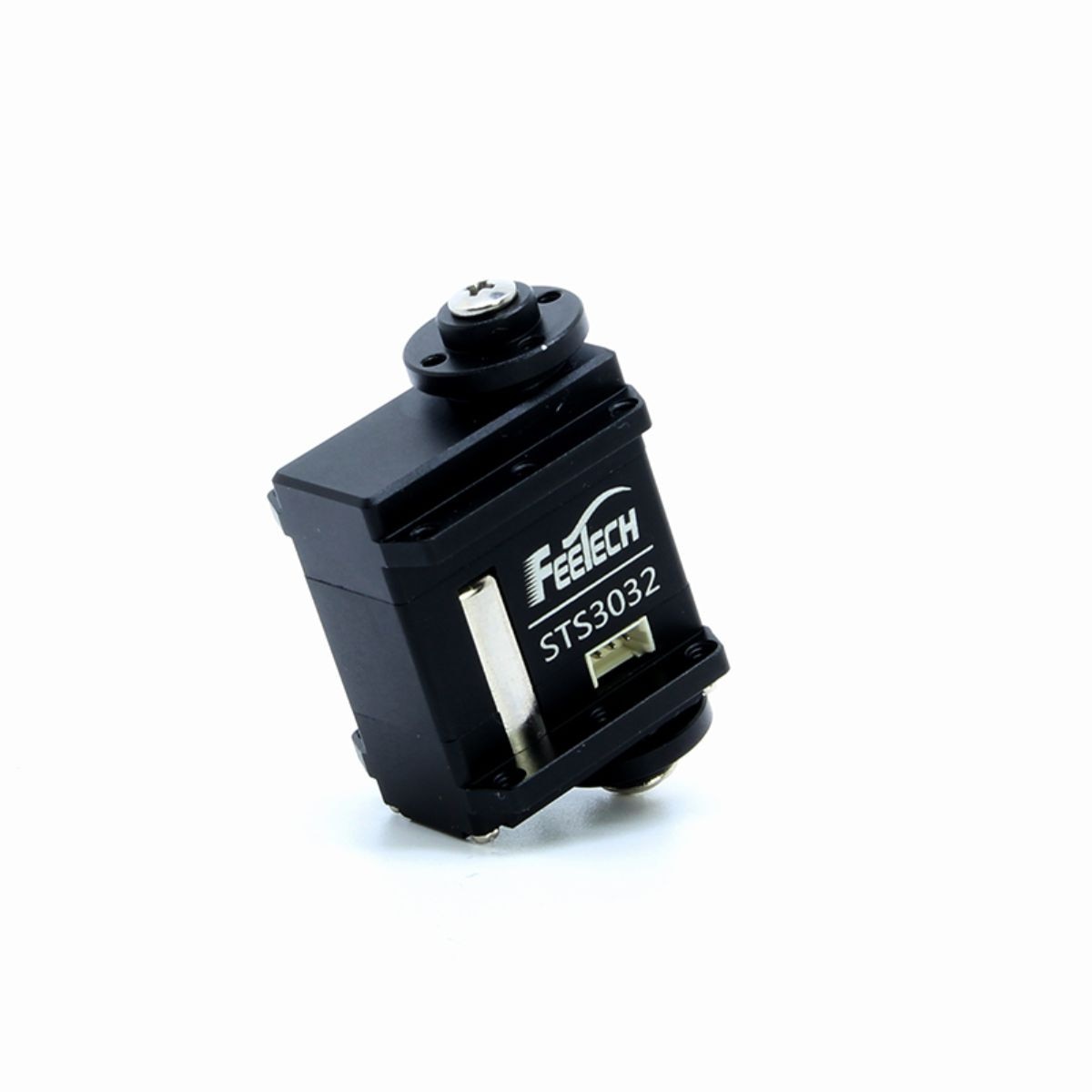

STS3032 4.5kg Double Shaft Compact Servo

Double-shaft variant of the compact STS3032. Same 23mm × 12mm × 27.5mm size with dual output shafts for mounting mechanisms on both sides.

Specifications

• Manufacturer: FEETECH
• Model: STS3032
• SKU: ST-3032-C036
• Stall Torque: 3.5kg.cm @ 4.8V | 4.5kg.cm @ 6.0V
• Speed: 0.11sec/60° @ 4.8V | 0.09sec/60° @ 6.0V
• Dimensions: 23mm × 12mm × 27.5mm
• Weight: ~25g
• Voltage Range: 4.8V - 6.0V
• Communication: TTL Serial Bus (Digital Packet)
• Encoder: 12-bit Magnetic
• Shaft: Double-shaft (dual output)
• Gear Type: Metal
• ID Range: 1-253
• Baud Rate: 115200 (default)
• Feedback: Position, Speed, Load, Voltage

Applications

• Symmetrical mechanism designs
• Dual-linkage animatronics
• Pan-tilt systems
