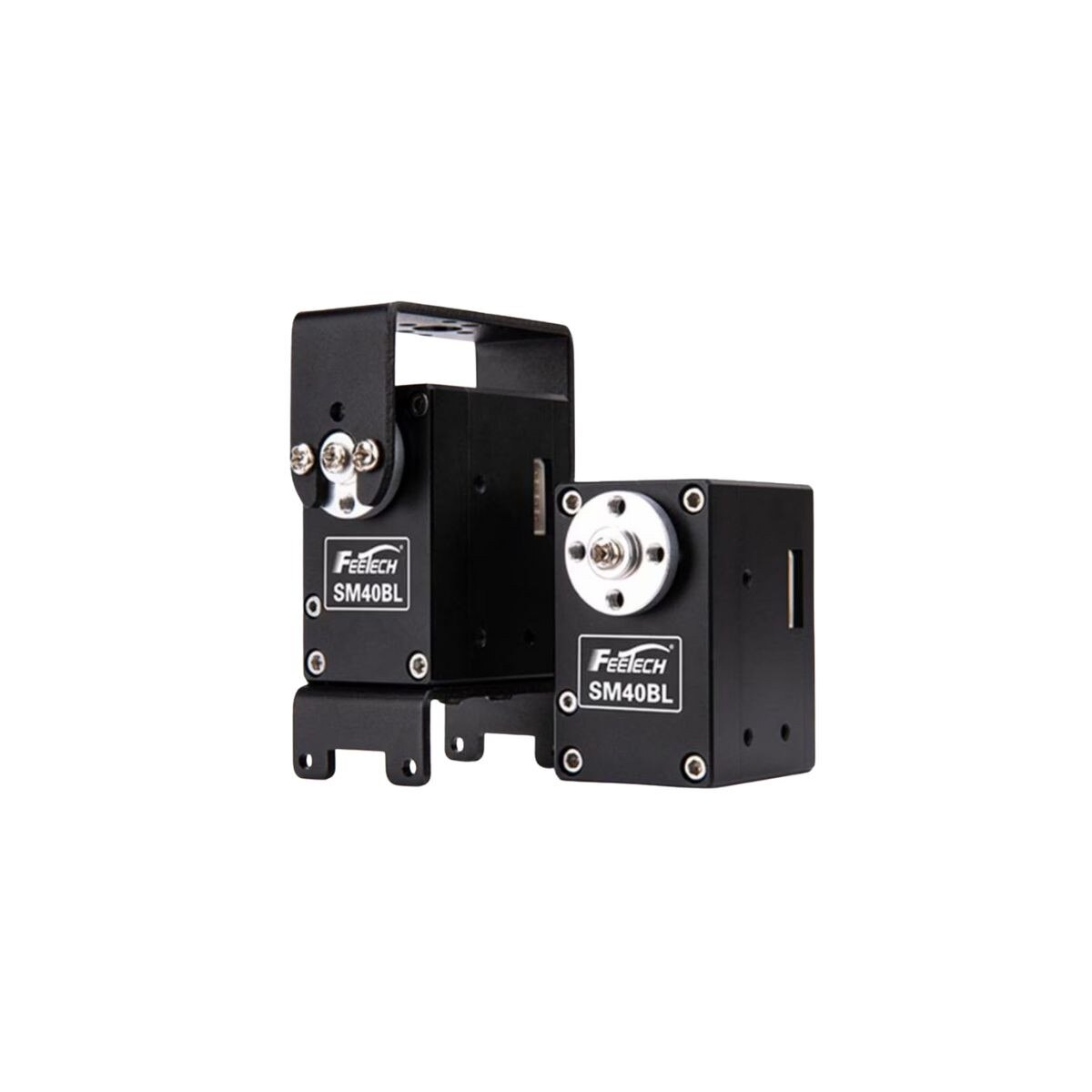

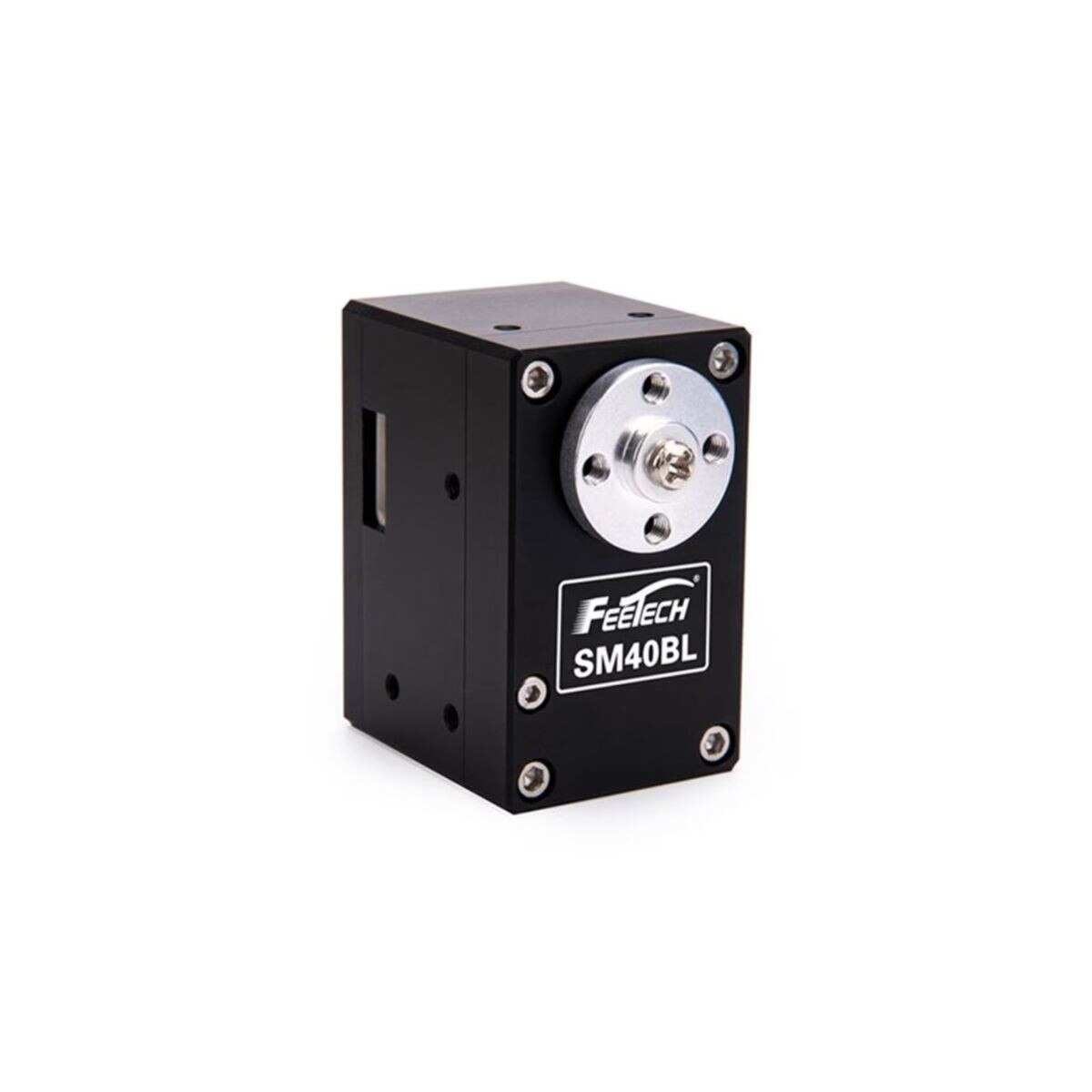

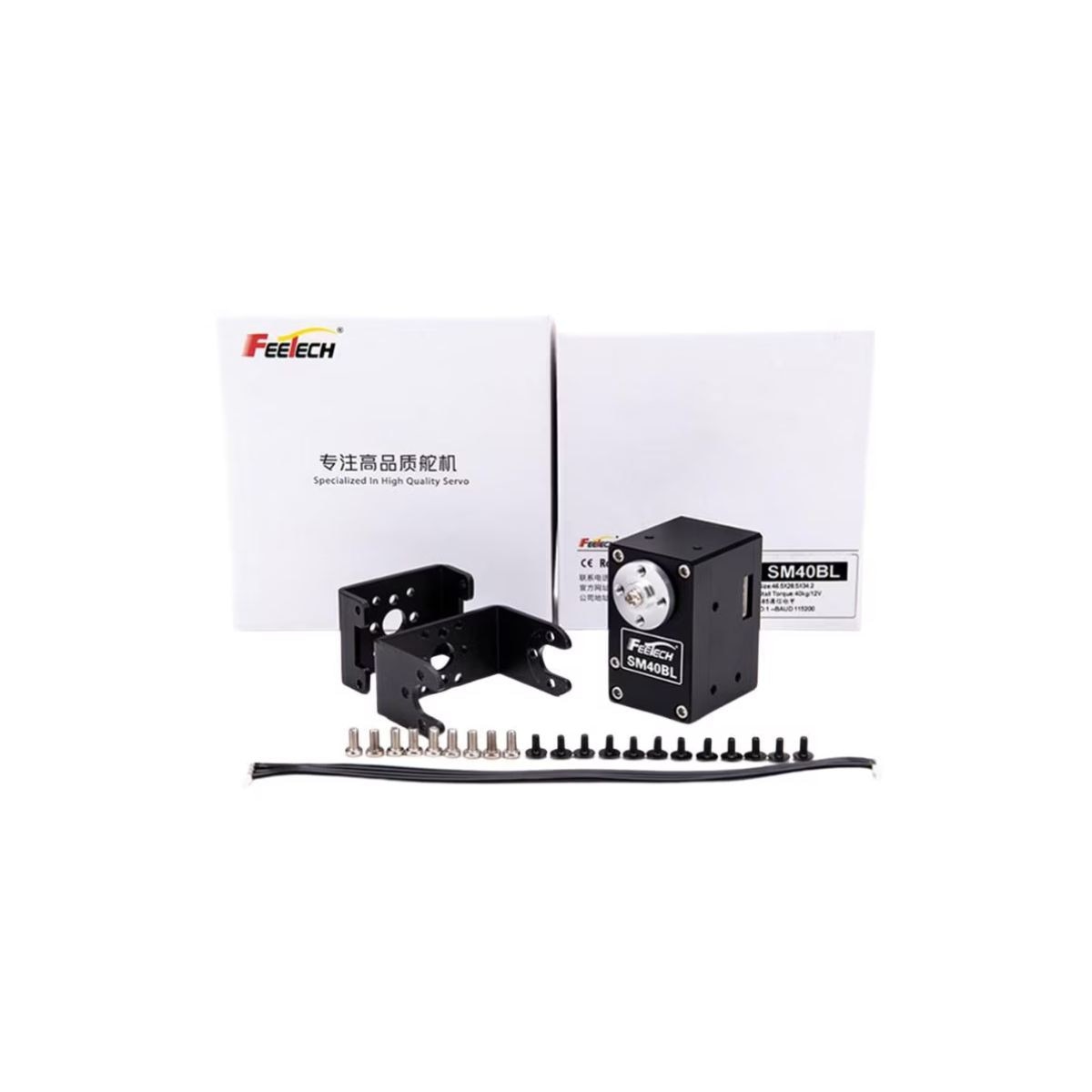

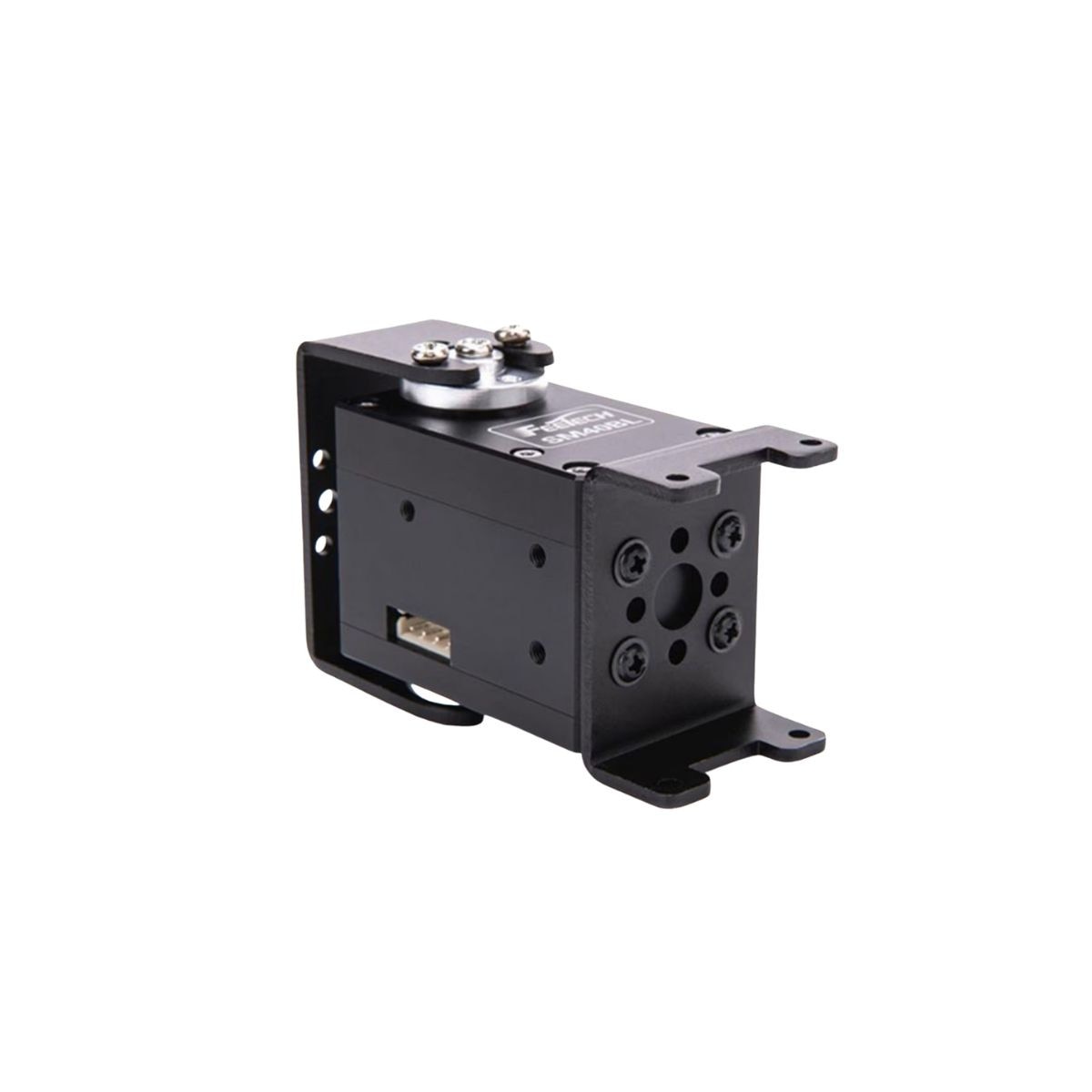

SM40BL 40kg Brushless RS485 Servo

Brushless RS485 servo delivering 40kg torque at 12V. Brushless motor provides longer lifespan and higher efficiency. RS485 communication enables cable runs over 100 meters.

Specifications

• Manufacturer: FEETECH
• Model: SM40BL
• SKU: SM-40BL-C001
• Stall Torque: 40kg @ 12V
• Dimensions: 46.5mm × 28.5mm × 34.2mm
• Operating Voltage: 12V
• Communication: RS485 Serial Bus
• Motor Type: Brushless DC
• Baud Rate: 115200 (default)
• Default ID: 1
• Encoder: Magnetic with feedback
• Modes: Position, Speed, Torque control
• Feedback: Position, Speed, Load, Voltage, Temperature
• Protection: Overload, Overcurrent, Overvoltage, Overheat

Applications

• AGV/autonomous vehicles
• Industrial automation
• High-duty-cycle robotics
• Large-scale installations
