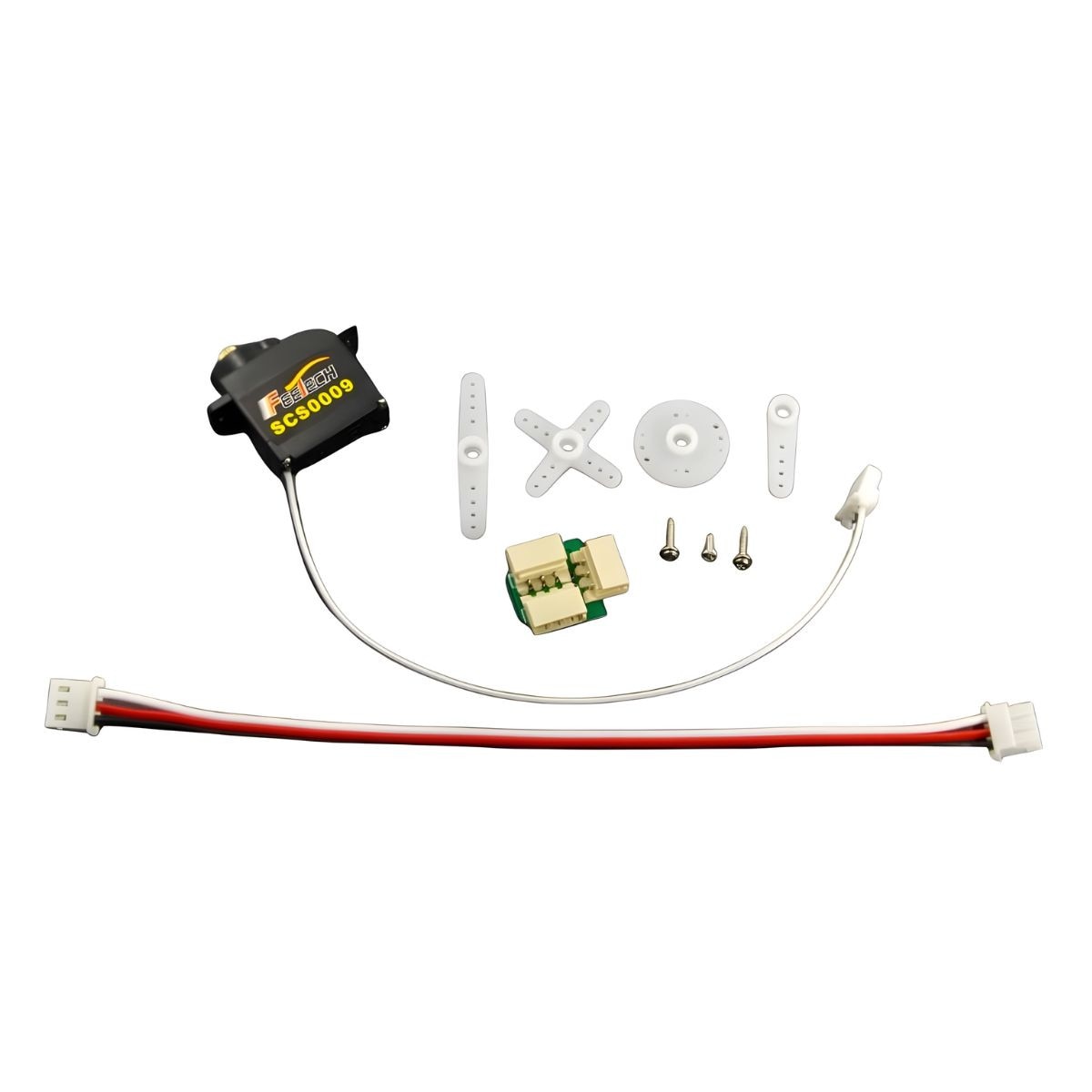

SC009 2.3kg Micro Servo

Entry-level analog micro servo in the standard 9g form factor. 2.3kg.cm torque at 6V with traditional PWM control. Ideal for learning robotics and simple actuation projects.

Specifications

• Manufacturer: FEETECH
• Model: SCS009
• SKU: SC-0090-C001
• Stall Torque: 1.8kg.cm @ 4.8V | 2.3kg.cm @ 6.0V
• Speed: 0.12sec/60° @ 4.8V | 0.10sec/60° @ 6.0V
• Voltage Range: 4.8V - 6.0V
• Control: PWM (Analog)
• Form Factor: 9g Micro

Applications

• Arduino/Raspberry Pi projects
• STEM education kits
• Sensor pan/tilt mounts
• Small grippers and actuators
