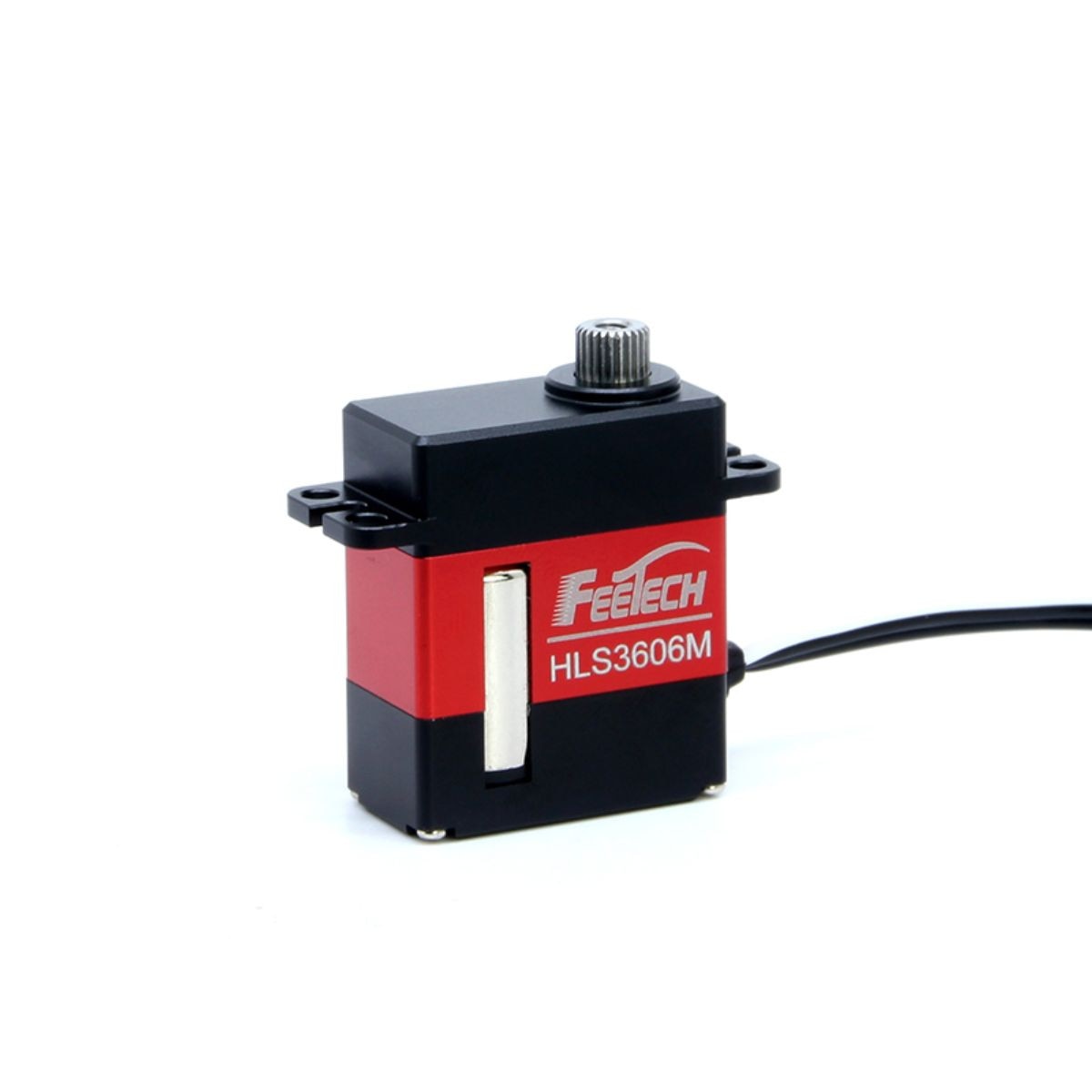

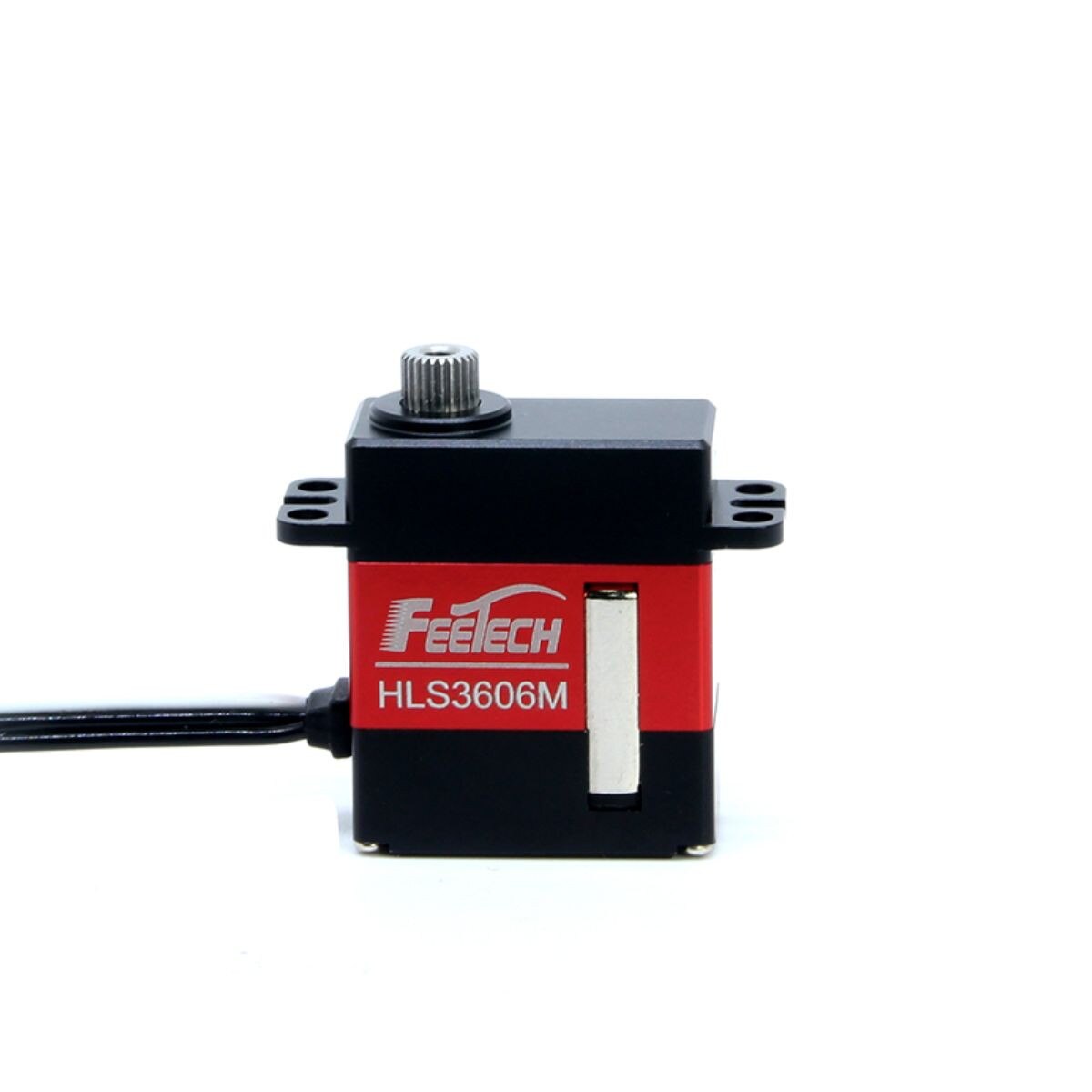

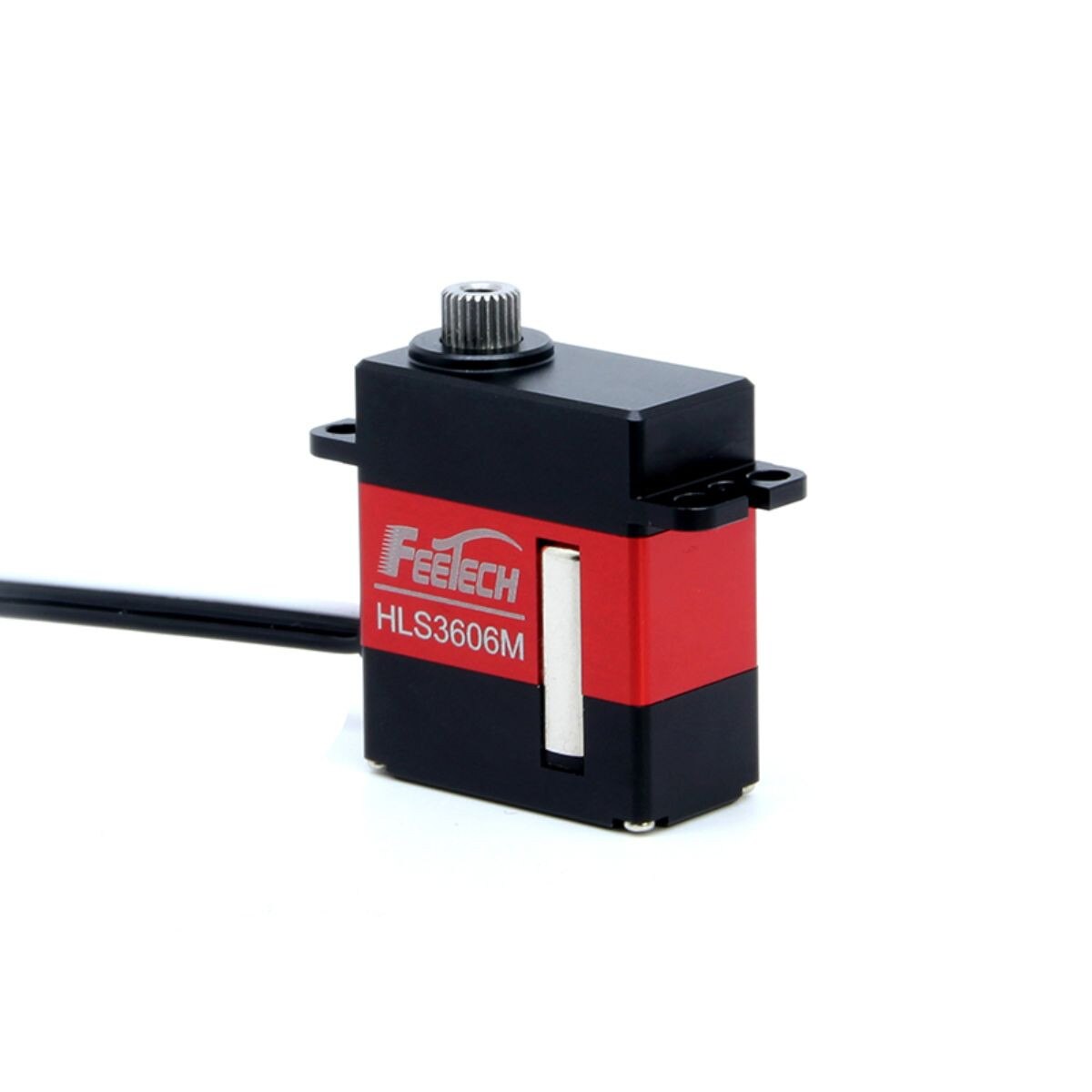

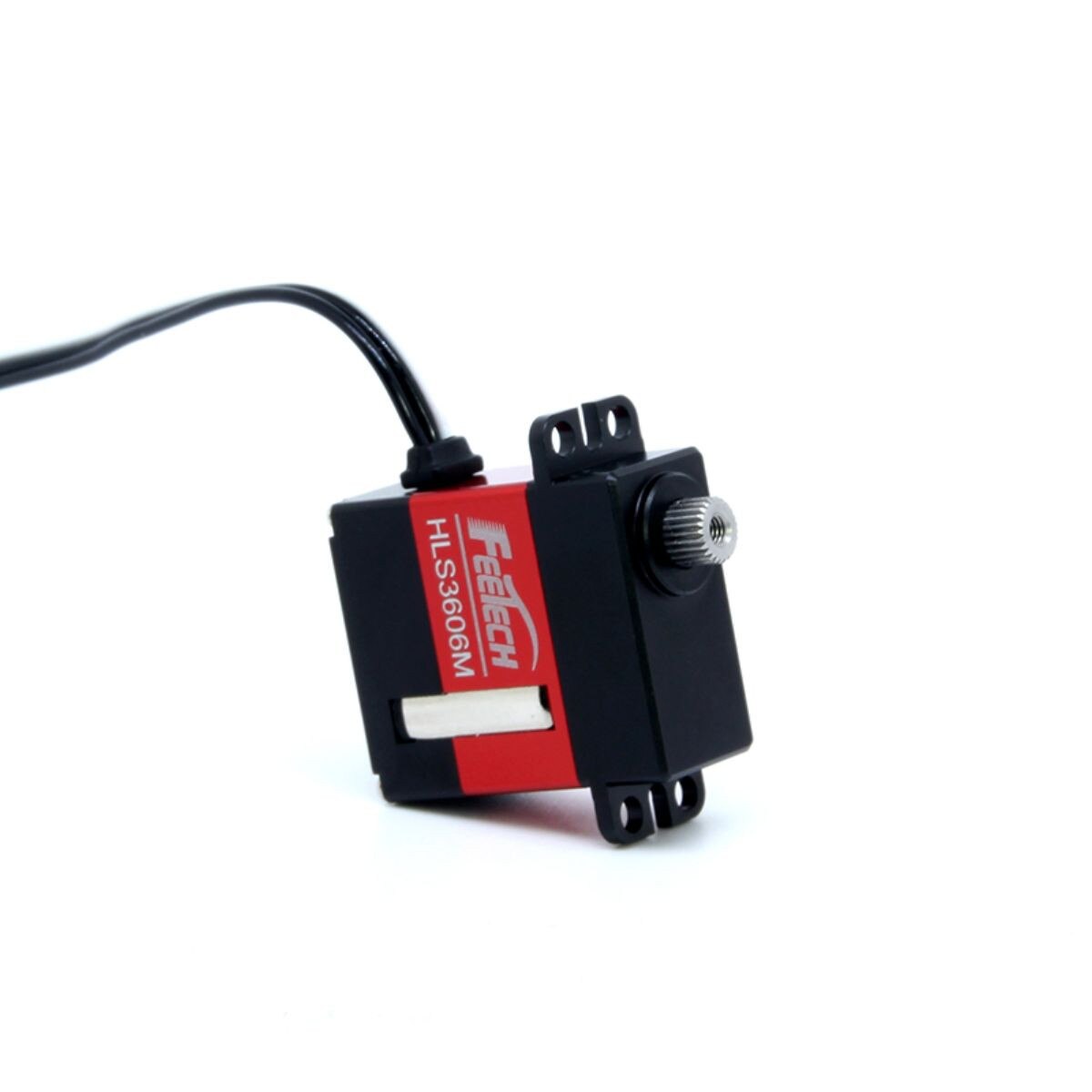

HLS3606M 6kg Constant Force Servo

Constant force servo delivering smooth, consistent torque throughout its range of motion. Ultra-compact 23mm × 12mm × 27.5mm package. Eliminates jerky movement typical of standard servos.

Specifications

• Manufacturer: FEETECH
• Model: HLS3606M
• SKU: HL-3606-C001
• Stall Torque: 4.8kg.cm @ 4.8V | 6.0kg.cm @ 6.0V
• Speed: 0.11sec/60° @ 4.8V | 0.09sec/60° @ 6.0V
• Dimensions: 23mm × 12mm × 27.5mm
• Voltage Range: 4.8V - 6.0V
• Communication: Digital Packet
• Motor Type: Constant Force
• Shaft: Single shaft
• Gear Type: Metal

Applications

• Animatronics and props
• Cosplay costumes
• Art installations
• Smooth motion mechanisms
