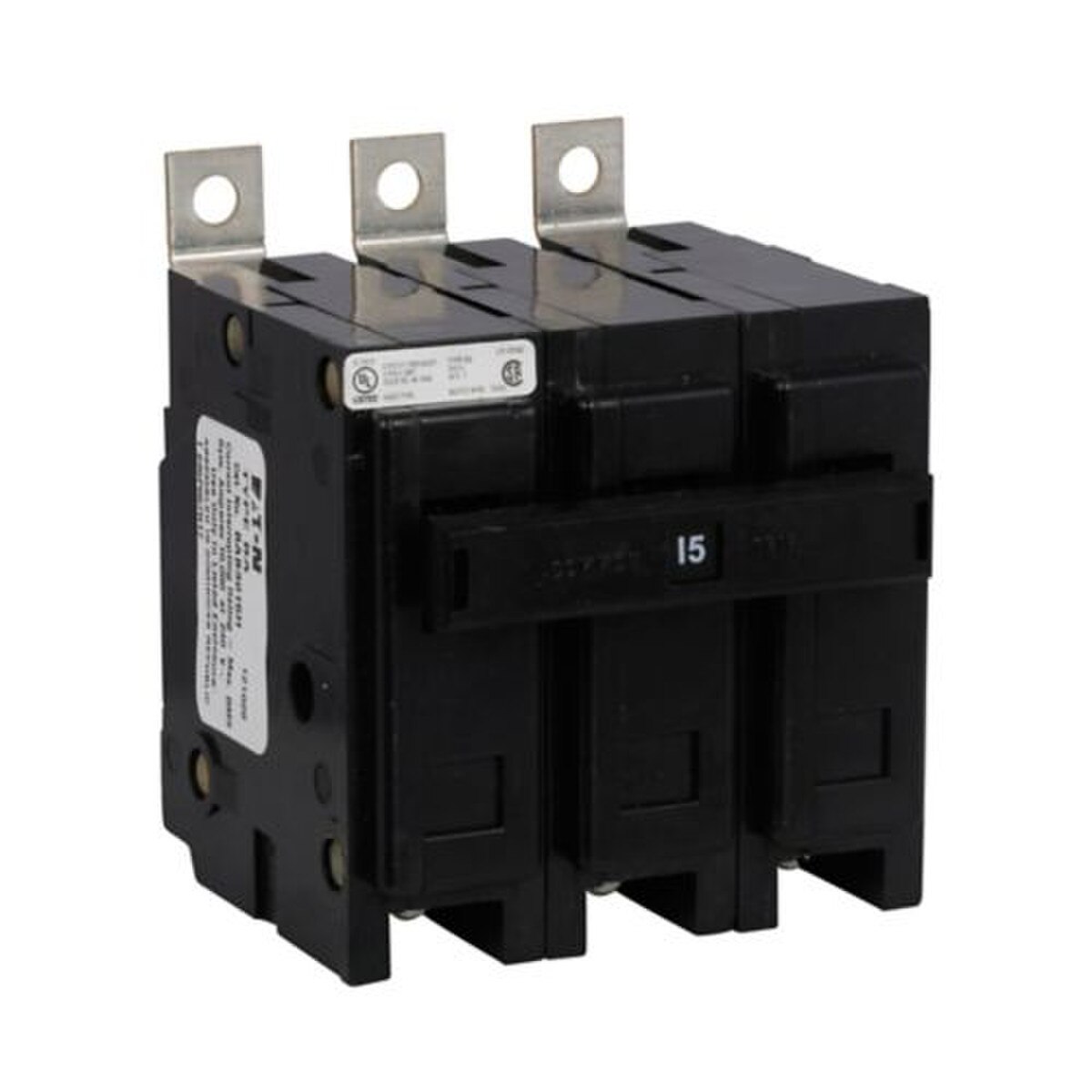

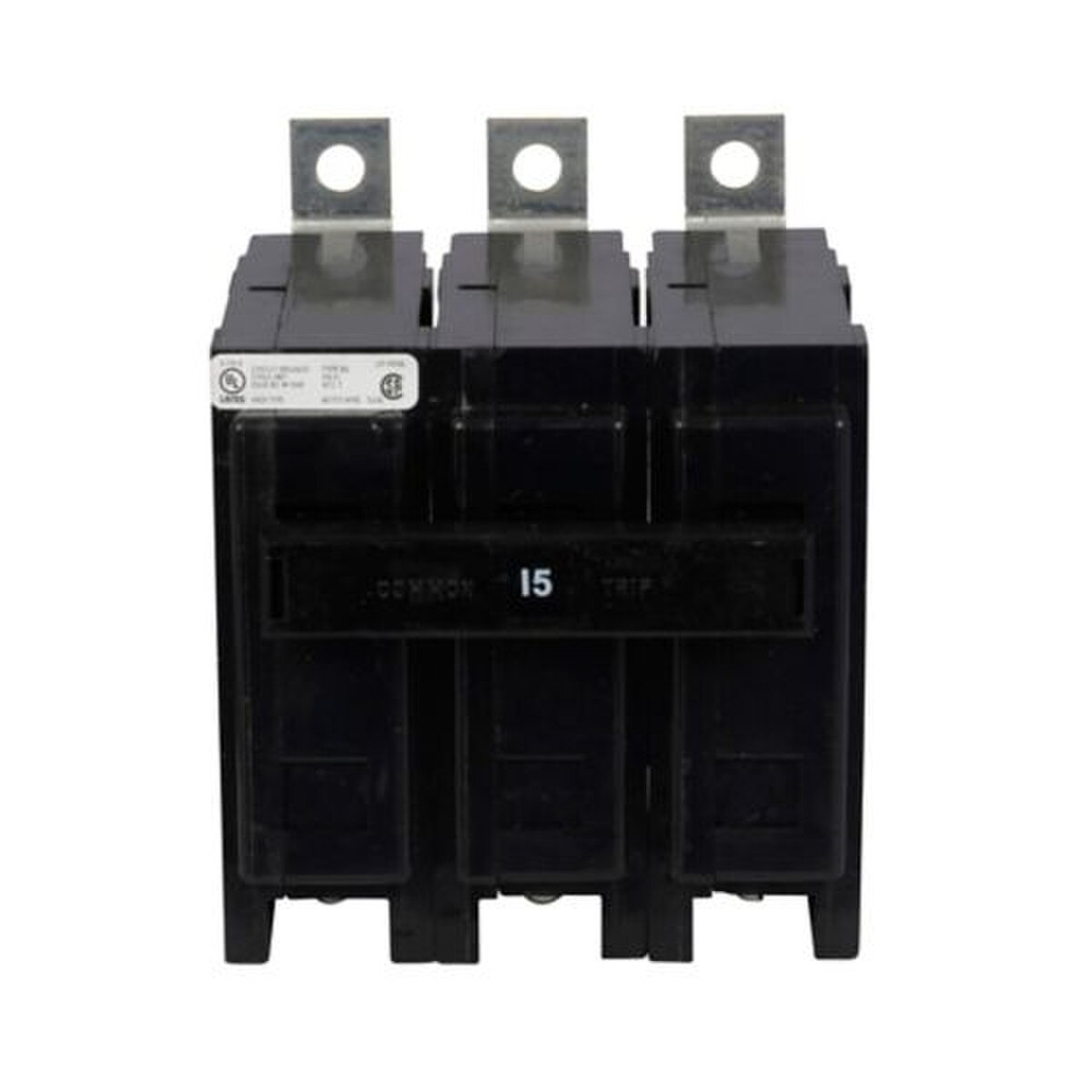

Eaton BAB3015H – 15A Quicklag Circuit Breaker, 3-Pole, 240V, Bolt-On
Details
The Eaton BAB3015H is a 15A Quicklag industrial circuit breaker designed for use in commercial and HVAC systems. It features a thermal-magnetic trip unit, bolt-on mounting, and a non-interchangeable trip mechanism. With a 10 kAIC interrupt rating and 240V voltage rating, this 3-pole breaker is UL Listed and CSA Certified for reliable protection in demanding environments.
Key Specifications
- Manufacturer: Eaton
- Part Number: BAB3015H
- Type: Quicklag Industrial Thermal-Magnetic Circuit Breaker
- Amperage Rating: 15 A
- Interrupt Rating: 10 kAIC
- Voltage Rating: 240 V
- Trip Type: Non-Interchangeable
- Mounting Method: Bolt-on
- Number of Poles: 3
- Special Features: HACR rated
- Dimensions: 3.8" L × 3.2" W × 4.9" H
- Certifications: UL Listed, CSA Certified
